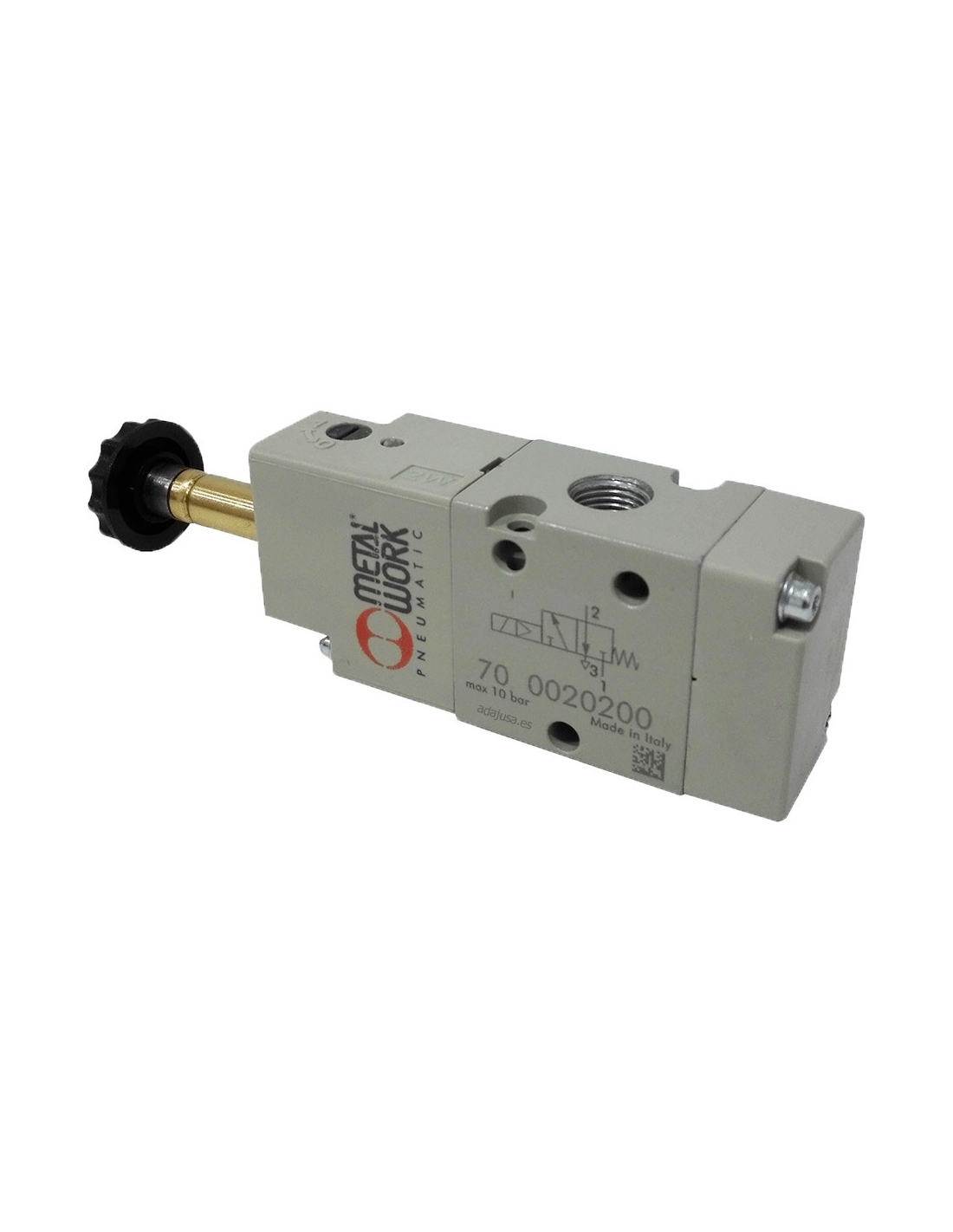

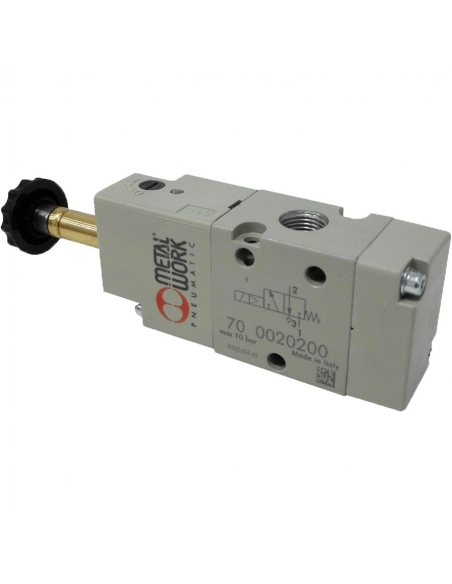

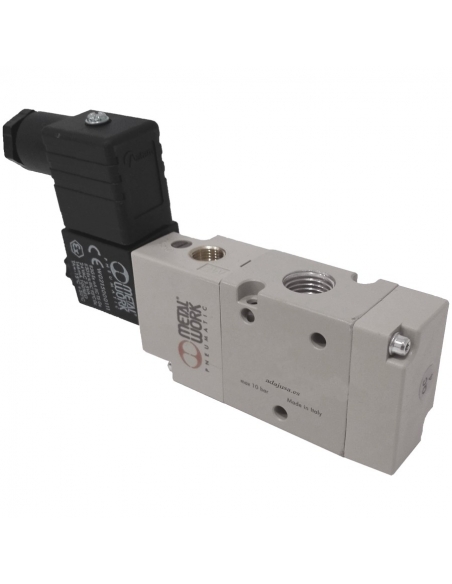

Solenoid valve 3/8 3-way monostable NC 24 Vac - Metal Work

Pneumatic solenoid valve of 3/8 3 ways 2 monostable positions. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

• Valve elector 3/8 3/2 monostable NC
• Coil 24Vac - 3,50 VA
• T22 connector

• Provider: Metal Work
• Solenoid valve reference: 7040020200- SOV C3 SOS NC
• Operating pressure: 2.5 ÷10 bar
• Minimum assist pressure: 2.5 bar
• Operating temperature: -10 ÷ +60
• Nominal diameter: 13.3 mm
• Conductance C Nl/min · bar: 505.52
• B bar/bar critical ratio: 0.32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
• Flow rate at 6 bar ΔP 1 bar Nl/min:2150
• Monostable TRA/TRR at 6 bar ms: 21/72
• Bistable TRA/TRR at 6 bar ms: 18/18
• Coil voltage: 24 Vac
• Power: 3.50 VA
• Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.
