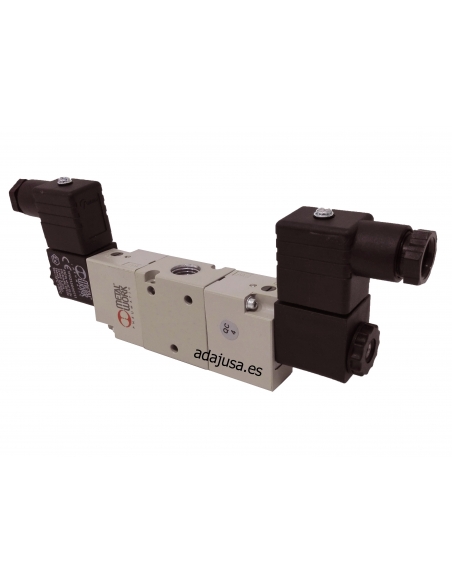

Double solenoid valve 1/8 3/2 ways NC 230 Vac - Metal Work

€112.84 Tax included

€93.26 tax excl.

PK-ED1832230

Solenoid valve 1/8 3/2 way double NC output (normally closed). 220-240 Vac coils

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

2x

Coil for solenoid valve 230VAC Metal Work W0215000131 | ADAJUSA

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

€8.86

2x

Solenoid valve connector size 22

Solenoid valve connector size 22 - Metal Work

€1.44

1x

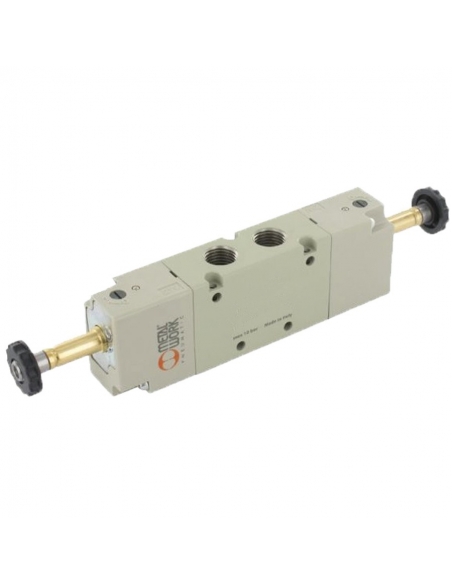

Double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA

Double solenoid valve 1/8 3/2 ways NC - Metal Work

€92.25

No queries yet, leave the first!

Description
Frequently questions

Doublepneumatic solenoid valve 1/8" 3/2 way NC. The solenoid valve is normally closed (NC), i.e. without voltage on the coil, the inlet is not connected to the outlet, i.e. there is no air pressure at the outlet, the outlet is connected to the exhaust of the valve. When the coil is energized, the solenoid valve is activated, there is air circulation between the inlet and the outlet of the solenoid valve .

Coils solenoid valve 220-240Vac 3,5VA and connectors 22 mm.

Delivery includes:

Double solenoid valve 1/8" 3/2 NC
2 Coils 230 Vac - 3,5VA
2 Plastic connectors size 22

Technical characteristics:

Manufacturer Metal Work
Part number: solenoid valve : SOV 28 SOS NC Code: 7010023100
Type of threads: G 1/8"
Bistable bar: 2.5 ÷ 10
Minimum assistance pressure bar: 2.5
Working temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min - bar: 121,43
Critical ratio b bar/bar: 0,32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
TRA/TRR monostable at 6 bar ms: 15/35
TRA/TRR bistable at 6 bar ms: 20/20
Voltage tolerances %: -10 ÷ +15
Class of isolation: F 155
Rated voltage: 230 Vac.
Rated power: 3,5VA.

Equipment for professional use, install in compliance with the regulations in force at the place of installation.
