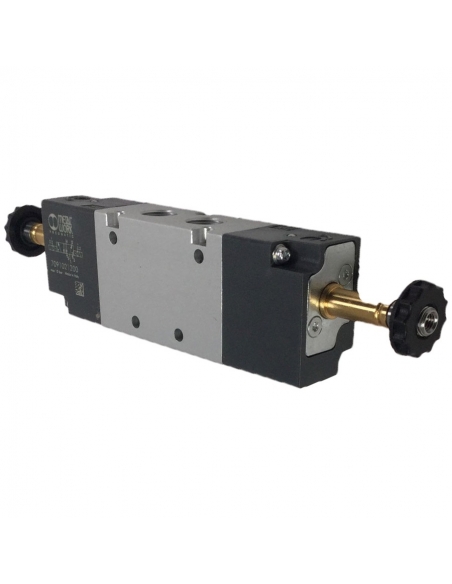

Solenoid valve 1/8 5/2 bistable BASIC - Metal Work - ADAJUSA

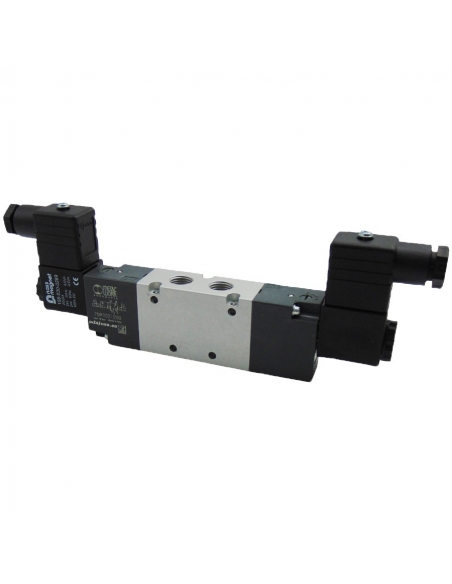

Solenoid valve 1/8 5/2 bistable 230 Vac BASIC - Metal Work

€94.61 Tax included

€78.19 tax excl.

Solenoid valve 1/8 5 way bistable with 230 Vac connectors and coils


Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve 1/8 5 way bistable. With 230 Vac 3,5 VA coils and plastic connectors

Delivery includes:

  • 1/8 5/2 bistable solenoid valve 1/8 5/2
  • 2 Coils 230 Vac 3,5 VA
  • 2 Plastic connectors size 22

Technical characteristics:

  • Manufacturer Metal Work
  • Part No.: Metal Work: ELPN 1/8 5/2 BIS Code: 7090021200
  • Type of threads: G 1/8"
  • Monostable bar: 1 to 10
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min - bar: 121.43
  • Critical ratio b bar/bar: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • TRA/TRR monostable at 6 bar ms: 15/35
  • TRA/TRR bistable at 6 bar ms: 20/20
  • Voltage tolerances %: -10 ÷ +15
  • Class of isolation: F 155
  • Fluid: Filtered air without lubrication.
  • Rated voltage: 220-230 Vac
  • Rated power: 3,5VA

a) Body of the valve: anodized aluminum
b) Controller / End cap: plastic
c) Slide: chemically nickel plated aluminum
d) Spacers: plastic
e) Seals: NBR
f) Pistons: Hostaform
g) Piston seals: NBR
h) Springs: special steel
i) Operator: brass tube - stainless steel core



Material for professional use, install in compliance with the regulations in force at the place of installation. a

* Basic Series: The body is made of anodized aluminum (unpainted) and the controls are in dark gray technopolymer. BASIC valves can be assembled with accessories from other valve families, in particular with 22 mm coils, 8 mm orifice and related connectors, modular bases and the multi-position connectors of the 70 series valves.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

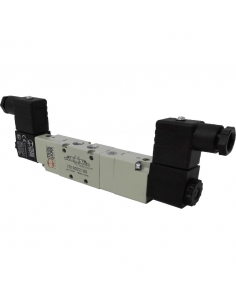

Solenoid valve 1/8 5 ways 3 positions centers pressure 24Vdc - Metal Work - ADAJUSA Solenoid valve 1/8 5 ways 3 positions centers pressure 24Vdc - Metal Work - ADAJUSA 2
