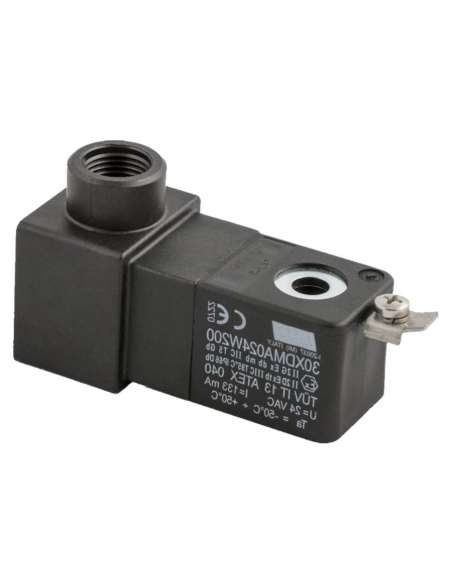

ATEX coil for solenoid valve 24Vdc size 30 Aignep: ADAJUSA : price

Coil solenoid valve 24Vdc 3W Size 30mm diameter 9 ATEX - Aignep

Name: Coil solenoid valve 24Vdc 3W Size 30mm diameter 9 ATEX - Aignep
Brand: Aignep
SKU: SOLX2024C1000
Price: 91.95 EUR
Availability: BackOrder

€91.95 Tax included

75.99 tax excl.

SOLX2024C1000

ATEX coil for solenoid valve size 30mm, voltage 24Vdc, for Ø9mm cores. Coil consumption 3W.

Valid for solenoid valves with 9mm actuator core.

Reference: SOLX2024C1000

Logotipo Aignep Logotipo identificador bobina ATEX 30mm Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
For more information, download the attached datasheet.

No queries yet, leave the first!

Privacy

Shipments

Returns

Coil size 30mm, operating voltage 24Vdc, with 3W consumption and 100% duty cycle, suitable for solenoid valves with an actuator core diameter of 9mm. IP66 degree of protection, suitable for working in ATEX zones.

Suitable for solenoid valves manufactured by Aignep, for installation follow the manufacturer's instructions.

Dimensiones bobinas tamaño 30mm ATEX Aignep Adajusa

Technical characteristics:

Brand: Aignep
Part number: SOLX2024C1000
Rated voltage: 24Vdc
Voltage tolerance: ±10%
Nominal power: 3W
Duty cycle: ED 100%
Core diameter: 9mm
Type of isolation: F (EN 60085)
Degree of protection: IP66
Temperature: -50ºC to 50ºC
Electrical connection: PG 9
ATEX specifications: II 2G Ex db mb IIC T5 Gb | II 2D Ex tb IIIC T5 Db

Note: Do not use with 01VB subbases. With Namur 08V valves use spacer 08V01

Material for professional use, install in compliance with the regulations in force at the place of installation.

Aignep valves catalog

Aignep series 01 valves and solenoid valves catalog

Download (8.44MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve coil 24VAC T22 diameter 9 - Mindman

Mindman

T055002450

€22.00 (€18.18 tax excl.)

Coil for electrovalve size 22mm, voltage 24Vca., with a consumption of 4.9VA, for cores of Ø9mm. Valid for electrovalves with 9mm actuator core.Reference: 243MAGNET055002450Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Coil for electrovalve 48Vcc 110Vca Mindman | ADAJUSA

Accessories for solenoid valves

Solenoid valve coil 48Vdc-110VAC T22 diameter 9 - Mindman

Mindman

T055011050

€22.00 (€18.18 tax excl.)

Coil for solenoid valve size 22mm, voltage 48Vdc-110Vac., with a consumption of 6VA, for cores of 9mm. Manufactured by Mindman and valid for solenoid valves with 9mm actuator core.

Coil for electrovalve 230Vca T22 Mindman | ADAJUSA

Accessories for solenoid valves

Solenoid valve coil 230VAC T22 diameter 9 - Mindman

Mindman

T055023050

€17.32 (€14.31 tax excl.)

Coil for electrovalve size 22mm, voltage 230Vac (220Vac to 240Vac) and 110Vdc, with a consumption of 6VA, for cores of Ø9mm. Valid for electrovalves with 9mm actuator core.Reference: 243MAGNET05500010050231 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

16 other products in the same category:

Solenoid valves 1/4

Terminal without OR 1/4 - Metal Work

Metal Work

226005201

€13.33 (€11.02 tax excl.)

Terminal without OR 1/4" for valves and solenoid valves series 70 PNV-SOV and BASIC seriesReference: 0226005201 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Intermediate for superior power 1/8" Metal Work - ADAJUSA

Solenoid valves 1/8

Intermediate for superior feed 1/8 - Metal Work

Metal Work

226004300

€14.91 (€12.32 tax excl.)

Intermediate for superior power supply 1/8" for valves and solenoid valves series 70 PNV-SOV and BASIC seriesReference: 0226004300 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Kit collectors 2 - 7 positions CSA-14 series 70 and BASIC Metal Work - ADAJUSA

Solenoid valves 1/4

Kit collectors 2-7 positions CSA-14 - Metal Work

Metal Work

222000x00

€15.43 (€12.75 tax excl.)

Kit collectors 2-7 positions 1/4" for valves and solenoid valves series 70 PNV-SOV and BASIC seriesReference: 0222000x00Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve coil 24Vdc 14W T30 diameter 13

Aignep

SOL20024C6000

€9.35 (€7.73 tax excl.)

Coil for solenoid valve size 30mm, voltage 24Vdc., with a consumption of 14W, for cores of 13mm. Manufactured by Aignep and valid for solenoid valves with 13mm actuator core.Ref: SOL20024C6000 Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Solenoid valves on motherboard

Multiple base for 1/8 valves - Metal Work

Metal Work

0223000xxx

€45.58 (€37.67 tax excl.)

Multiple motherboard for valves and electrovalves (between 2 and 10) of 1/8". For electrovalves of the brand Metal Work. Reference: 0223000xxx Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Coil for solenoid valve 220Vac size 22 Aignep | ADAJUSA | price

Accessories for solenoid valves

Coil solenoid valve 230Vac 5VA Size 22mm diameter 9 - Aignep

Aignep

SOL01220A2000

€4.38 (€3.62 tax excl.)

Coil for solenoid valve size 22mm, voltage 230Vac, for Ø9mm cores. Coil consumption 5VA. Valid for solenoid valves with 9mm actuator core.Reference: SOL01220A2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Connector solenoid valve with VDR 110V size 22 Aignep | ADAJUSA | Price

Accessories for solenoid valves

Connector solenoid valve luminous size 22 with VDR 110V - Aignep

Aignep

CON0211000

€6.22 (€5.14 tax excl.)

Connector for solenoid valve with VDR 110V protector and led indication. For coil size 22mm. Part number: CON0211000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Coil for solenoid valve 24VAC 11VA Aignep | ADAJUSA

Accessories for solenoid valves

Solenoid valve coil 24VAC 11VA T30 diameter 10

Aignep

SOL11024A9000

€8.28 (€6.84 tax excl.)

Coil for electrovalve size 30mm, voltage 24Vca., with a consumption of 11VA, for cores of Ø10mm. Manufactured by Aignep and valid for electrovalves with 10mm actuator core.Reference: SOL11024A9000Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

ISO solenoid valves

Side output ISO motherboard size 2 - Metal Work

Metal Work

MW0228001100

€24.93 (€20.60 tax excl.)

Individual base plate for ISO size 2 valves, side outlets. This plate can receive valves and solenoid valves manufactured according to ISO standard of any manufacturer.Reference: 0228001100 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Accessories for solenoid valves

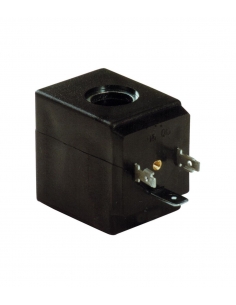

Solenoid valve coil 110Vac 22VA RSPJ
