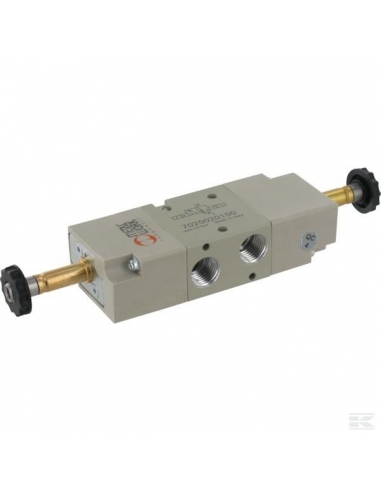

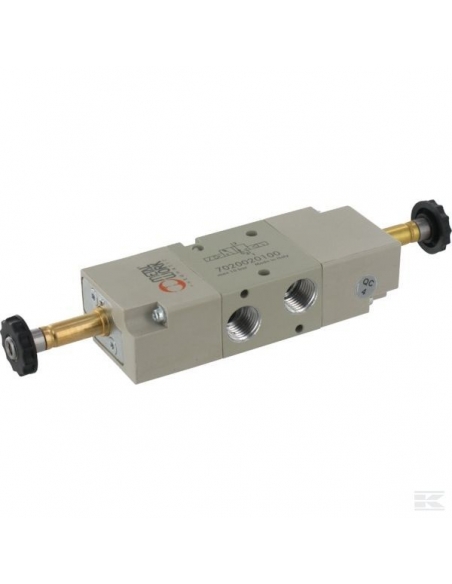

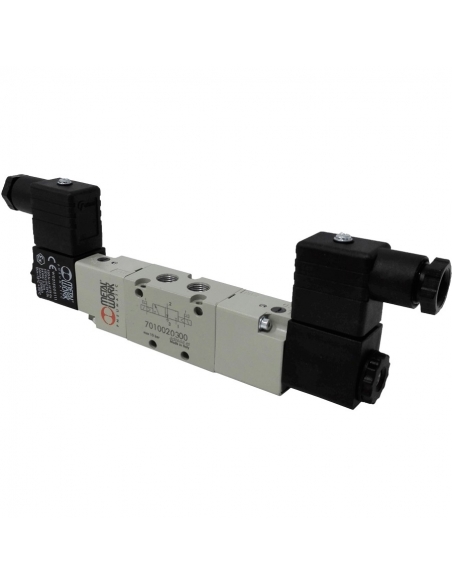

Solenoid valve 1/8 5 bistable roads assisted 230Vac 3.5VA - Metal Work

€105.78 Tax included

€87.42 tax excl.

1/8" 5-way, 2-position assisted solenoid valves for pneumatic industrial or general applications.

Coil for solenoid valve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm

ESquema electrovalvula 5 vias biestable asistida
Logo-Metal-Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


1/8" pneumatic electrovalves with 5 ways and 2 positions. Having independent pressure inlet for the pilot (assisted) allows to be used from 0 bars of pressure at the inlet.

Coil for electrovalve size 22mm, voltage 230Vac., with a consumption of 3.5VA, for cores of Ø8mm.

Plastic connector 22 mm

The supply includes:

  • 1 Electrovalve 1/8 5/2 assisted bistable
  • 2 Coils 230Vac 3,5VA
  • 2 22mm connector


specifications:

  • Manufacturer of the electrovalve: Metal Work.
  • Electrovalve reference: 7010021600
  • Voltage: 230Vac
  • Consumption: 3.5VA
  • Working pressure of the electrovalve: 2.5 to 10 bar.
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 5mm.
  • Flow rate at 6 bar Δp 1 bar: 550 Nl/min.
  • Manual drive: Yes.



Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
