Solenoid valve 1/8 5/2 monostable series 01V voltage 24Vdc : Aignep: ADAJUSA : price
Solenoid valve 1/8 5/2 monostable series 01V voltage 24Vdc : Aignep: ADAJUSA : price

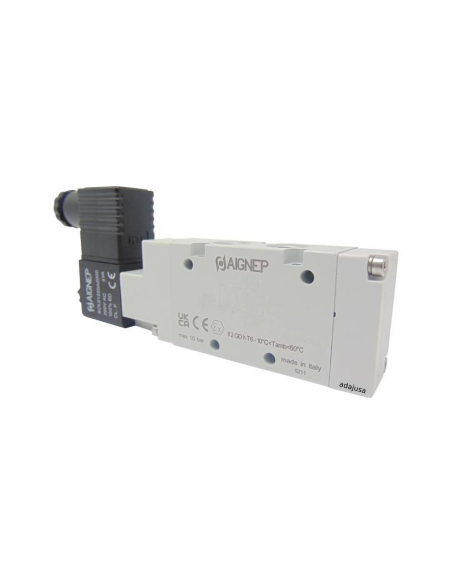

Solenoid valve 1/8 5 way monostable 24Vdc 3W - Aignep

€45.67 Tax included

€37.74 tax excl.

Instead of €45.67

PK-01VS050002-24Vcc

Complete 1/8 5 way monostable solenoid valve, with 24Vdc coil and 3W consumption, connector size 22mm, with G1/8" threads, anodized aluminum body, NBR seals.

Reference: 01VS050002-24Vdc
Esquema neumatico electrovalvula 5 vias monoestable
Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Pneumatic solenoid valve 1/8 5 ways monostable 01V series. Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR seals. European manufacture. Coil of 24Vdc 3W and connector.

. The supply includes:

  • Pneumatic solenoid valves 1/8" 5 ways
  • Coil 24Vdc 3W
  • Connector 22mm

Technical characteristics:

  • Manufacturer: Aignep
  • Part number: 01VS050002
  • Type of threads: G 1/8"
  • Monostable bar: 2 to 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 740 Nl/mi
  • Fluid: Filtered air without lubrication
  • Number of ways: 5
  • Operation: Monostable
  • Seal material: NBR
  • Rated voltage: 24Vdc
  • Voltage tolerance: ±10%
  • Power rating: 3W
Dimensiones electrovalvulas 1_8 5 vias monoestables Aignep Adajusa
Imagen construtiva electrovalvulas 3 vias Aignep Adajusa Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab
