2-wire reed magnetic sensor with Metal Work cable - ADAJUSA
2-wire reed magnetic sensor with Metal Work cable - ADAJUSA

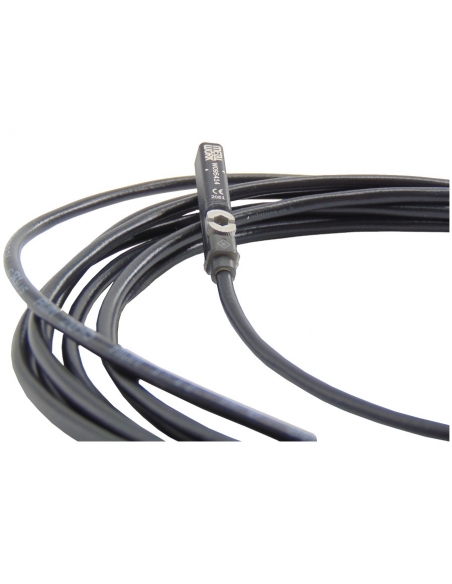

Wire magnetic reed 2 sensor with cable - Metal Work

€20.63 Tax included

€17.05 tax excl.

W095414

Insertable square type sensor, magnetic detector, reed type contacts, with cable included 2 wires.

Valid for mounting on ISO Metal Work and Mindman cylinders.

Reference: W095414

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Magnetic sensor with cable included for mounting on pneumatic cylinders. Reed type 2 threads.

Secure fixation by means of an eccentric steel pin that hooks the sides of the asinet.
Fixing screw suitable for flat screwdriver or a 2.5 mm allen wrench.
Equipped with retention tabs to keep the sensor in position during installation.
Compatible for use with traditional T-slots and rectangular slots.

Features of the magnetic detector:

  • Manufacturer: Metal Work.
  • Manufacturer reference: W095414
  • Contact type: Reed NO (Normally open).
  • Supply voltage (Ub): 5 to 30 AC/DC.
  • Power (W): 3.
  • Peak power (W): 6.
  • Output current (mA): ≤ 100.
  • Switching frequency (Hz): ≤ 400.
  • Short circuit protection: NO.
  • Overload protection: NO.
  • Regulations: CE, EN60947-5-2
  • Color led status indicator: Yellow.
  • Magnetic sensitivity: 2.1-3.5
  • Frequency: ≤ 0.1mT.
  • Degree of protection (according to EN60529): IP67.
  • Sensor capsule material: PA
  • Connection cable length: 2.5 m.
  • Connection cable type: PVC; 2x0.12mm².
  • Number of drivers: 2.

Other models: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.
