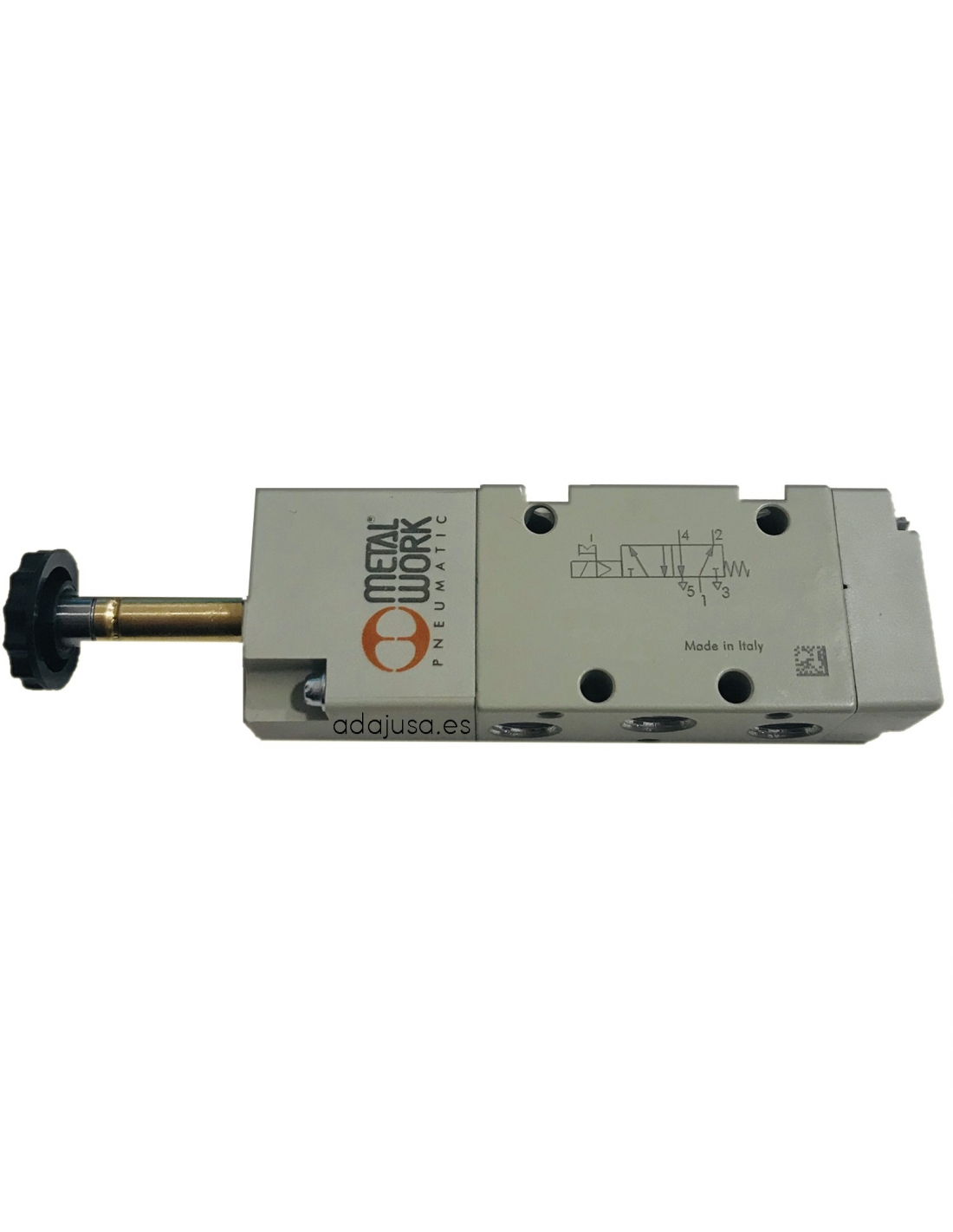

5-way 1/8" pneumatic solenoid valves for industrial or general pneumatic applications. High throughflow and very high reliability and durability.
The supply includes:
- Solenoid valves 1/8" 5-way monostable
- Coil 24Vdc 2 W
- 22mm connector
Characteristics:
- Manufacturer: Metal Work
- Solenoid valve reference: 7010021100 - SOV25SOSOO .
- Monostable bar operating pressure: 2.5 ÷10
- Minimum assist pressure bar: 2.5
- Operating temperature °C: -10 ÷ +60
- Nominal diameter mm: 5
- Conductance C Nl/min · bar: 121.43
- B bar/bar critical ratio: 0.32
- Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
- Flow rate at 6 bar ΔP 1 bar Nl/min: 550
- Monostable TRA/TRR at 6 bar ms: 15/35
- BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
- Voltage: 24Vdc
- Power: 2 W (DC)
- Voltage tolerances %: -10 ÷ +15
Material for professional use, install in compliance with the regulations in force at the place of installation.
To expand the information you can download the technical sheet by clicking on the "Attachments" tab
