Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm- Aignep
Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm- Aignep
Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm- Aignep

Black selector long cam 2 positions and Valve: 3/2 NC side fittings Ø 4 mm- Aignep

€36.57 Tax included

€30.22 tax excl.

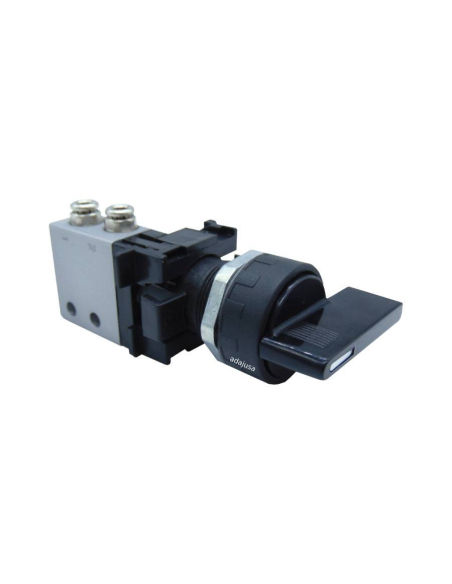

Pneumatic selector long cam 2 positions (0-1), and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm with built-in adapter for the interface (push-button-valve).

ESQUEMA PULSADOR+VALVULA NC (1)

Logotipo AignepNORMATIVAMICROVALVULA
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

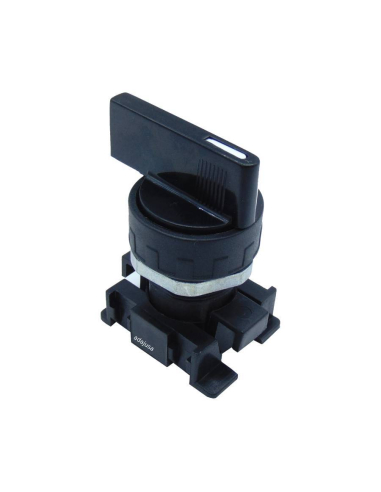

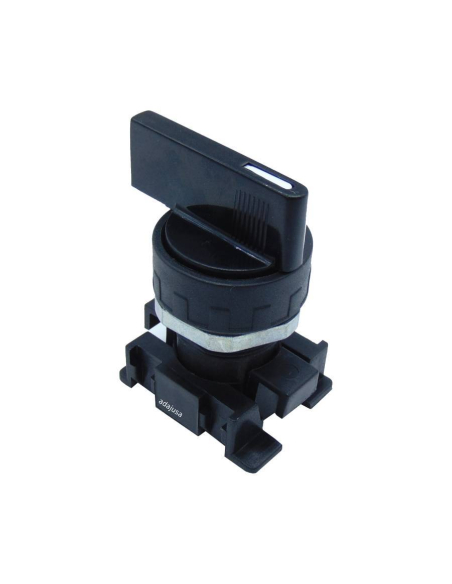

Pneumatic selector long cam 2 positions (0-1). Adapter for the selector included.

Limit switch pneumatic actuated by metal strut, with integrated side quick-connect fittings for 4mm external diameter pipe. At rest state of the limit switch valve is normally closed (NC), i.e. without pressing there is no air at the outlet as air cannot pass through and when actuated it lets air pass through and there is pneumatic pressure at the outlet.

The scope of supply includes:

    • Selector body
    • Valve adapter (supplied with the selector)
    • NC limit switch valve with fittings on the side Ø 4 mm and adapter integrated in the valve.

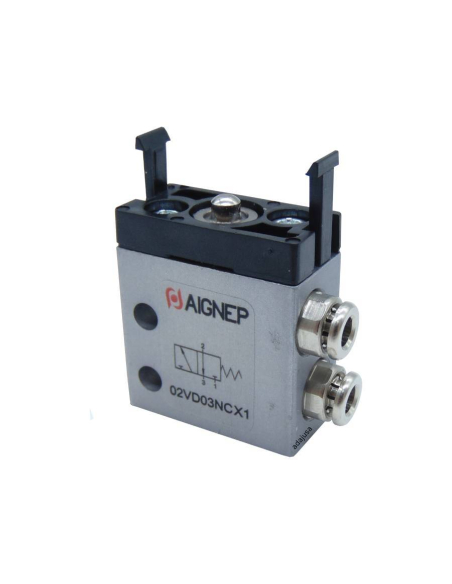

Valve characteristics:


  • Manufacturer: Aignep
  • Valve type: 3/2 Normally closed closed (NC).
  • Type of limit switch actuation: metal strut.
  • Manufacturer's part number: 02VD03NCX1
  • Valve Body: anodized aluminum
  • Spring material: stainless steel
  • Seals: NBR
  • Fittings: quick couplings for pipe diameter 4 mm side connection.
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60 °C
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 100
  • Built-in adapter for interface (push-button-valve).
  • Installation: in any position.
With the valve adapter up to two valves can be installed at the same time. Only one type of valve is included in the scope of delivery. If desired, another valve can be purchased separately to be added to the push button



dimensionesmicrovalvula
levalarga

Material for professional use, install in compliance with the regulations in force at the place of installation.
