Pneumatic foot pedal 1/4 5/2 monostable with protection and safety mechanism - Aignep

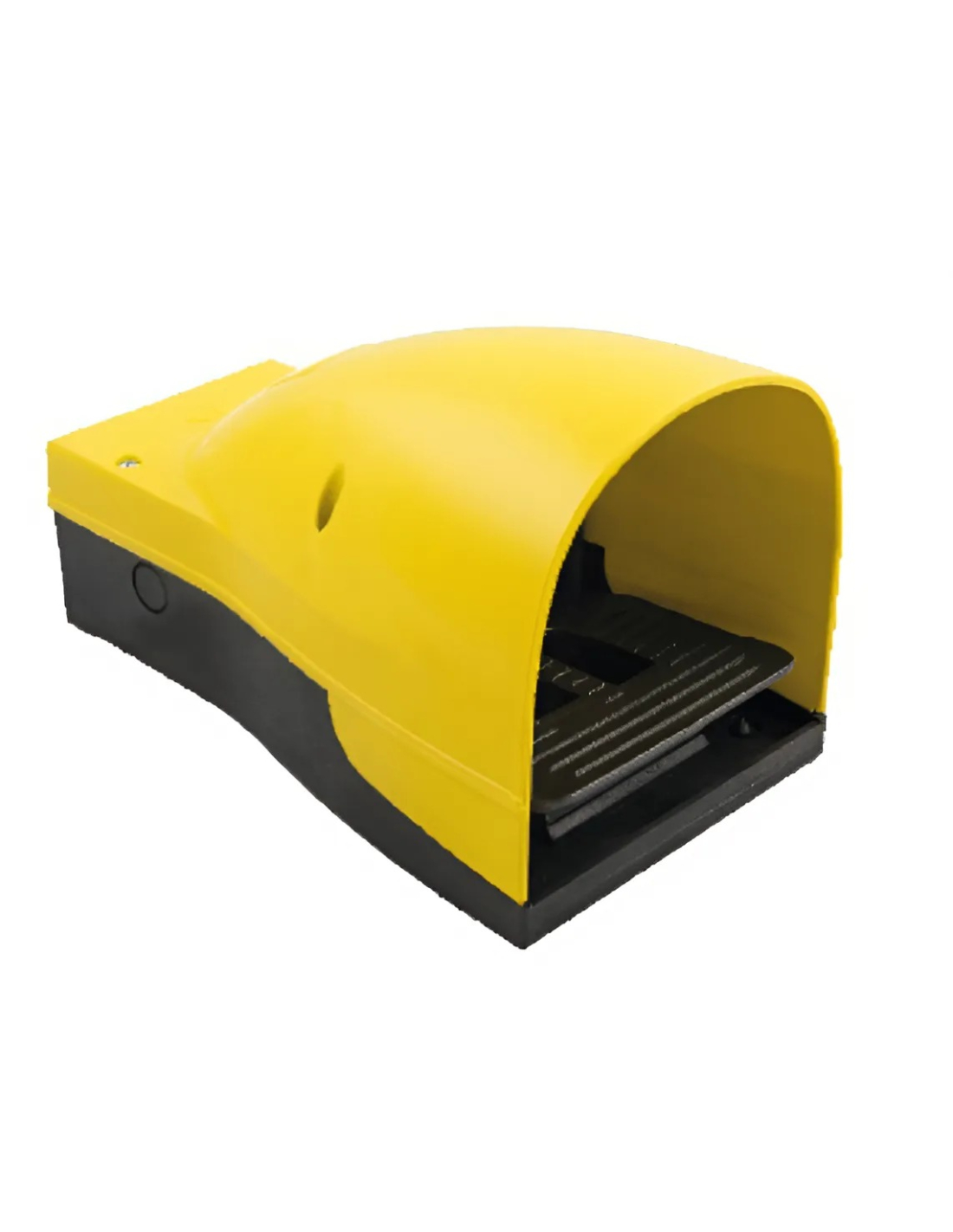

Pneumatic pedal with thread G 1/4" of 5 way monostable . The pedal is equipped with protection cover to avoid accidental actuation, and mechanical locking for the actuation. The body of the pedal is made of high resistance plastic material, in yellow color and the pneumatic valve in aluminum, of operation monostable, the pneumatic valve is actuated while the pedal remains pressed, returning to the rest position when it stops being actuated.

The mechanical lock for actuation is a safety mechanism, which forces the operator to insert the foot completely to unlock the actuation mechanism, and together with the protection cover, avoids unintentional actuation of the pedal or objects falling on it. This pedal is especially indicated for the control of machinery and equipment when the operator needs to have his hands free.

Technical characteristics:

• Manufacturer: Aignep
• Part number: 06V0000001 (PC 1/4 M)
• Operation: monostable
• Valve thread: 1/4"
• Fluid: With or without lubrication, if there is lubrication it must be continuous
• Type: 5 way, 2 positions monostable with protection
• Mechanical locking: Yes, prevents unintentional actuation
• Working pressure: 2..10 bar. 0,2..1 MPa
• Nominal diameter: 7.5mm
• Fluid type: Filtered air 50um, with or without lubrication
• Maximum working temperature: +60ºC

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
