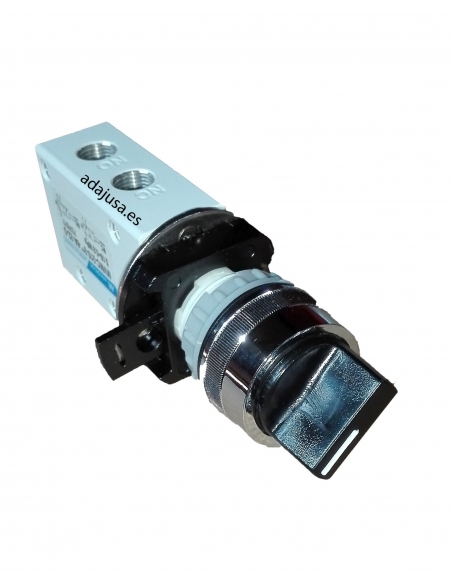

Full pneumatic selector adajusa

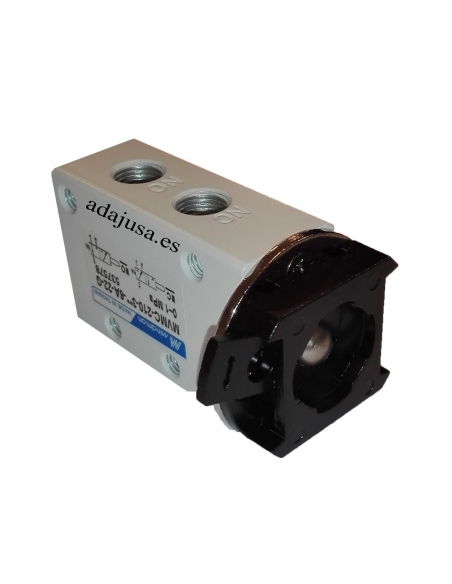

Mechanical drive valve adajusa

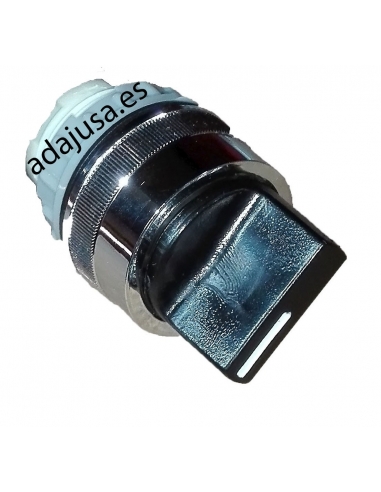

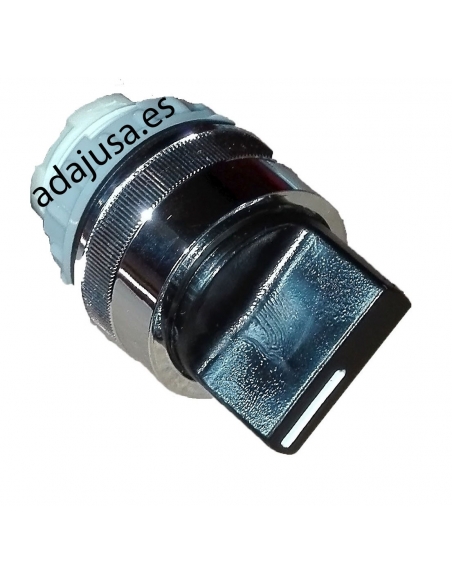

Pneumatic selector two positions black adajusa
Full pneumatic selector adajusa
Mechanical drive valve adajusa
Pneumatic selector two positions black adajusa

Pneumatic selector pushbutton with valve - Mindman

€40.78 Tax included

€33.70 tax excl.

PK-VALSEL

Full pneumatic selector, black color, hole diameter 22.5mm. with 1/8 3-way threaded valve. The pushbutton can be used as normally open (NA) or closed (NC).

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Full black pneumatic selector, 22.5mm drill diameter, 1/8-way threaded valve, which can be used as a closed valve (NC), when not activated there is no pressure at the outlet and the outlet is communicated with the exhaust, or open valve (NA), when no pressure is activated at the outlet, when pressed, the air passage to the outlet is interrupted and is communicated with the exhaust.

The push-button assembly consists of the following elements:

  • - Selector head with adapter
  • - Valve 1/8 3 Ways.

Technical details:

  • - Manufacturer: Mindman.
  • - Valve type: 1/8-3/2 Monostable.
  • - Thread type: G 1/8".
  • - Drive type: Black color selector.
  • - Number of tracks: 3.
  • - Positions: 2.
  • - Fluid type: Air under pressure, with or without lubrication.
  • - Working pressure: 0÷10 Kgr/cm2.
  • - Maximum pressure: 10 Kgr/cm2.
  • - Effective pitch diameter: 19 mm2.
  • - Working temperature: -5 to 60oC.
  • - Material: Alumio and steel.

selector neumático mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
