€40.54 Tax included

€33.50 tax excl.

Full neumatic selector, black color. with normally open valve (NA) and integrated fittings for tube diameter 4, rear outlet.

Logotipo Metal Work
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



Full black pneumatic selector, 22.5mm drill diameter, normally open valve (NA) with built-in fittings for tube 4mm. The fittings are located at the back of the valve.

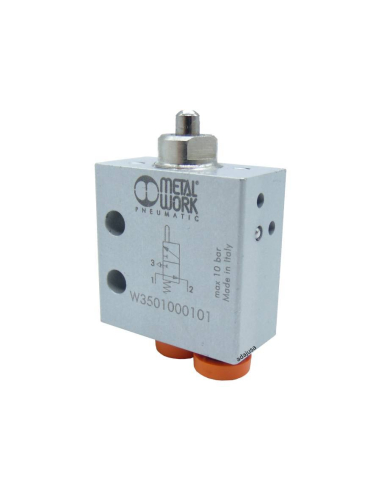

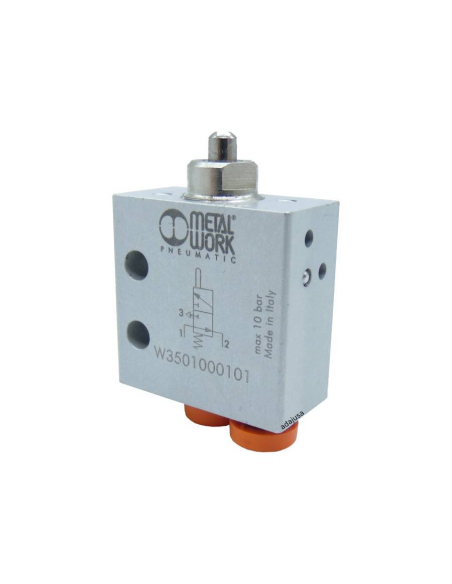

limit switch metal emboloding pneumatic frame, with integrated quick-connect fittings for 4mm outer tube. The state of the limit switch resting valve is normally open, i.e. without pressing there is an air presence in the exit, the air can pass, when operated, there is no longer pneumatic pressure at the outlet and the outlet is communicated with the exhaust to produce the air discharge of the circuit.


Supply includes:

    • Selector 2 positions

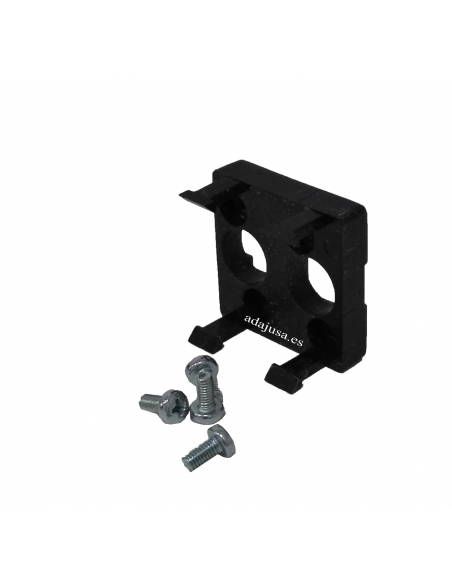

    • adapter
    • nut
    • Valve adapter
    • 4 screws
    • Front limit switch NA valve.

Valve features:

  • Manufacturer: Metal Work
  • Valve type: 3/2 normally open (NA).
  • Type of drive of the limit switch: Metal front piston.
  • Manufacturer's Reference: W3501000101
  • Material type: metallic.
  • Fittings: fast for tube 4mm located at the rear
  • Installation: in any position.

notes:
• To obtain the pneumatic function 5/2 assemble a 3/2 NC strut valve and a 3/2 NO on the adapter.
• To obtain the pneumatic function 5/3 open centers, assemble two 3/2 NC strut valves on the adapter.
• To obtain the pneumatic function 5/3 pressure centers, assemble two 3/2 NO strut valves on the adapter.

With the valve adapter you can place up to two valves at once. The supply only includes one type of valve. If you want you can buy another valve separately to add it to the pushbutton.

Dimensiones final de carrera neumatico piston NA racor de 4 trasero


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
