Pneumatic pedal 3/2 4 mm monostable with protection - Metal Work

€59.14 Tax included

48.88 tax excl.

W3120000321

Pneumatic pedal with 4 mm 3-way thread with protective cover in high-strength plastic material, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.

Reference: W3120000321

Logotipo Metal Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

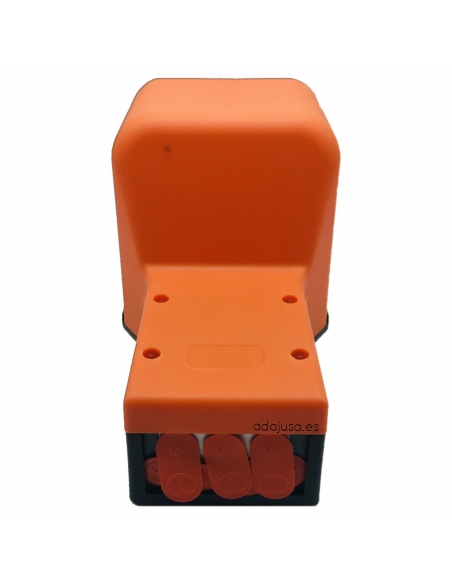

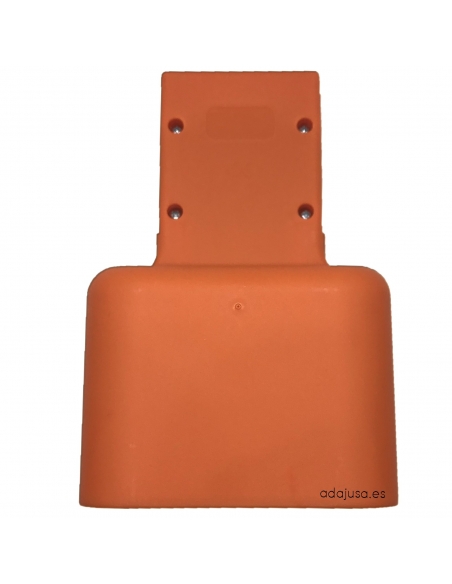

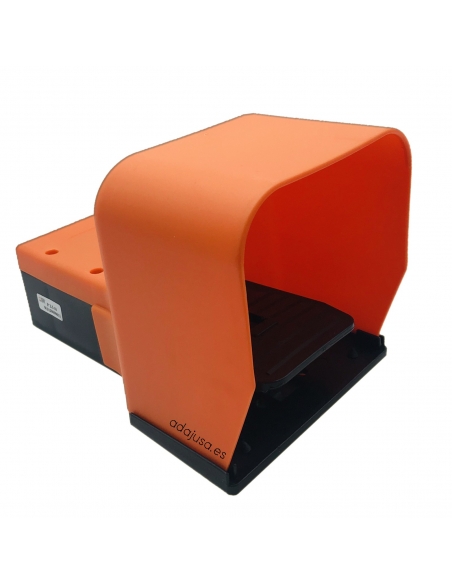

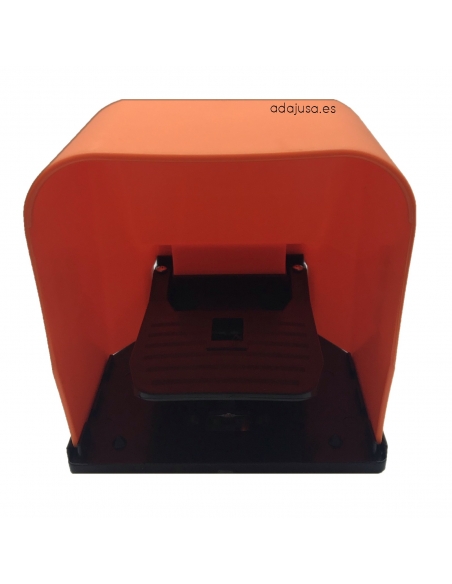

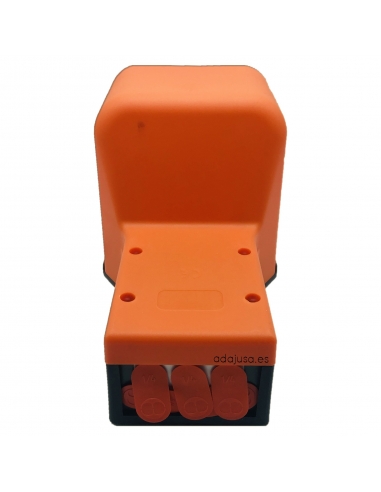

Pneumatic pedal with 4 mm thread of 3/2 single-way monostable. The pedal is equipped with a protective cover to avoid accidental actuation, the pedal body is made of high-strength plastic material, in orange and the pneumatic valve in aluminum, of monostable operation, the pneumatic valve is activated while the pedal remains pressed returning to the resting position when it stops operating.

Specifications:

  • Manufacturer: Metal Work.
  • Reference: W3120000321 (PEV F3 PES PR)
  • Valve thread: 4mm.
  • Fluid: With or without lubrication, if there is lubrication it must be continuous.
  • Typology: 3 ways, 2 monostable positions with protection.
  • Working pressure: 2,5..10 bar. 0,25..1 MPa. 36..145 psi.
  • Nominal diameter: 2.5 mm.
  • Conductance C: 16.5 Nl/min-bar.
  • Critical ratio: 0.03 bar/bar.
  • Flow rate at 6.3 bar ΔP 0.5bar: 60 Nl/min.
  • Flow rate at 6.3 bar ΔP 1 bar: 95 Nl/min.


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Monostable pneumatic pedal with protection - Metal Work Monostable pneumatic pedal with protection - Metal Work 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 M5 monostable with protection - Metal Work

Metal Work
W3120000301
€55.64 (€45.98 tax excl.)
Pneumatic pedal with 3-way M5 thread with protective cover in high-strength plastic material, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000301Representative image for illustrative purposes, the item supplied will correspond to the...
Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 diameter 4 mm bistable with protection - Metal Work

Metal Work
W3120000311
€63.68 (€52.63 tax excl.)
Pneumatic pedal with thread diameter 4 mm of 3 ways with protective cover in plastic material of high resistance, of bistable operation, the pneumatic valve is activated while the pedal remains pressed returning to the position of rest when it stops operating.Reference: W3120000311 Representative image for illustrative purposes, the item supplied...
Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 diameter M5 bistable with protection - Metal Work

Metal Work
W3120000331
€60.16 (€49.72 tax excl.)
Pneumatic pedal with 3-way M5 diameter thread with protective cover in high-strength plastic material, bistable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.Reference: W3120000331 Representative image for illustrative purposes, the item supplied will correspond...

16 other products in the same category:

Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA Pneumatic pedal 3/2 diameter 4 mm bistable with Metal Work protection - ADAJUSA 2
Pushbuttons and pneumatic actuators

Pneumatic pedal 3/2 diameter 4 mm bistable with protection - Metal Work

Metal Work
W3120000311
€63.68 (€52.63 tax excl.)
Pneumatic pedal with thread diameter 4 mm of 3 ways with protective cover in plastic material of high resistance, of bistable operation, the pneumatic valve is activated while the pedal remains pressed returning to the position of rest when it stops operating.Reference: W3120000311 Representative image for illustrative purposes, the item supplied...
Pneumatic foot pedal with protection cover and safety mechanism 1/4 way 5 bistable Aignep 06V0000004 - PC 1/4 B PI | Ada
Pushbuttons and pneumatic actuators

Pneumatic foot pedal 1/4 5/2 bistable with protection and safety mechanism - Aignep

Aignep
06V0000004
€71.39 (€59.00 tax excl.)
Pneumatic pedal with thread 1/4" of 5 way, with mechanical locking for the actuation and with protection cover, in high resistance plastic material, of operation bistable (with interlocking), the pneumatic valve is activated at the first press and will remain activated even if the foot is removed, it will remain activated until a new actuation with the...
Black long cam selector with 2 positions with spring return and Valve: 3/2 NC side fittings Ø 4 mm - Aignep - ADAJUSA Black long cam selector with 2 positions with spring return and Valve: 3/2 NC side fittings Ø 4 mm - Aignep - ADAJUSA 2
  • Pack
Pushbuttons and pneumatic actuators

Black long cam selector with 2 positions with spring return and Valve: 3/2 NC side...

Aignep
PK-SELLA32NC2
€39.03 (€32.26 tax excl.)
Pneumatic selector long cam 2 positions (0-1) with spring return, and limit switch valve normally closed closed (NC), fittings located on the side for tube outer diameter of 4 mm with built-in adapter for the interface (push-button-valve). Representative image for illustrative purposes, the article supplied will correspond to the specifications...
Pneumatic foot pedal with protection cover and safety mechanism 1/4 way 5 monostable Aignep 06V0000002 - PC 1/4 PI | ADA
Pushbuttons and pneumatic actuators

Pneumatic foot pedal 1/4 5/2 monostable with protection and safety mechanism - Aignep

Aignep
06V0000002
€66.39 (€54.87 tax excl.)
Pneumatic pedal with 1/4" thread of 5 way with mechanical locking for actuation and with protection cover, in high resistance plastic material, of operation monostable, the pneumatic valve is actuated while the pedal remains pressed returning to the rest position when it stops being actuated.Reference: 06V0000002 Representative image for illustrative...

Customers who bought this product also bought:

Straight male fitting with internal hexagon M5 tube 4mm Series 56000 MINI - Aignep | ADAJUSA
Straight fittings

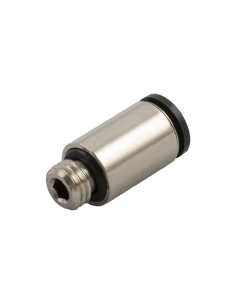

Straight male fitting with internal hexagon M5 tube 4mm Series 56000 MINI - Aignep
