€147.23 Tax included

121.68 tax excl.

W3605000001

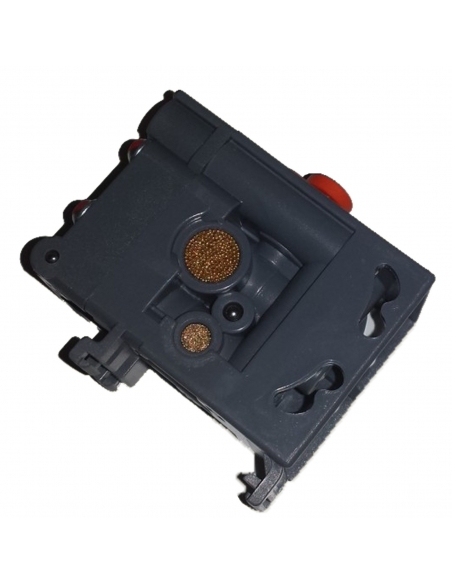

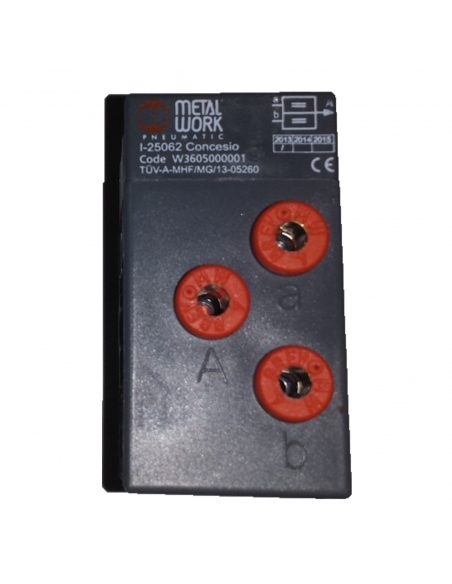

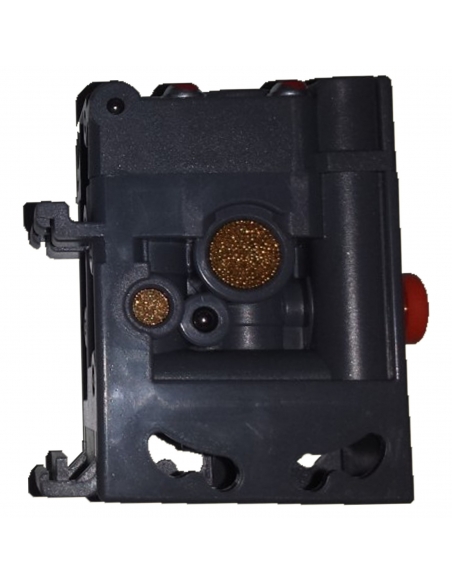

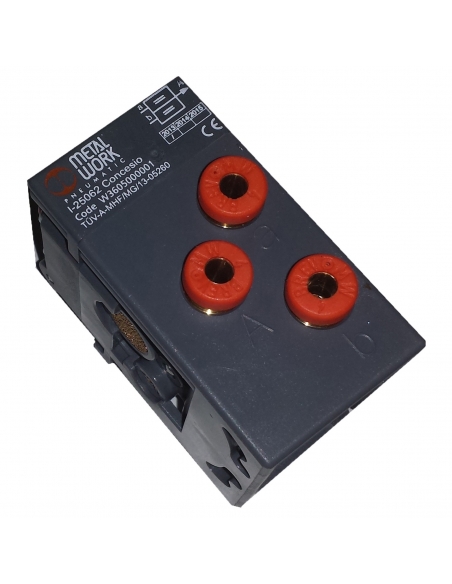

Safety valve for pneumatic bimanual control.

Reference: W3605000001

Logotipo Metal Work


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


This bimanual control block emits an output signal when the two synchronized input signals are present, i.e. the two have to arrive with a difference of no more than 0.4 sec. The output signal disappears as soon as any of the input signals disappear.

Fastening can be done by means of screws to the valve or by DIN rail.

Technical features:

  • Valve type: synchronized "Y" logic function.
  • Type of fittings: Quick connect 4 .
  • Maximum time synchronization between the two input signals: 0.4 sec.
  • Closing time: less than 0.05 sec.
  • Drive: pneumatic.
  • Working pressure: 2.5.. 8
  • Working temperature: -10.. 60o.
  • Mounting position: In any position.
  • Standard: EN574 type IIIA. T-V A/MHF/MG/13-05260. CE marking.

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"
