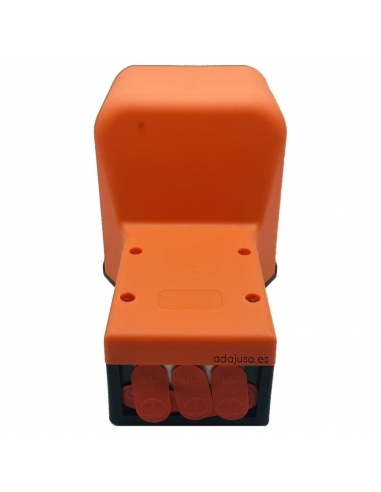

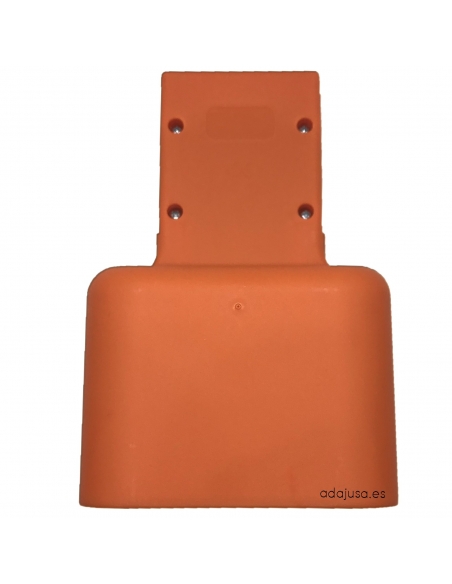

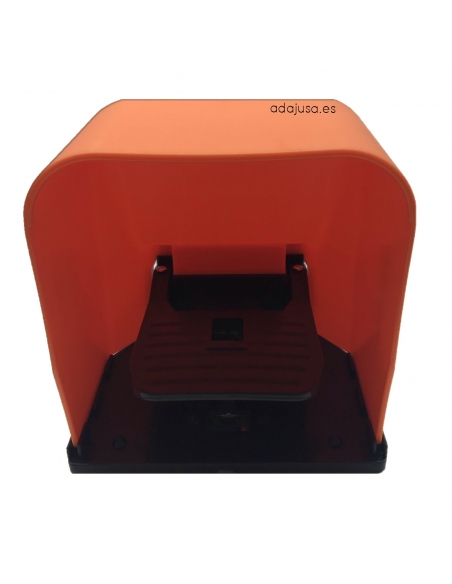

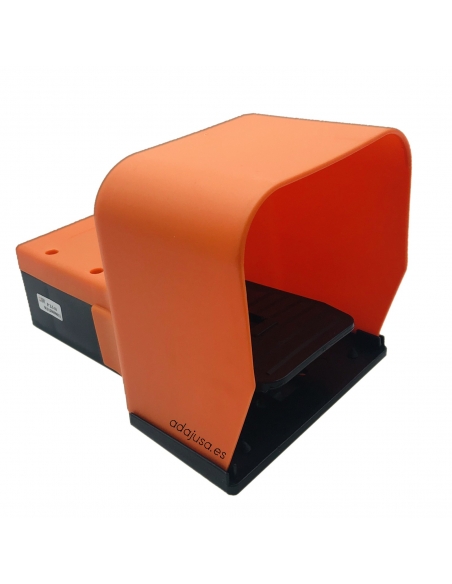

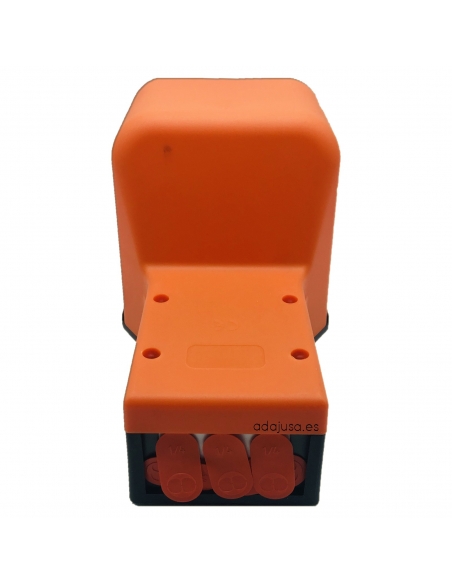

Pneumatic pedal 3/2 M5 monostable with protection - Metal Work

Name: Pneumatic pedal 3/2 M5 monostable with protection - Metal Work
Brand: Metal Work
SKU: W3120000301
Price: 53.4941 EUR
Availability: PreOrder

€53.49 Tax included

€44.21 tax excl.

Pneumatic pedal with 3-way M5 thread with protective cover in high-strength plastic material, monostable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.

Reference: W3120000301

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic pedal with M5 thread of 3/2 monostable ways. The pedal is equipped with a protective cover to avoid accidental actuation, the pedal body is made of high-strength plastic material, in orange and the pneumatic valve in aluminum, of monostable operation, the pneumatic valve is activated while the pedal remains pressed returning to the resting position when it stops operating.

Specifications:

Manufacturer: Metal Work.
Reference: W3120000301 (PEV F3 PEB PR)
Valve thread: M5.
Fluid: With or without lubrication, if there is lubrication it must be continuous.
Typology: 3 ways, 2 monostable positions with protection.
Working pressure: 2,5..10 bar. 0,25..1 MPa. 36..145 psi.
Nominal diameter: 2.5 mm.
Conductance C: 16.5 Nl/min-bar.
Critical ratio: 0.03 bar/bar.
Flow rate at 6.3 bar ΔP 0.5bar: 60 Nl/min.
Flow rate at 6.3 bar ΔP 1 bar: 95 Nl/min.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Pedals

Download (128.23KB)
