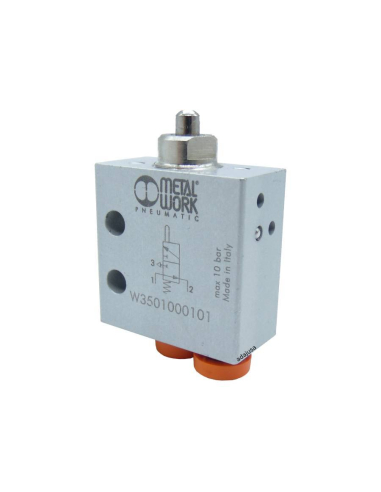

Pneumatic black-red valve pushbutton: 3/2 NA rear - Metal Work

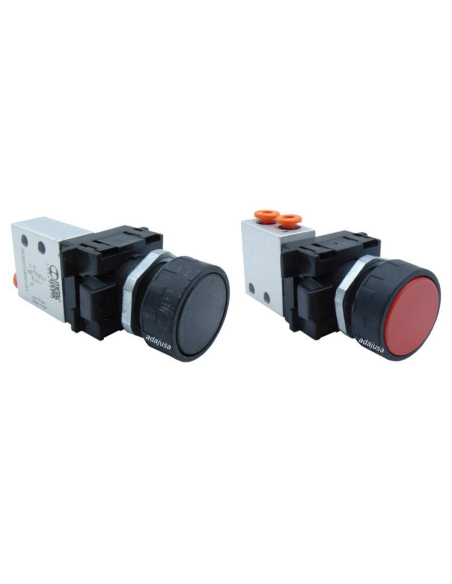

Pushbutton with black and red disc, protected monostable for use with limit switch pneumatic valve with pushbutton drive

limit switch metal embol drive pneumatic fittings, with integrated quick-connect fittings for 4mm outer tube. The state of the limit switch resting valve is normally open, i.e. without pressing there is an air presence in the exit, the air can pass, when operated, there is no longer pneumatic pressure at the outlet and the outlet is communicated with the exhaust to produce the air discharge of the circuit.

Supply includes:

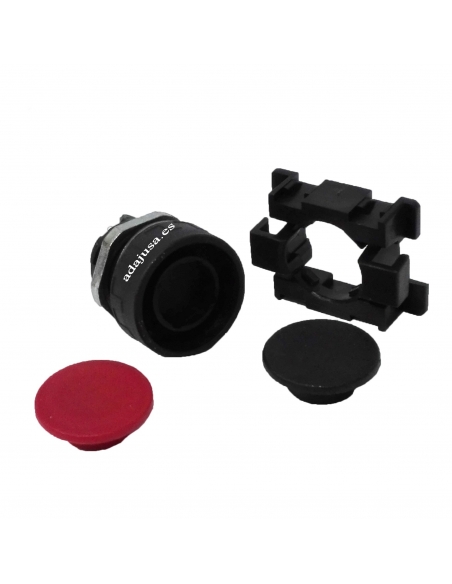

• Pushbutton body

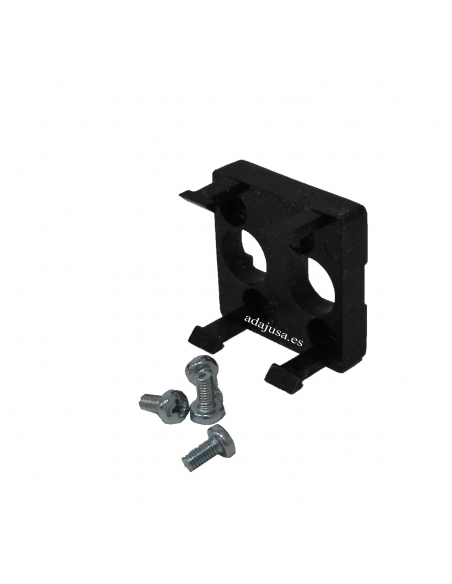

• adapter
• nut
• 2 discs (1 black and another red color)
• Valve adapter
• 4 screws

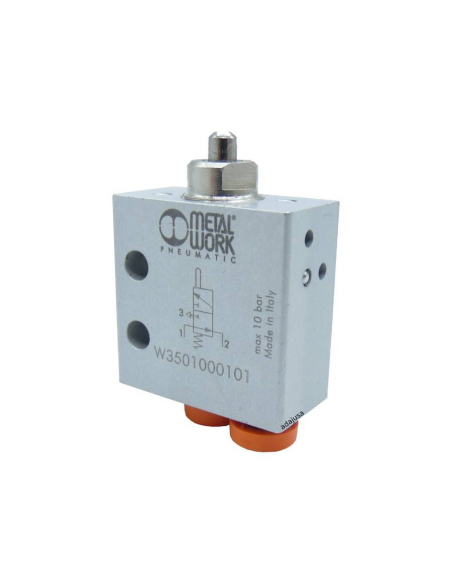

• Front limit switch NA piston valve.

Valve features:

• Manufacturer: Metal Work
• Valve type: 3/2 normally open (NA).
• Type of drive of the limit switch: Metal front piston.
• Manufacturer's Reference: W3501000101
• Material type: metallic.
• Fittings: fast for tube 4mm located at the rear
• Installation: in any position.

notes:
• To obtain the pneumatic function 5/2 assemble a 3/2 NC strut valve and a 3/2 NO on the adapter.
• To obtain the pneumatic function 5/3 open centers, assemble two 3/2 NC strut valves on the adapter.
• To obtain the pneumatic function 5/3 pressure centers, assemble two 3/2 NO strut valves on the adapter.

With the valve adapter you can place up to two valves at once. The supply only includes one type of valve. If you want you can buy another valve separately to add it to the pushbutton.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
