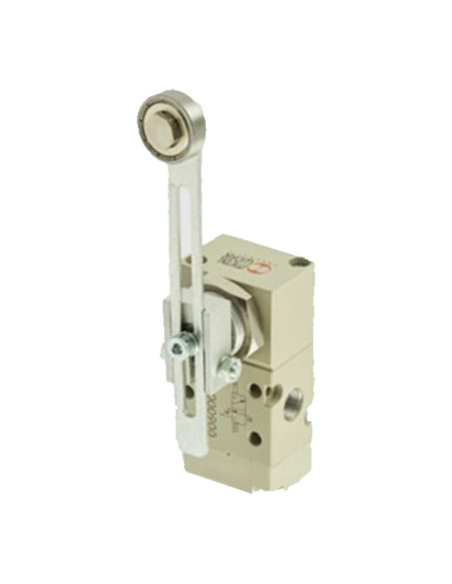

Limit Switch 1/8 3/2 lever extendable roller - Metal Work

Name: Limit Switch 1/8 3/2 lever extendable roller - Metal Work
Brand: Metal Work
SKU: 7001000900
Price: 77.7909 EUR
Availability: PreOrder

€77.79 Tax included

€64.29 tax excl.

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is unidirectional lever drive with extendable roller.

Reference: 7001000900

Diagrama válvula neumática 3 vías monoestable

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Pneumatic stroke end,unidirectional lever drive pneumatic valve with extendable metal roller. End-of-stroke connections are 1/8" threaded. The valve is 3-way and 2 positions 3/2.

Technical details:

Manufacturer: Metal Work.
Reference: MEV 23 LLS NC.
Code: 701000900.
Fluid: Pressure or vacuum air, with or without lubrication.
Valve body: aluminum.
Sliding material: Nickel-plated aluminium.
Gaskets: NBR.
Number of tracks: 3.
Size: 1/8".
Positions: 2 return per spring.
Control: By extendable lever.
Working pressure: Empty÷10 bar.
Temperature: -10÷60oC.
Nominal diameter: 5mm.
Flow rate at 6bar &DELTA; P 0.5bar: 400 Nl/min.
Flow rate at 6bar &DELTA; Q 1bar: 550 Nl/min.
Installation: in any position.

Dimensiones válvula 7001000900 Metal Work

Mechanical valves sheet

Download (478.69KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Limit Switch 1/8 3/2 one-way roller lever - Metal Work

Metal Work

7001000600

€37.79 (€31.23 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is unidirectional drive by lever with roller. Reference: 7001000600 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch 1/8 5/2 one-way roller lever - Metal Work

Metal Work

7001000610

€40.70 (€33.64 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 5-way thread. The limit switch is unidirectional drive by roller lever. Reference: 7001000610 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch 1/8 5/2 lever extendable roller - Metal Work

Metal Work

7001000910

€82.04 (€67.80 tax excl.)

Limit Switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 5-way thread. The limit switch is unidirectional lever drive with extendable roller. Reference: 7001000910 IRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch 1/8 3-way servo-pilot antenna - Metal Work

Metal Work

7001000700

€64.81 (€53.56 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way. The limit switch is driven by a sensitive antenna. Reference: 7001000700 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch 1/8 5-way servo-piloted antenna - Metal Work

Metal Work

7001000710

€67.98 (€56.18 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 5-way. The limit switch is driven by a sensitive antenna. Reference: 7001000710 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

Pneumatic Limit switchs

Limit Switch 1/8 3-way strut servo-pilot - Metal Work

Metal Work

7001000200

€47.92 (€39.60 tax excl.)

limit switch pneumatic drive with push-button drive, 1/8" 3-way mechanical drive. Sensitive strut drive. Reference: 7001000200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Limit Switch 1/8 5/2 Metal Work servo roller - ADAJUSA

Pneumatic Limit switchs

Limit Switch 1/8 5-way servo-piloted roller - Metal Work

Metal Work

7001000410

€54.18 (€44.78 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 5-way thread. The limit switch is operated by lever with sensitive roller. Reference: 7001000410 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit switch 3/2 NC pneumatic strut 3/2 NC monostable with lateral fittings diameter M5...

Aignep

02VG03NCB5

€13.12 (€10.84 tax excl.)

Limit switch m5 pneumatic 3 way and 2 positions, fittings located on the side for M5 outside diameter tube. The type of limit switch valve is normally closed (NC). Series: 02VPart number: 02VG03NCB5 Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

Pneumatic Limit switchs

Limit Switch tyre piston NO 3/2 diameter 4 - Metal Work

Metal Work

W3501000400

€17.91 (€14.80 tax excl.)

Limit Switch pneumatic,fittings located on the side, for tube outer diameter of 4 mm. The valve type of the limit switch is normally open (NO). Reference: W3501000400 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit switch 3/2 NC unidirectional cam pneumatic 3/2 NC monostable with side fittings...

Aignep

02VU03NCB5

€18.11 (€14.97 tax excl.)

Limit switch pneumatic with unidirectional M5 cam actuator 3 way and 2 positions, fittings located on the side for tube outside diameter M5. The type of limit switch valve is normally closed (NC). Series: 02VPart no.: 02VU03NCB5 Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

Pneumatic Limit switchs

Limit Switch high cam piston tyre 1/8 3/2 NC - Mindman

Mindman

EPA103

€25.66 (€21.21 tax excl.)

Limit Switch pneumatic,high piston with roller, mechanically operated pneumatic valve, 1/8 thread 3 ways normally closed (NC). The limit switch is driven by a button with a metal roller.Reference: 281EPA103 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch tyre 3/2 NC one-way cam diameter M5 rear fittings - Metal Work

Metal Work

W3501000311

€21.22 (€17.54 tax excl.)

Limit Switch tire with unidirectional cam drive, fittings located at the rear, for M5 outer diameter tube. The valve type of the limit switch is normally closed (NC). Reference: W3501000311 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch 3/2 NC side fittings diameter M5 - Metal Work

Metal Work

W3501001111

€17.76 (€14.68 tax excl.)

limit switch pneumatic with push button drive, fittings located on the side for outer diameter tube of M5. The valve type of the limit switch is normally closed (NC). Reference: W3501001111 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit switch 3/2 strut pneumatic NO monostable with side fittings diameter M5 - Aignep

Aignep

02VG03NOB5

€14.82 (€12.25 tax excl.)

Limit switch m5 pneumatic 3 way and 2 positions, fittings located on the side for M5 O.D. tube. The limit switch valve type is normally open (NO). Series: 02VPart number: 02VG03NOB5 Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

Pneumatic Limit switchs

Limit switch servo-piloted strut tire 1/8 5/2 monostable with spring-return - Aignep

Aignep

01VV050002

€41.47 (€34.27 tax excl.)

Limit switch pneumatic of 1/8 5 way and 2 positions, for mounting with emergency push button or similar. Actuated by servo-piloted strut. Series: 01VReference: 01VVV050002 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch 1/8 5-way strut servo-pilot - Metal Work

Metal Work

7001000210

€51.49 (€42.55 tax excl.)

limit switch pneumatic drive with push-button drive, 1/8" 3-way mechanical drive. Sensitive strut drive. Reference: 7001000210 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit switch pneumatic 3/2 NC monostable for panel mount actuators - Aignep

Aignep

02VD03NCB5

€14.62 (€12.08 tax excl.)

Limit switch m5 pneumatic 3 way and 2 positions, fittings located on the side for M5 outer diameter tube. Prepared for mounting with emergency push button or similar. Series: 02VPart number: 02VD03NCB5 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit Switch tyre 3/2 NC rear fittings diameter M5 - Metal Work

Metal Work

W3501000111

€16.63 (€13.74 tax excl.)

limit switch pneumatic with pushbutton drive, fittings (axial connections) located at the rear for 4 mm outer diameter tube. The valve type of the limit switch is normally closed (NC). Reference: W3501000111 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit switch 3/2 NC 3/2 NC strut pneumatic tire monostable side fittings diameter M5 -...

Aignep

02VE03NCB5

€14.40 (€11.90 tax excl.)

Limit switch pneumatic actuated by M5 3 way and 2 positions strut actuator, fittings located on the side for M5 outside diameter pipe. The type of limit switch valve is normally closed (NC). Series: 02VPart number: 02VE03NCB5 Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

Pneumatic Limit switchs

Limit Switch pneumatic 3/8 5/2 lever roller S. 300 - Mindman

Mindman

MVMA3004R1

€33.78 (€27.92 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 3/8 5-way thread. The limit switch is operated by roller lever. Reference: MVMA3004R1 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

Limit switch 3/2 NC pneumatic strut 3/2 NC side fittings diameter 4 mm- Aignep

Aignep

02VG03NCX1

€15.34 (€12.68 tax excl.)

Limit switch pneumatic strut pneumatic 3 way and 2 positions, monostable, normally closed (NC) and fittings located on the side for tube outer diameter of 4 mm. Prepared for mounting with emergency pushbutton or similar. Series: 02VPart no.: 02VG03NCX1 Representative image for illustrative purposes, the item supplied will correspond to the...

Customers who bought this product also bought:

Fittings swivel elbow

Cylindrical swivel elbow fitting 1/4 tube 8 technopolymer - Metal Work

2L34010

€2.58 (€2.13 tax excl.)

Racor rotating elbow 1/4 for tube ØExt 8mm. Male cylindrical thread, with O-ring included. Fast, very simple and efficient connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Racor valid for pneumatic and vacuum installations. Reference: 2L34010 Representative image for...

Cylinder Ø16 double effect Mindman - ADAJUSA

Cylinder Ø16 double effect Mindman - ADAJUSA 2

Pneumatic cylinders Ø16

Cylinder 16x50 double effect - Mindman

MCMI110160050

€30.46 (€25.17 tax excl.)

Pneumatic cylinder Ø16x50 double effect, magnetic. Reference: 281MCMI110160050Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

View

Stop and emergency pushbuttons

Emergency stop button diameter 40 2NC (push-turn) - SCHNEIDER

XB4BS8444

€25.71 (€21.25 tax excl.)

Emergency stop button, 40 mm diameter red mushroom-head , 2 closed contacts, metal body and chromed edge. Mechanical interlock and twist release. The supply includes the complete button with two closed contacts (2 NC). Mounting diameter 22,5mm. Cable fixing by screw.Reference: XB4BS8444 Representative image for illustrative purposes, the supplied...

Simple insulated toe caps

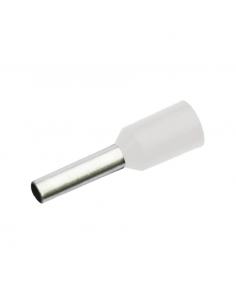

Bag of 100 pre-insulated 6mm toe

2040166

€3.81 (€3.15 tax excl.)

Bag of 100 pre-insulated toe for 6 mm2 cable, green. Manufactured according to norm . Green color Reference: 2040166 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Pressure switches, vacuum switches and flowmeters

Pressure switch 1/8 contact closed

4121122

€18.85 (€15.58 tax excl.)

Pressure switch 1/8 tire with nc, adjustable pressure range between 1 and 10 bar. Reference: 4121122 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Three-phase motor 4Kw 5.5CV 230/400V 3000 rpm IE1 Flange B3 foot small housing

Three-phase motor 4Kw 5.5CV 230/400V 3000 rpm IE1 Flange B3 foot small housing 2

Three-phase electric motors 3000 rpm flange B3 (foot) car. aluminum IE1, IE2, IE3

Three-phase motor 4Kw 5.5HP 230/400V 3000 rpm IE1 Flange B3 foot small housing

SS100L12B34E1

€240.92 (€199.11 tax excl.)

Three-phase electric motor 4kW (5.5HP) 230/400V 3000 rpm (2 Pole) Flange B3 foot, housing in reduced aluminum. Manufactured under European IEC regulations. Reference: SS-100L1-2 B3 CR Voltage: 230/400Vac 50/60Hz Number of poles: 2 Revolutions: 3000 rpm Flange: B3 foot Shaft diameter: 28mm Power: 4Kw - 5.5Hp Size: 100 Energy efficiency: IE1...

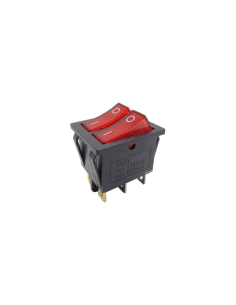

Double luminous red switch 16A-250V 28.5x22mm Test Series | Adajusa
