Pressure switch 1/8 contact closed

€16.65 Tax included

13.76 tax excl.

4121122

Pressure switch 1/8 tire with nc, adjustable pressure range between 1 and 10 bar.

Reference: 4121122

Esquema eléctrico presostato contacto cerrado NC



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



1 question about the product
Privacy
Shipments
Returns

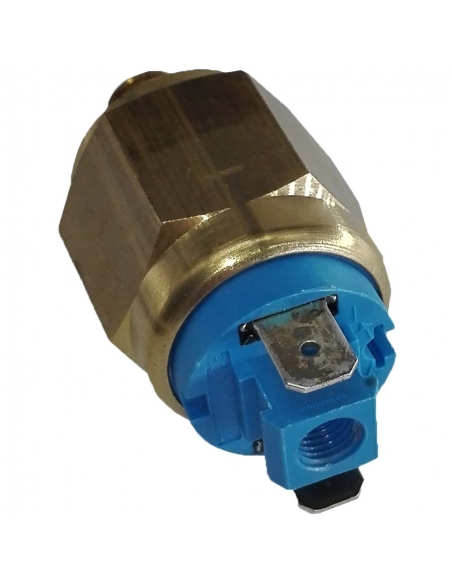

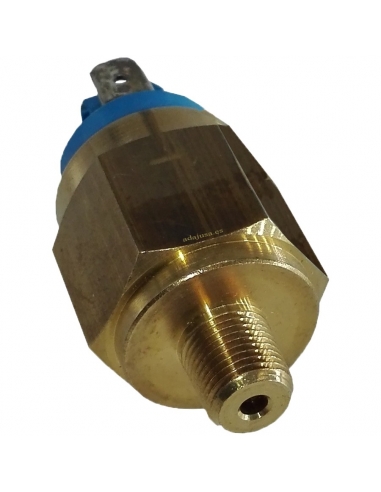

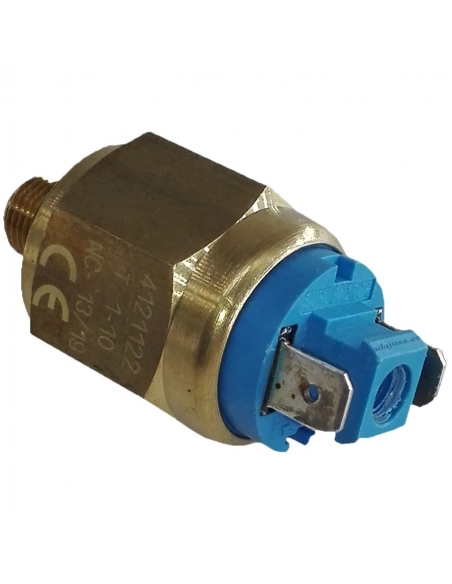

1/8 contact cylindrical male screw pressure switch, normally closed (NC). The pressure level is adjustable between 1 and 10 bar. The main application of this pressure switch is the detection of the lack of pneumatic pressure at the pressure switch inlet. The electrical contact will remain closed until the adjusted pneumatic pressure is reached, at this time it will open.

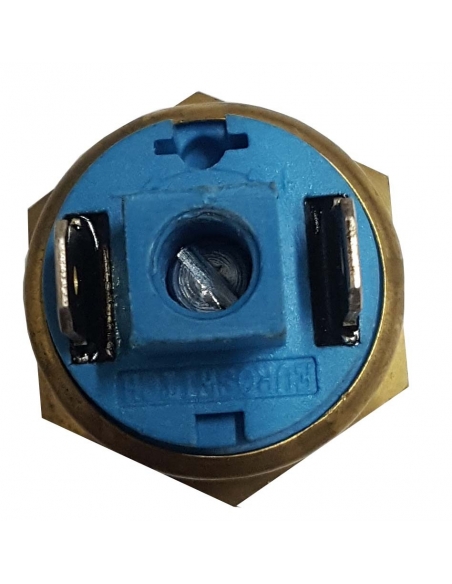

The electrical connection terminals are by means of faston type terminals.

Specifications:

  • Brand: Vestonn
  • Reference: 4121122
  • Thread: 1/8
  • Contact type: 4A. NC (normally closed), resistive load.
  • Maximum working voltage: 250 Vac.
  • Working temperature: -5ºC to 80ºC.
  • Adjustable pressure range: 1 - 10 bar.
  • Maximum pressure: 10 bar.
  • Body material: OT58 brass.
  • Membrane material: FKM.
  • Piston material: OT58 brass.
  • Fixed contact: Silver.
  • Mobile contact: Phosphorous bronze, with silver tablet.

Other models: consult.

Dimensiones presostato neumático metal work

Dimensiones presostato neumático metal work 2

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Question
Buenas tardes, busco presostatos con características que he visto en su pagina. Pero sería importante que en la hoja técnica viniese homologado para uso con gas GLP's
Answer
Estimado cliente,

Los presostatos que tenemos a la venta no tienen hoja técnica viniese homologado para uso con gas GLP's

Un saludo
ADAJUSA
Francisco Ruiz on 05/14/2025 18:50:25
