Pneumatic stroke end 1/8 3/2 MVMC-210-6-3R1 Price Mindman
Pneumatic stroke end 1/8 3/2 MVMC-210-6-3R1 Price Mindman

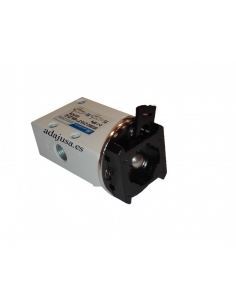

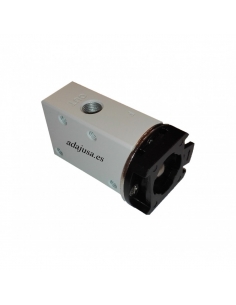

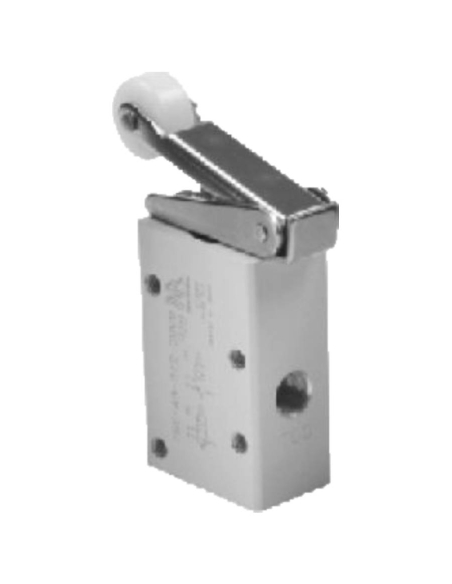

Limit Switch pneumatic 1/8 3/2 lever roller - Mindman

€31.67 Tax included

€26.17 tax excl.

MVMC21006A3R1

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is operated by roller lever. The limit switch can be used as normally open (NA) or closed (NC).

Reference: 281MVMC21006A3R1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

limit switch pneumatic valve,mechanically operated pneumatic valve by lever with metal roller. The connections of limit switch are by 1/8" thread. The valve is 3-way and can be used as a closed valve (NC), when it is not pulsed there is no pressure at the outlet and the outlet is communicated with the exhaust, or open valve (NA), when it is not pulsed there is pressure at the outlet, when pressed, the passage of the air to the outlet is interrupted and it is communicated with the exhaust.

specifications:

  • Manufacturer: Mindman.
  • Manufacturer's Reference: MVMC-210-6A-3R1.
  • Valve type: 1/8-3/2 Monostable.
  • Thread type: G 1/8".
  • Drive type: Roller lever.
  • number of tracks: 3.
  • Positions: 2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0÷10 Kgr/cm2.
  • Maximum pressure: 10 Kgr/cm2.
  • Effective pitch diameter: 19 mm2.
  • Working temperature: -5 to 60oC.
  • Material: Alumio and steel.

Dimensiones final de carrera neumático palanca mindman 1/8

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Limit switch 3/2 NC 3/2 NC strut tire monostable side fittings diameter M5 - Aignep: ADAJUSA : price
Pneumatic Limit switchs

Limit switch 3/2 NC 3/2 NC strut pneumatic tire monostable side fittings diameter M5 -...

Aignep
02VE03NCB5
€15.80 (€13.06 tax excl.)
Limit switch pneumatic actuated by M5 3 way and 2 positions strut actuator, fittings located on the side for M5 outside diameter pipe. The type of limit switch valve is normally closed (NC). Series: 02VPart number: 02VE03NCB5 Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.
Limit switch pneumatic strut 3/2 NO side fittings diameter 4 mm - Aignep | ADAJUSA : price
Pneumatic Limit switchs

Limit switch 3/2 strut pneumatic NO side fittings diameter 4 mm - Aignep

Aignep
02VG03NOX1
€19.63 (€16.22 tax excl.)
Limit switch pneumatic strut pneumatic of 3 way and 2 positions, monostable, normally open (NO) and fittings located on the side for tube outer diameter of 4 mm. Prepared for mounting with emergency push button or similar. Series: 02VPart no.: 02VG03NOX1 Representative image for illustrative purposes, the item supplied will correspond to the...

Customers who bought this product also bought:

Mini connector LS 12A coil 24Vcc auxiliary contact open NA Mini connector LS 12A coil 24Vcc auxiliary contact open NA 2
Mini-connectors and accessories

Mini connector 12A coil 24Vcc open auxiliary contact NA - LS

LS Electric
97GMD12MD24A
€31.17 (€25.76 tax excl.)
Electric three-phase mini connector for motor control, heating, lighting, ventilation, or general uses, 3 pole with a current capacity of 12A AC3 category or 20A category AC1, with 24Vdc coil, the contactor is equipped with an open auxiliary contact (NA). Ref: GMD-12M DC24V 2W 1a Representative image for illustrative purposes, the item...

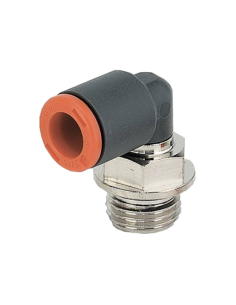

Cylindrical swivel elbow fitting 1/8 tube 6
