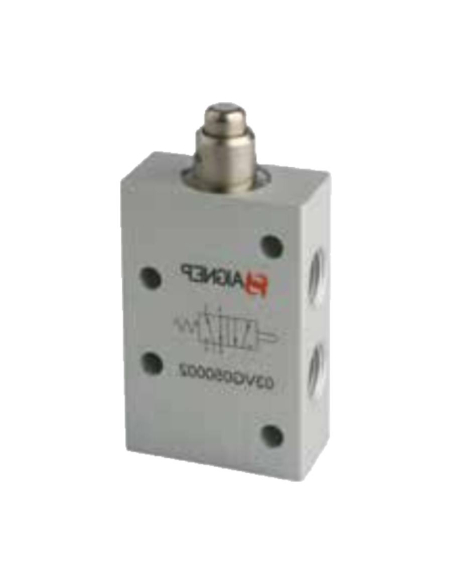

Limit switch 1/8 5/2 strut pneumatic - monostable with spring-return - Aignep

Name: Limit switch 1/8 5/2 strut pneumatic - monostable with spring-return - Aignep
Brand: Aignep
SKU: 03VG050002
Price: 27.2734 EUR
Availability: PreOrder

€27.27 Tax included

€22.54 tax excl.

Limit switch pneumatic of 1/8 5 way and 2 positions, for mounting with emergency push button or similar. Actuated by spring return mechanical strut.

Series: 03V
Reference: 03VG050002

Logotipo Aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Limit switch pneumatic 1/8 5 way and 2 positions, monostable, actuated by spring return mechanical strut. Limit switch connections are by 1/8" thread (fittings located on the side of the valve).

Manufacturer: Aignep

Part number: 03VG050002
Valve body: anodized aluminum
Spring material: stainless steel
Seals: NBR
Actuating force: 39,2 N
Operating pressure: 2 ÷ 10
Operating temperature °C: -10 ÷ +60
Flow rate at 6 bar ΔP 1 bar Nl/min: 350

03vg050002

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

AIGNEP 03V series catalog

Download (4.14MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Limit Switch 1/8 5-way strut tyre - Metal Work

Metal Work

7001000110

€29.87 (€24.69 tax excl.)

limit switch pneumatic drive with pushbutton drive, 1/8" 5-way mechanical drive. Drive by mechanical strut spring return. Reference: MEV 25 TAS OO - 7001000110 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pneumatic Limit switchs

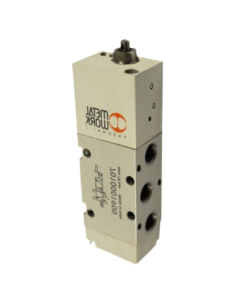

Pneumatic limit switch 1/8 5/2 for panel actuators - Metal Work
