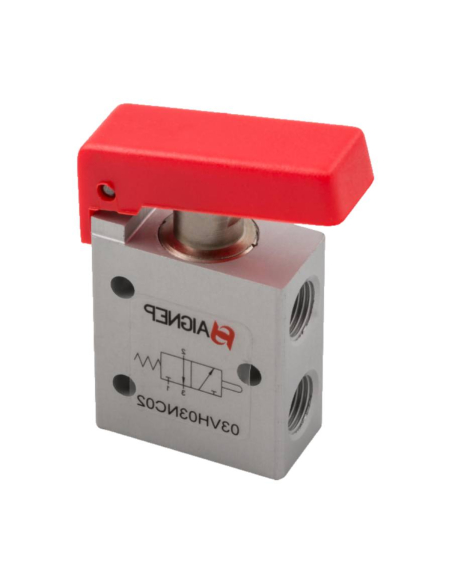

Limit switch push button pneumatic red 1/8 3/2 NC monostable with spring-return - Aignep

€28.71 Tax included

23.73 tax excl.

03VH03NC02

Limit switch pneumatic 1/8 3 way and 2 positions, for mounting with emergency push button or similar. The limit switch is actuated by means of the red push button.

Series: 03V
Part number: 03VH03NC02

esquemapulsador Logotipo Aignep NORMATIVAMICROVALVULA

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch pneumatic 1/8 3 way and 2 positions, normally closed closed (NC), monostable, mechanically operated by red push button. Limit switch connections are by 1/8" thread (fittings located on the side of the valve).

Manufacturer: Aignep

  • Part number: 03VH03NC02
  • Valve body: anodized aluminum
  • Spring material: stainless steel
  • Seals: NBR
  • Actuating force: 7,8 N
  • Operating pressure: 2 ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 350


03VH03NC02

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

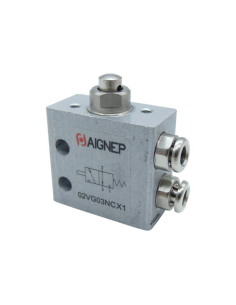

Limit switch pneumatic strut 3/2 NC side fittings diameter 4 mm - Aignep | ADAJUSA : price
