Limit Switch pneumatic roller 3/2 NC M5 W3501001211 Metal Work | ADAJUSA | price

Limit Switch pneumatic roller 3/2 NC side fittings diameter M5 - Metal Work

Name: Limit Switch pneumatic roller 3/2 NC side fittings diameter M5 - Metal Work
Brand: Metal Work
SKU: W3501001211
Price: 21.89 EUR
Availability: BackOrder

€21.89 Tax included

€18.09 tax excl.

W3501001211

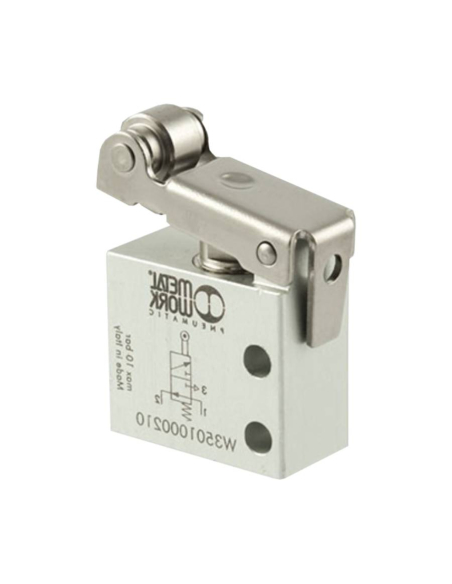

Limit Switch pneumatic with roller drive, fittings located on the side, for 5M outer diameter tube. The valve type of the limit switch is normally closed (NC).

Reference: W3501001211

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

limit switch metal roller drive tire, with integrated quick-connect fittings for 4mm outer diameter tube. The state of the valve of the limit switch at rest is normally closed, that is, without pressing there is no presence of air in the exit, the air can not pass, when it is activated, it lets the air pass and there is pneumatic pressure at the outlet.

Manufacturer: Metal Work
Valve type: 3/2 Normally closed (NC).
Type of limit switch drive: Metal roller.
Manufacturer reference: W3501001211 - VME2-12 NC M5
Reduced drive force.
Signal speed and pressure.
Mechanical drive.
Material type: metallic.
Fittings: fast for tube diameter 4mm side connection.
Installation: in any position.
Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
Working pressure (bar): 0.5 ÷ 10
Working temperature (°C): -10° ÷ +60
Nominal diameter (mm) 2.5
Conductance C (Nl/min · bar): 16.5
Critical ratio b (bar/bar): 0.03
Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
Capacity at 6 bar ΔP 1 bar (Nl/min): 60
Strut drive force at 6 bar (N): 8
Lubricant recommended: ISO and UNI FD22

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Minivalves

Download (794.37KB)
