Pneumatic logic valve function NO Metal Work - ADAJUSA
Pneumatic logic valve function NO Metal Work - ADAJUSA

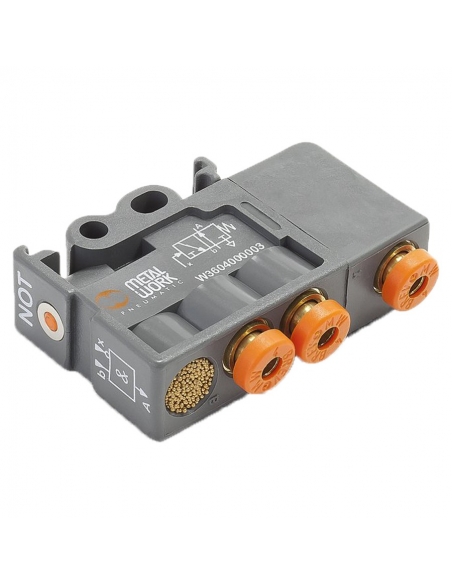

Pneumatic logic valve function NOT - Metal Work

€29.31 Tax included

€24.22 tax excl.

W3604000003

Pneumatic logic valve function "NOT" with built-in quick fittings for 4mm diameter tube.

Reference: W3604000003

Logotipo Metal Work


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic logic valve function "NOT", with built-in quick fittings for tube of diameter 4mm. fixation by through screws or for din-rail.

Manufacturer: Metal Work.

Manufacturer reference: W3604000003

Technical features:

  • Valve type: "NO" logic function.
  • Type of fittings: Quick connection Ø4.
  • Type of material: Technopolymer.
  • Working pressure: 0 to 8 bar, piloting pressure from 1.5 to 8 - 0.4 switching threshold at 6 bar
  • Nominal diameter: 2.7 mm.
  • Flow rate at 6 bar: 100 Nl/min.
  • Fluid: Compressed air filtered with or without lubrication.
  • Installation: In any position.
  • Mounting: In DIN profile or by means of through screws diameter 4.2mm.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

10 other products in the same category:

Customers who bought this product also bought:

Transducer for clean water 0-10bar TSP-10-1/4 TOSCANO | ADAJUSA
Shipping time: 3-5 days
Vacuum switches, pressure switches and flowmeters

Pressure transducer 0 to 10 bar TSP-10-1/4 - Toscano

Toscano
TSP-10-1/4
€160.95 (€133.02 tax excl.)
Pressure transducer designed for applications where air and water are used. Range from 0 to 10 bar, power supply 10 - 30Vdc, output 4 - 20mA. Compatible with the most aggressive liquids. G ¼” M thread. Reference: TSP-10-1/4 Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.
Pressure switch 1/8 no with protective head - ADAJUSA
  • Pack
Vacuum switches, pressure switches and flowmeters

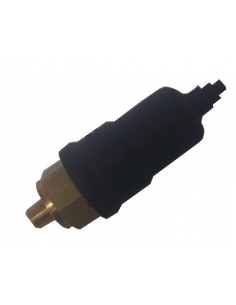

Pressure switch 1/8 open contact with protection head
