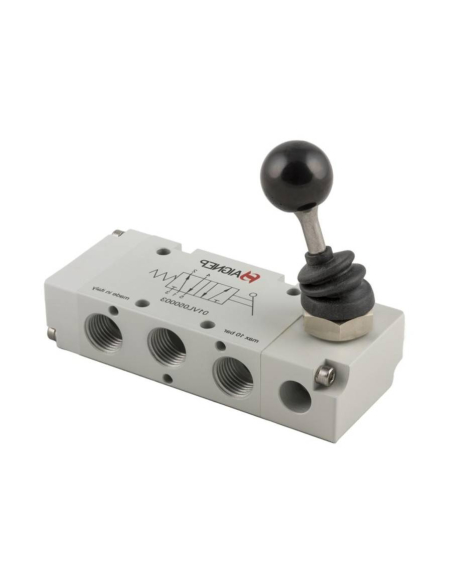

Manual Lever Valve monostable 1/8 5/2 lever 90 degrees - Aignep

Name: Manual Lever Valve monostable 1/8 5/2 lever 90 degrees - Aignep
Brand: Aignep
SKU: 01VL050002
Price: 41.8297 EUR
Availability: InStock

€41.83 Tax included

€34.57 tax excl.

1/8 valve manually operated monostable by lever. 5 way 2 fixed positions. For control of cylinders of simple effect. Made of anodized and painted aluminum.

Series: 01V
Part number: 01VL050002

Logotipo Aignep iconos-válculas aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Valve 1/8 manually operated by lever monostable of 5 way and 2 fixed positions, which allow to control cylinders of simple effect. In one position the cylinder is retracted, in another position the cylinder moves forward. It can also be used as a shut-off valve or pneumatic circuit breaker.

Actuated by 90º angular lever.

Manufacturer: Aignep

Part number: 01VL050002
Operating Pressure: Vacuum ÷ 10
Operating Temperature °C: -10 ÷ +60
Panel mounting: M16x1
Flow rate at 6 bar ΔP 1 bar Nl/min: 740

52 dimensiones T1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"

Catálogo válvulas Aignep

Download (8.44MB)
