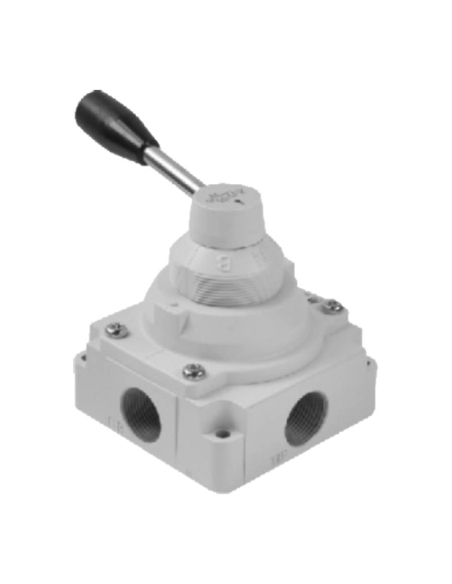

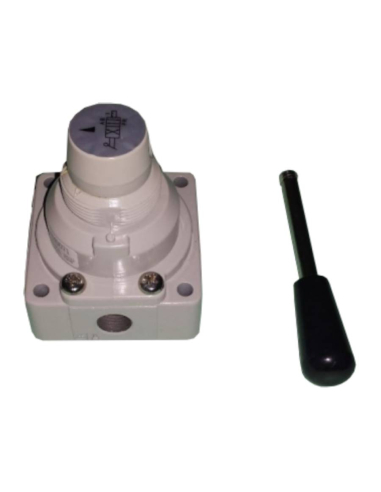

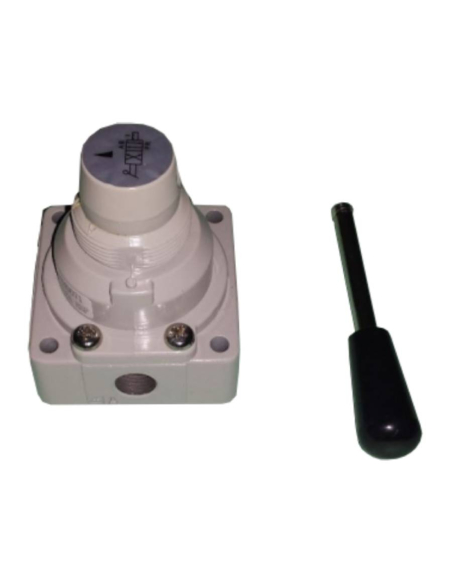

Valve 1/2 4-way 3 positions c.c. Rotary lever Size 3 - Mindman
Valve 1/2 4-way 3 positions c.c. Rotary lever Size 3 - Mindman

Valve 1/2 4-way 3 positions c.c. Rotary lever Size 3 - Mindman

€43.97 Tax included

€36.34 tax excl.

Valve of 1/2 manual drive by rotary lever. 4 ways 3 positions, closed centers, metal body. For control of double effect cylinders.

Reference: 281MVHC4004H15A


https://rodavigo.net/datos/logos-marcas-png/th_mindman.pngRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


1/2 manual drive valve by 4-way rotary lever,3 fixed positions, which allow to control double-effect cylinders.

The valve has 3 stable positions, in one of them the cylinder advances, in the middle, the cylinder stops but maintains pressure (force), and in the other position the cylinder is collected.

It can also be used as a step or cut valve and for general use.

Fastening by through screws or transpanel mounting with front nut fastening. Mounting accessories not included in the supply.

Technical characteristics:

  • Manufacturer: Mindman.
  • Reference: MVHC-400-4H-15A.
  • Configuration: 4 ways 3 fixed positions closed centers.
  • Thread type: G 1/2".
  • Effective surface: 64mm2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0 to 10 Kgr.
  • Working temperature: -5o to +60o (Non-condensing).
  • Screw fastening: 4 through holes 7mm.
  • Nut fixing: M50x1.5mm nut (Not included).
  • Valve body material: Metal.
  • Weight: 1250 g.

For other models consult. You can download the catalog by clicking on the DOWNLOADS tab.

Dimensiones válvula rotatoria mindman 1/2" MVHC-400-4H-10A
