Valve 1/2 4-way 3 positions e.g. rotary lever Size 3 - Mindman

€48.33 Tax included

€39.94 tax excl.

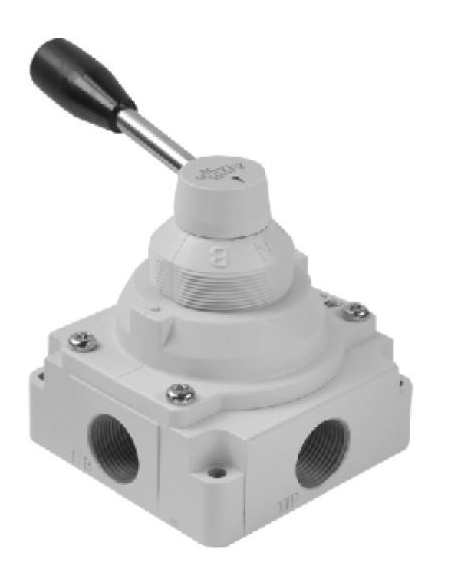

Valve of 1/2 manual drive by rotary lever. 4-way 3 positions, escape centers, metal body. For control of double effect cylinders.

Reference: 281MVHC4014H15A

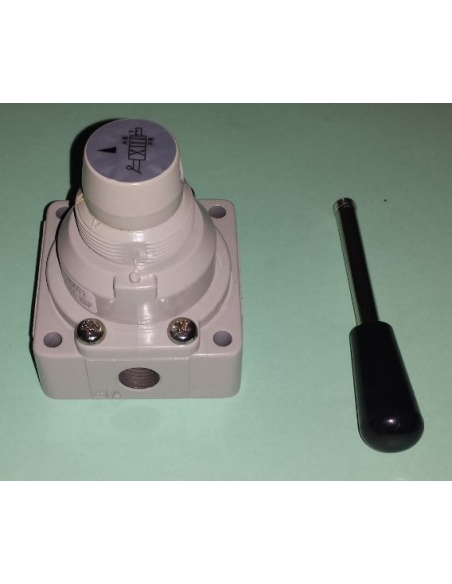

https://rodavigo.net/datos/logos-marcas-png/th_mindman.pngRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/2 manual drive valve by 4-way rotary lever,3 fixed positions, which allow to control double-effect cylinders.

The valve has 3 stable positions, in one of them the cylinder advances, in the middle, the cylinder runs out of pressure (force), and in the other position the cylinder is collected.

It can also be used as a step or cut valve and for general use.

Fastening by through screws or transpanel mounting with front nut fastening. Mounting accessories not included in the supply.

Technical characteristics:

  • Manufacturer: Mindman.
  • Reference: MVHC-401-4H-15A.
  • Configuration: 4-way 3 fixed positions exhaust centers.
  • Thread type: G 1/2".
  • Effective surface: 64mm2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0 to 10 Kgr.
  • Working temperature: -5o to +60o (Non-condensing).
  • Screw fastening: 4 through holes 7mm.
  • Nut fixing: M50x1.5mm nut (Not included).
  • Valve body material: Metal.
  • Weight: 1250 g.

For other models consult. You can download the catalog by clicking on the DOWNLOADS tab.

Dimensiones válvula neumática mindman manual 3/4 centros escape
