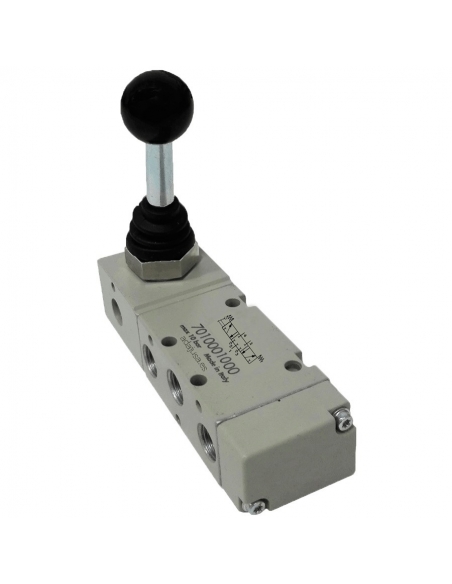

Manual lever valve 1/2 5/3 fixed positions exhaust centers - Metal Work

€179.47 Tax included

€148.32 tax excl.

Valve of 1/2 manual lever drive. 5 ways 3 positions, exhaust centers, 3 fixed positions, the valve changes position when the lever is actuated and remains in it until it is changed position, metal body. For control of double effect cylinders.

Reference: 7030000600

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve of 1/2 manual operation by lever of 3 positions, centers in exhaust, 3 fixed positions, the valve changes position when the lever is activated and remains in it until it changes position, for control of cylinders of double effect, the valve has 3 positions, in one of them the cylinder advances, in the central, the cylinder runs out of pressure (force), and in the other position the cylinder is collected.

It can also be used as a step or cut valve and for general use


Specifications:

  • Manufacturer: Metal Work.
  • Reference: MAV 46 LEO OC
  • Code: 7030000600.
  • Fluid: Pressurized or vacuum air, with or without lubrication.
  • Valve Body: aluminum.
  • Sliding material: Nickel-plated aluminum.
  • Joints: NBR.
  • number of tracks: 5.
  • Size: 1/2".
  • Positions: 3 escape centers.
  • Control: By lever.
  • Working pressure: Vacuum÷10 bar.
  • Temperature: -10÷60ºC.
  • Nominal diameter: 15
  • Conductance C (Nl/min · bar): 971.43
  • Critical ratio b (bar/bar): 0.43
  • Flow rate at 6bar ΔP 0.5bar: 3200Nl/min.
  • Flow rate at 6bar ΔP 1bar: 4600 Nl/min.
  • Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
