Manual lever valve 1/2 5/3 centers escape return spring lever 90 degrees - Metal Work

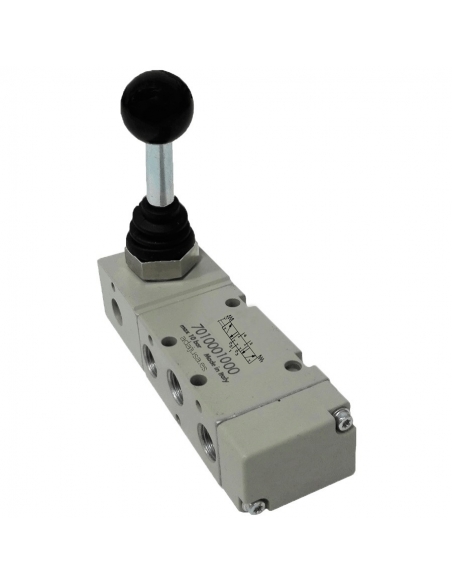

Valve of 1/2 manually operated by lever of 3 positions, centers in exhaust, spring return, the valve is activated when the lever is actuated and returns to the resting position when the lever stops being activated, for control of double effect cylinders, the valve has 3 positions, in one of them the cylinder advances, in the plant, the cylinder stops but maintains pressure (force) not letting the air present in its outlets escape, and in the other position the cylinder is collected.

It can also be used as a step or cut valve and for general use

Specifications:

• Manufacturer: Metal Work.
• Reference: MAV 46 LES OC
• Code: 7030000900.
• Fluid: Pressurized or vacuum air, with or without lubrication.
• Valve Body: aluminum.
• Sliding material: Nickel-plated aluminum.
• Joints: NBR.
• number of tracks: 5.
• Size: 1/2".
• Positions: 3 escape centers, return by spring.
• Control: By lever.
• Working pressure: Vacuum÷10 bar.
• Temperature: -10÷60ºC.
• Nominal diameter: 15
• Conductance C (Nl/min · bar): 971.43
• Critical ratio b (bar/bar): 0.43
• Flow rate at 6bar ΔP 0.5bar: 3200Nl/min.
• Flow rate at 6bar ΔP 1bar: 4600 Nl/min.
• Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
