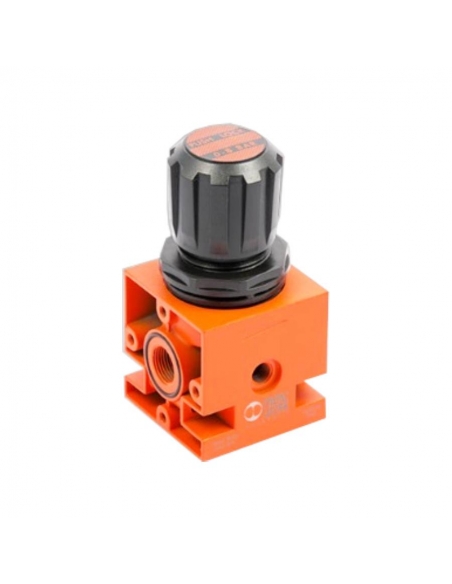

Pressure regulator 1/2 0-12 metal bar - Metal Work

€50.13 Tax included

€41.43 tax excl.

1402003

Pressure regulator of 1/2 regulation 0-12 Kgrs, with extreme reliability and robust metal body. It allows stability of the outlet pressure to the preset pressure. Possibility of fixing by side drills.

The pressure gauge must be ordered separately.

Reference: 1402003 - REG 1/2 012

Simbolo neumático regulador de presión

Logotipo Metal Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pressure regulator of 1/2 0-12 Kgrs, extremely reliable and robust metal body. It allows stability of the outlet pressure at the predetermined pressure starting from an inlet pressure equal to or higher. Possibility of fixing by means of side drills.

specifications.

  • Manufacturer: Metal Work
  • Reference: 1402003.
  • Threaded connection size: 1/2".
  • Regulation range: 0-12 bar.
  • Maximum inlet pressure: 18 bar.
  • Flow rate: 2500Nl/min.
  • Fluid: Air filtering, with or without lubrication.
  • Wall fastening screws: M4x55.
  • Pressure gauge connection: 1/8".

For other models or sizes consult.

dimensiones regulador presion neumatico

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Metal filter group (Filter + Lubricator) Metal Work - ADAJUSA
Filter groups 1/2

Pneumatic filter group 1/2 regulation 0-12 bar semi-automatic purge New Deal series -...

Metal Work
1426054
€124.63 (€103.00 tax excl.)
1/2 filter group, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size in 2 modules (FR+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.Series: New DealReference: 1426054 Representative image for...
Pressure gauge 50 1/8 0-12 Kgr plastic box
Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP5318012
€5.71 (€4.72 tax excl.)
Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...

16 other products in the same category:

Filter-regulator 1/2 metallic New Deal - Metal Work ADAJUSA
Filter groups of 1/2 FR-L

Filter-regulator 1/2 metal 0-12 bar automatic drain New Deal - Metal Work

Metal Work
1425058
€136.58 (€112.88 tax excl.)
Filter with 1/2 pneumatic pressure regulator, 1/2 maintenance unit for pneumatic applications, automatic drain, regulation 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of aluminum with excellent resistance to corrosion. European manufacturing. Series: New Deal Reference: 1425058 Representative image for illustrative purposes,...

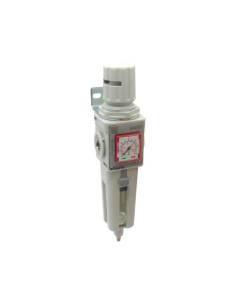

Pneumatic filter regulator 1/2 complete semi-automatic purge EVO series - Aignep | ADAJUSA | price Pneumatic filter regulator 1/2 complete semi-automatic purge EVO series - Aignep | ADAJUSA | price 2
