Lockable pressure regulator 1/2 012 bar New Deal - Metal Work

€69.45 Tax included

€57.40 tax excl.

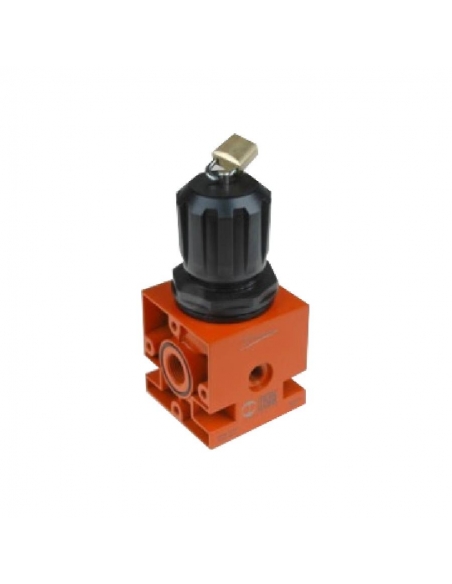

Lockable pressure regulator of 1/2 regulation 0-12 bar, with padlock closure. New Deal Group

Reference: 1410014



metal work logo




Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.



No queries yet, leave the first!
Privacy
Shipments
Returns


Lockable pressure regulator of 1/2 regulation 0-12 bar , with padlock closure. New Deal Group. It has a pin hole projecting from the top of the knob, when the knob is in the "push-lock" position the padlock can be inserted into the hole. The padlock and two keys are supplied with the regulator.

Refer to regulator for technical data and flow curves.

Technical characteristics.

  • Manufacturer: Metal Work
  • Reference: 1410014
  • Threaded connection size: 1/2.
  • Regulation range: 0-12 bar .
  • Maximum inlet pressure: 18 bar .
  • Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 1100
  • Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) (Nl/min): 2500
  • Maximum temperature: 50ºC.
  • Mounting position: any position.
  • Fluid: Air filtering, with or without lubrication (continuous lubrication)
  • Wall fixing screws: M4x55.
  • Pressure gauge connection: 1/8".

For other models or sizes consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
