Open contact NO screw connection - NY Series
Open contact NO screw connection - NY Series

Open contact NO screw connection - NY Series

€1.15 Tax included

€0.95 tax excl.

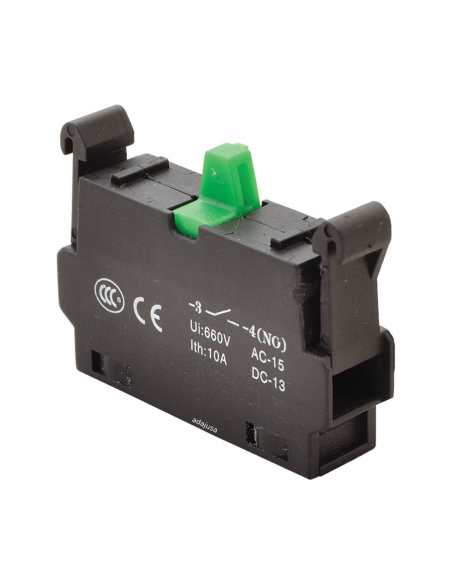

Open contact for plastic pushbuttons and selector switches, suitable for Tracon's NYG3 and NYK3 series. Screw connection.


Reference: NYG3-CE1

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Open contact for mounting on plastic pushbuttons and selectors, suitable for Tracon's NYG3 and NYK3 series switches. It is easily installed or replaced and connects to control circuits via screw terminals.



Characteristics:

  • Manufacturer: TRACON
  • Reference: NYG3-CE1
  • Contact type: Open (1NO)
  • Nominal working current Ie (AC 1, 230V): 6A
  • Nominal working current Ie (AC 15, 230V): 3A
  • Nominal working current Ie (DC 13, 250V): 0.27A
  • Nominal insulation voltage Ui: 660V
  • Mechanical durability: 1,000,000 cycles
  • Protection class: IP65 (from the front side)
  • Operating temperature: -25 to +40ºC
  • Cable connection: Screw



Professional use material, install in compliance with the regulations in force at the place of installation.
