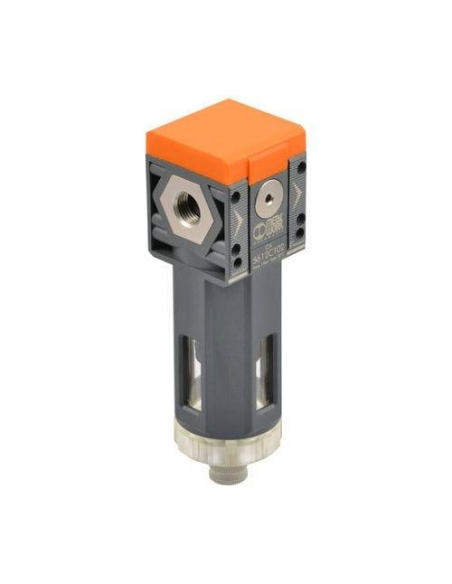

Filter 1/2 20 RA Size 2 Syntesi Metal Work - ADAJUSA
Filter 1/2 20 RA Size 2 Syntesi Metal Work - ADAJUSA

Filter 1/2 20 microns automatic drain size 2 Syntesi series - Metal Work

€58.14 Tax included

€48.05 tax excl.

1/2 filter, with a filtration degree of 20μm and automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.

Series: Synthesis
Reference: 5624F504

metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/2 filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the air compressor. Compact size (SY2). The type of purge is automatic, it discharges when the pressure in the filter approaches zero.

 Characteristic:

  • Manufacturer: Metal Work
  • Manufacturer reference: 5624F504
  • Threaded drive: 1/2"
  • Group Size: Size 2
  • Filtered degree: 20 μm
  • Maximum inlet pressure ( bar /Mpa/psi): 13 / 1.3 / 188
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 3800
  • Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 5200
  • Fluid: Compressed air or other inert gases
  • Bowl capacity (condensation) (cm3): 70
  • Flow rate of additional air intakes at 6.3 bar (Nl/min): 1500
  • Wall fixing screws: Number 2 M5 screws
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pressure gauge 50 1/8 0-12 Kgr plastic box
Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP5318012
€6.17 (€5.10 tax excl.)
Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...
Pressure regulator 1/4 0-12 bar technopolymer - Metal Work
Filter groups of 1/2 FR-L

Regulator pressure 1/2 0-12 bar size 2 technopolymer Syntesi - Metal Work

Metal Work
5624R164
€44.13 (€36.47 tax excl.)
Pressure regulator of 1/2 regulation 0-12 Kgrs, body in technopolymer extreme reliability. It allows stability of the output pressure to the predetermined pressure. Possibility of fixing by means of side drills. Padlock locking system. Syntesi Group. Manometer not included (can be ordered separately)Reference: 5624R164 Representative image for...

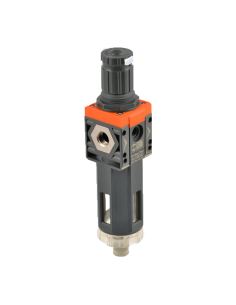

Filter-regulator 1/2 T2 Syntesi - Metal work - ADAJUSA
Filter groups of 1/2 FR-L

Pneumatic filter-regulator 1/2 0-12 bar automatic drain Syntesi series - Metal Work

Metal Work
5624B564
€79.13 (€65.40 tax excl.)
Filter with 1/2 pneumatic pressure regulator, 1/2 maintenance unit for pneumatic applications, automatic drain, compact size (SY2) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series: SynthesisReference:...

16 other products in the same category:

Regulator pressure with... Regulator pressure with... 2
  • Pack
Filter groups of 1/2 FR-L

Regulator pressure with pressure gauge and lockable 1/2 0-8 bar complete size 2 FRL EVO...

Aignep
PK-Y020205030000
€46.91 (€38.77 tax excl.)
Regulator with integrated 1/2 fullpressure gauge , with regulation between 0-8 bar, size 2, technopolymer body and metal endings, extreme reliability. Allows stability of the outlet pressure at the preset pressure. Possibility of fixing by means of lateral holes. Padlocking system. Made in Italy. Series: FRL Evo Reference: PK-Y020205030000...
Pneumatic filter-regulator...
Filter groups of 1/2 FR-L

Pneumatic filter-regulator 1/2 0-12 bar semi-automatic purge size 2 FRL EVO series -...

Aignep
Y030205241000
€61.50 (€50.83 tax excl.)
Filter with pneumatic pressure regulator 1/2, maintenance unit 1/2 for pneumatic applications, semi-automatic purge, compact size (T2) and regulation range 0-12 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy.Series: FRL Evo Reference: Y030205241000 Representative image for...
Pneumatic filter-regulator... Pneumatic filter-regulator... 2
  • Pack
Filter groups of 1/2 FR-L

Pneumatic filter-regulator 1/2 0-12 bar complete semi-automatic purge size 2 FRL EVO...

Aignep
PK-Y030205241000
€62.57 (€51.71 tax excl.)
Pneumatic pressure filter-regulator with pressure gauge 1/2, maintenance unit 1/2 for pneumatic applications, semi-automatic purge, compact size (T2) and regulation range 0-12 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy. Series: FRL Evo Reference: PK-Y030205241000...

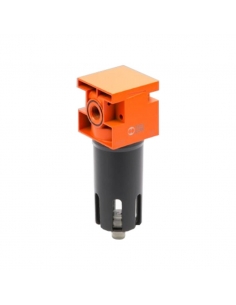

Filter 1/2 metallic New Deal - Metal Work - ADAJUSA
