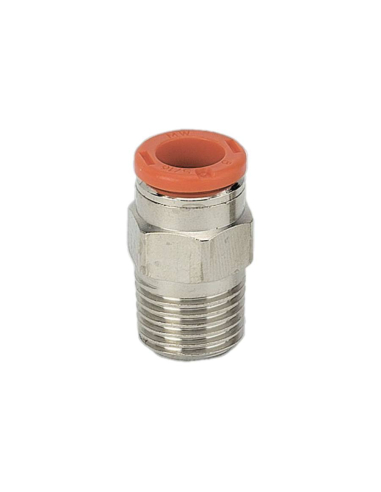

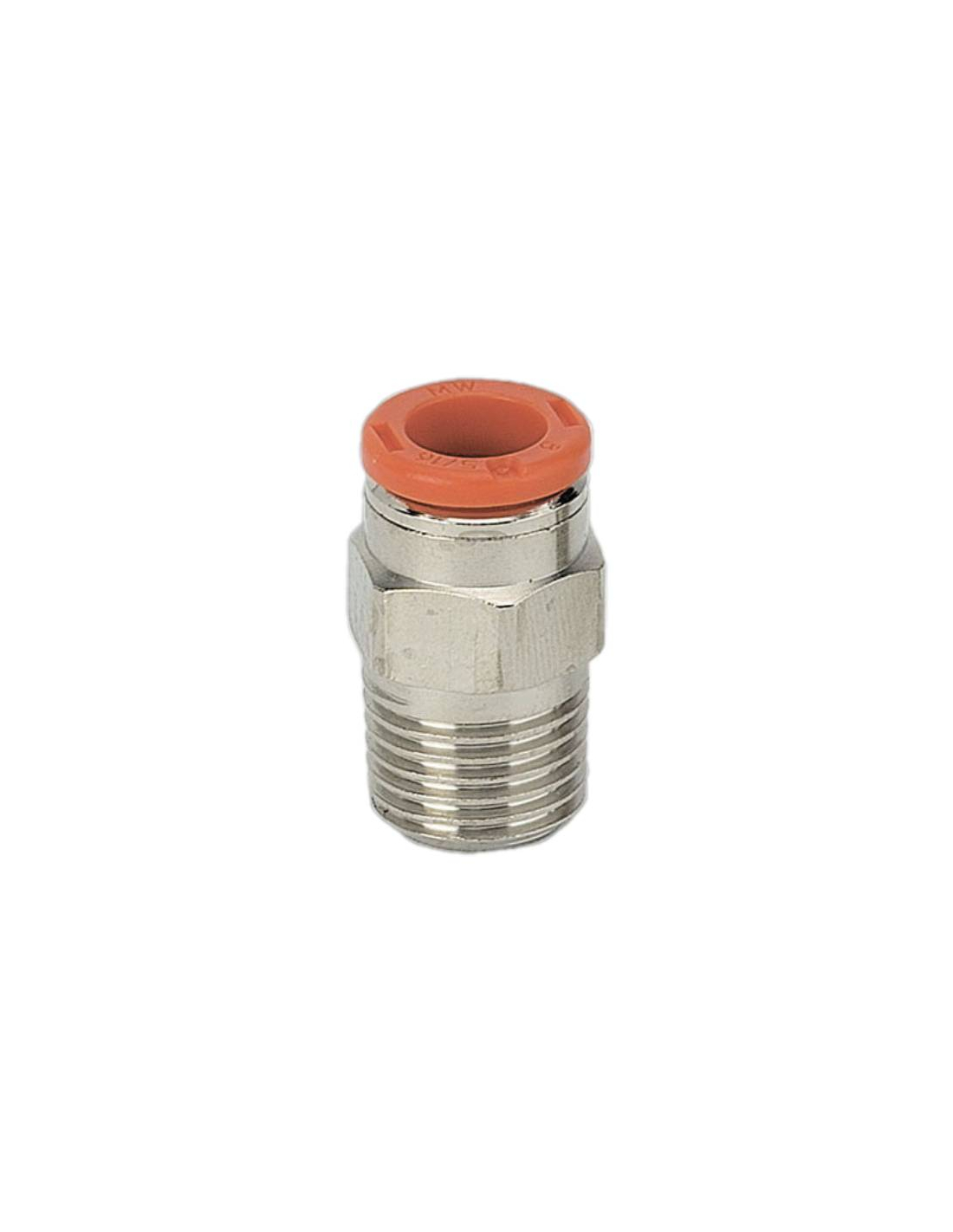

Automatic straight racor M5 tube 4mm - Metal Work

€1.57 Tax included

€1.30 tax excl.

Metal straight fitting with M5 thread for 4mm xExt tube. Male cylindrical thread, with toric gasket included. Fast, very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Manufacturer: METAL WORK.

Reference: 2L01001

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


M5 male straight fitting for 4mm. Very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring, turn the tube on without engraving or deforming it allowing for greater simplicity in the operation of disenging or disconnecting the tube fitting. In the fittings the fitting ring has screwdriver slots for easy disconnection in finger-inaccessible applications.

  • Manufacturer: Metal Work.
  • Manufacturer's reference: 2L01001.
  • Thread: M5 Cylindrical.
  • Tubeexterior: 4mm.
  • Fluid: Vacuum - Compressed air.
  • Operating pressure: -0.99 bar to 16 bar.
  • Material: Chromed brass.
  • Retention gasket: NBR.
  • Clamping spring: stainless steel.
  • Working temperature: -20oC to +80oC.

For other references consult.

Dimensiones racores rectos METAL WORK



Material for professional use, install in compliance with the regulations in force at the place of installation.
