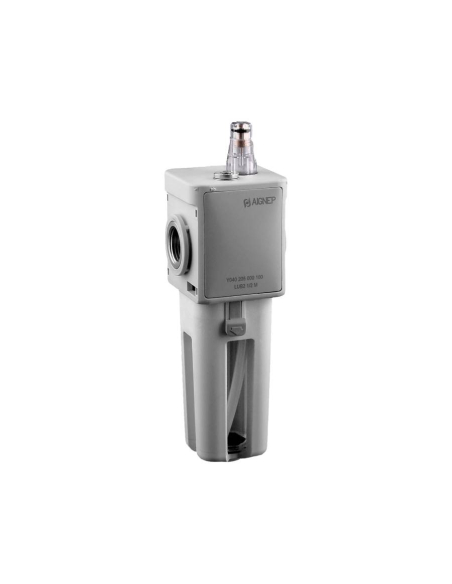

Lubricator 1 Manual Size 3 technopolymer series FRL EVO - Aignep

Lubricator 1 Manual Size 3 technopolymer series FRL EVO - Aignep

€52.79 Tax included

€43.63 tax excl.

1-piece pneumatic lubricating cup in compact size (T3) technopolymer and manual oil loading type. Made in Italy.

Series: FRL Evo
Reference: Y040309000100
Logo-Metal-Work Aignep logoregulations

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



No queries yet, leave the first!
Privacy
Shipments
Returns


1" pneumatic lubricating cup, to be coupled to a filtering unit or for independent use. The lubricating cup is made of high-resistance technopolymer.

The oil is filled manually, by opening the cap on the top of the lubricator or by unscrewing the cup, making sure that there is no pressure in the circuit. The oil in the circuit is regulated using a screwdriver on the cap screw, adjusting it to one drop every 300/600 Nl/min.


manual lubricator


The amount of oil can be measured accurately as the descent can be seen through the transparent glass.

The main application of this series of filter groups is pneumatic automation, compressed air circuits and installations and compressors.

Characteristics:

  • Manufacturer: Aignep
  • Manufacturer reference: Y040309000100
  • Thread Size: 1".
  • Group size: size 3.
  • Maximum inlet pressure: 13 bar .
  • Glass capacity: 151 cm3
  • Flow rate at 6 bar (∆P 1 bar ): 11700 Nl/min
  • Mounting screws: M6x15
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.
  • Recommended oil: CLASS ISO 22 ISO 3448 STANDARD
  • Mounting accessories: not included

For other sizes or references: consult.

Y040_FRL3_dimensions_table

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 6 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G6SOP
€15.54 (€12.84 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 6 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel needle....

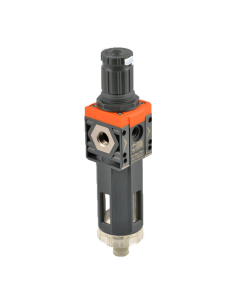

Filter-regulator 1" T2 Syntesi - Metal work - ADAJUSA
1 FR-L filter groups

Pneumatic filter-regulator 1 0-12 bar automatic drain Syntesi series - Metal Work

Metal Work
5626B566
€84.91 (€70.17 tax excl.)
Filter with 1 pneumatic pressure regulator, 1 maintenance unit for pneumatic applications, automatic drain, compact size (SY2) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series: SynthesisReference:...

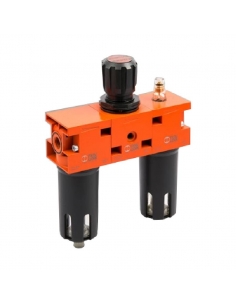

Filter + Regulator + Lubricator New Deal - Metal Work - ADAJUSA
Filter groups 1

Pneumatic filter group 1 regulation 0-12 bar semi-automatic purge New Deal series -...

Metal Work
1624030
€360.60 (€298.02 tax excl.)
Filter group of 1, maintenance unit of 1 for pneumatic applications, semi-automatic drain, in 3 modules (F+R+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.Series: New DealReference: 1624030 Representative image for illustrative...

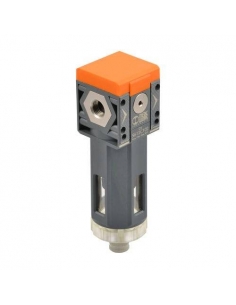

Filter 1 20 RA Size 2 Syntesi Metal Work - ADAJUSA
1 FR-L filter groups

Filter 1 20 microns automatic drain size 2 Syntesi series - Metal Work

Metal Work
5626F506
€71.73 (€59.28 tax excl.)
1" filter, with a filtration degree of 20μm and automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. Manufacturing European.Series: SynthesisReference: 5626F506Representative image for illustrative...
Pneumatic filter regulator...
1 FR-L filter groups

Pneumatic filter regulator 1 0-8 bar automatic drain size 3 FRL EVO series - Aignep

Aignep
Y030309232000
€115.35 (€95.33 tax excl.)
Filter with 1 pneumatic pressure regulator, 1 maintenance unit for pneumatic applications, automatic drain, compact size (T3) and regulation range 0-8 bar , filtration grade 20 μm. These filter units are made of technopolymer and with metal finishes. Made in Italy.Series: FRL EvoReference: Y030309232000 Representative image for illustrative purposes, the...
Pneumatic filtering unit 1... Pneumatic filtering unit 1... 2
1 FR-L filter groups

Pneumatic filtering unit 1 regulation 0-8 bar automatic drain size 3 FRL EVO series -...

Aignep
Y100309232100
€175.09 (€144.70 tax excl.)
1 filter unit, 1 maintenance unit for pneumatic applications, automatic drain, compact size (T3) in 2 modules (FR+L), and regulation range 0-8 bar , compact pressure gauge. These filter units are made of technopolymer and with metal finishes. Made in Italy. Series: FRL Evo Reference: Y100309232100 Representative image for illustrative purposes, the item...
Pressure gauge 50 1/8 0-12 Kgr plastic box
Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP5318012
€6.06 (€5.01 tax excl.)
Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...
Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 1.6 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G1.5SOP
€16.02 (€13.24 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 1,6 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel...
Filter + Lubricator T2 RMSA Syntesi - Metal Work - ADAJUSA Filter + Lubricator T2 RMSA Syntesi - Metal Work - ADAJUSA 2
1 FR-L filter groups

Pneumatic filter group 1 regulation 0-12 bar semi-automatic purge Syntesi series -...

Metal Work
5626B26L106
€119.83 (€99.03 tax excl.)
1" filter group, 1" maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY2) in 2 modules (FR+L) and regulation range 0-12 kg/cm2. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5626B26L106 Representative...
Filter 1 20 microns...
1 FR-L filter groups

Filter 1 20 microns semi-automatic purge size 3 EVO series - Aignep

Aignep
Y010309201000
€53.89 (€44.54 tax excl.)
1" filter, with a filtration degree of 20μm and semi-automatic discharge, size 3, for retention solid or liquid impurities from the air compressor. These filter vessels are made of technopolymer and with metal finishes. Made in Italy. Series: FRL Evo Reference: Y010309201000 Representative image for illustrative purposes, the item supplied will...
Pneumatic filtering unit 1... Pneumatic filtering unit 1... 2
1 FR-L filter groups

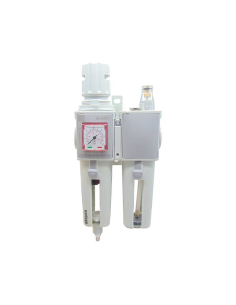

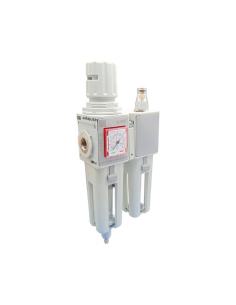

Pneumatic filtering unit 1 regulation 0-12 bar semi-automatic purge size 3 FRL EVO...

Aignep
Y100309241100
€150.38 (€124.28 tax excl.)
1 filter unit, 1 maintenance unit for pneumatic applications, semi-automatic drain, compact size (T3) in 2 modules (FR+L), and regulation range 0-12 bar , compact pressure gauge. These filter units are made of technopolymer and with metal finishes. Made in Italy. Series: FRL Evo Reference: Y100309241100 Representative image for illustrative purposes, the...
Pressure Regulator with...
1 FR-L filter groups

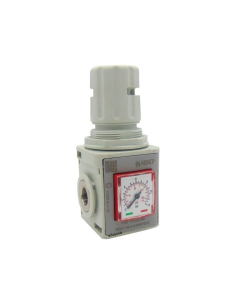

Pressure Regulator with pressure gauge and lockable 1 0-12 bar size 3 FRL EVO series -...
