1/2 metal pressure regulator - Metal Work

Regulator pressure 1 inch 0-12 bar metal New deal- Metal Work

Name: Regulator pressure 1 inch 0-12 bar metal New deal- Metal Work
Brand: Metal Work
SKU: 1602003
Price: 130.317 EUR
Availability: PreOrder

€130.32 Tax included

€107.70 tax excl.

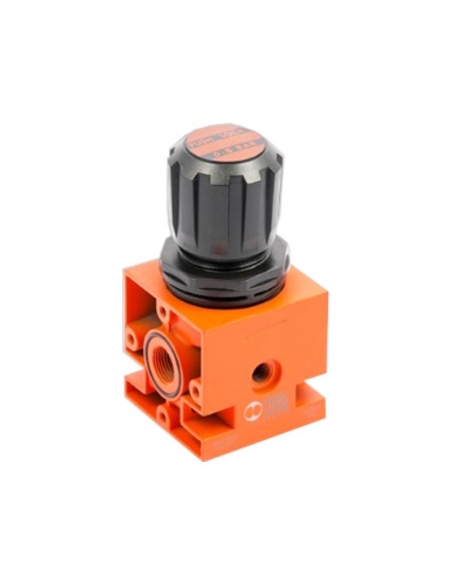

Pressure regulator of 1" regulation 0-12 Kgrs, extremely reliable and robust metal body. Allows stability of the output pressure to the preset pressure. Possibility of fixing by side holes.

The pressure gauge must be ordered separately.

Ref: 1602003 - REG 1 012

Simbolo neumático regulador de presión

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the indicated specifications.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Pressure regulator of 1" 0-12 Kgrs, extremely reliable and robust metal body. Allows stability of the output pressure at the pre-set pressure from an inlet pressure equal to or higher. Possibility of fixing by side holes.

Technical details.

Manufacturer: Metal Work
Reference: 1602003.
Threaded connection size: 1".
Regulation range: 0-12 bar.
Maximum input pressure: 18 bar.
Flow rate: 4500Nl/min.
Fluid: Air filtering, with or without lubrication.
Wall fixing screws: M6x75.
Meter connection: 1/4".

For other models or sizes consult.

dimensiones regulador presion neumatico

Material for professional use, install respecting the regulations in force in the place of installation.

Para ampliar la información puede descargar la ficha técnica pulsando sobre la pestaña "Adjuntos"

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Pneumatic filter group 1/4 regulation 0-12 bar semi-automatic purge serie New Deal -...

Metal Work

1226054

€88.33 (€73.00 tax excl.)

1/4 filter group, 1/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size in 2 modules (FR+L), regulation range 0-12 kg/cm2. Very high resistance in any type of environment, made of aluminum and plastic tanks with metal protection. European manufacturing. Series: New Deal Reference: 1226054 Representative image for...

Pressure gauge 50 1/8 0-12 Kgr plastic box

Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work

MWMP5318012

€6.17 (€5.10 tax excl.)

Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...

Clamping bracket bit series group - Metal Work

Accessories for filtration groups

Squadron clamping group syntesi T2 - Metal Work

Metal Work

9400701

€4.82 (€3.98 tax excl.)

Bracket for fixing filter group and pneumatic regulator of the syntesi series size 2. Reference: 9400701 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Valve + Filter + Lubricator T2 Syntesi - Metal Work - ADAJUSA

V3V + FR + LUB Syntesi

Filter group 1/2 with shut-off valve regulation 0-8 bar semi-automatic drain Syntesi...

Metal Work

5624V10B24L4

€157.97 (€130.55 tax excl.)

1/2 filter group with manual shut-off valve , 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY2) and regulation range 0-8 kg/cm2. Equipped with manual cut-off valve at the inlet. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European...

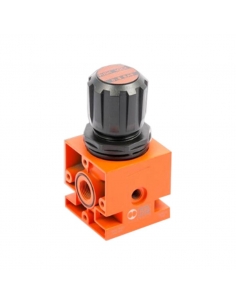

1" metallic pressure regulator - Metal Work - ADAJUSA
