1" metallic lubricator
1" metallic lubricator

Lubricator 1 metallic New deal - Metal Work

€136.86 Tax included

€113.11 tax excl.

1623001

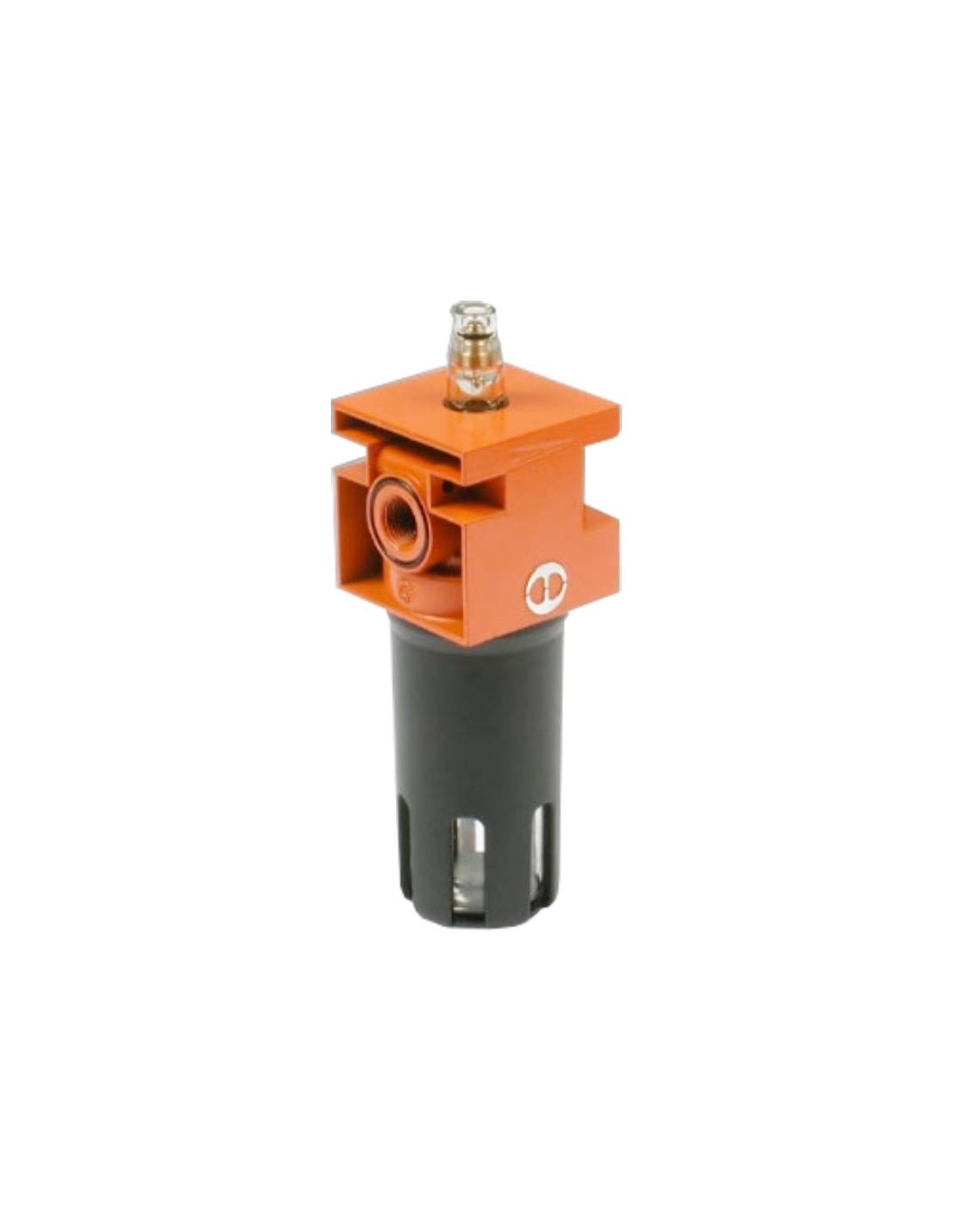

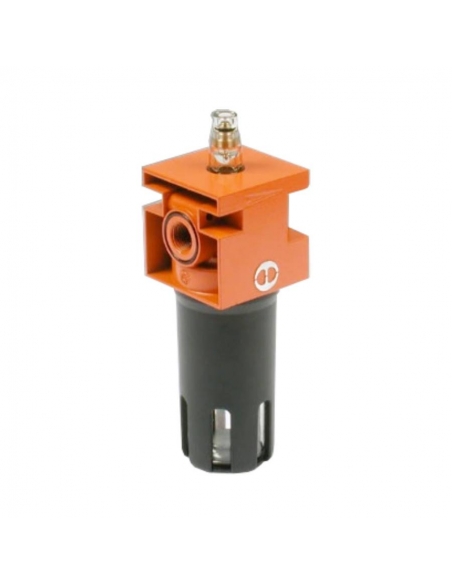

1" metal pneumatic lubricator cup. New Deal Group

Reference: 1623001

new deal lubricator scheme

metal work logo


Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1" pneumatic lubricator cup, with metal body.

Characteristic:

  • Manufacturer: Metal Work
  • Reference: 1623001
  • Micrometric regulation of lubrication.
  • 360° oil level display
  • Threaded drive: 1"
  • Lubrication Type: Fog
  • Cup capacity: 380 cm3
  • Maximum inlet pressure: 18 bar
  • Flow rate at 6 bar (0.6 MPa ÷ 87 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi): 12800 Nl/min
  • Flow rate at 6 bar (0.6 MPa ÷ 87 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) 16000 Nl/min
  • max temperature at 1 MPa; bar ; 145psi: 50ºC
  • Wall fixing screws: M6 x 75
  • Mounting position: upright
  • Fluid: filtered air

For other references or sizes consult.

dimensiones lubricador neumatico

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
