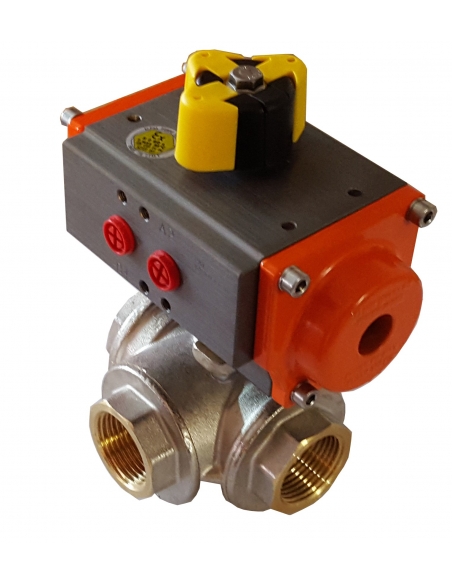

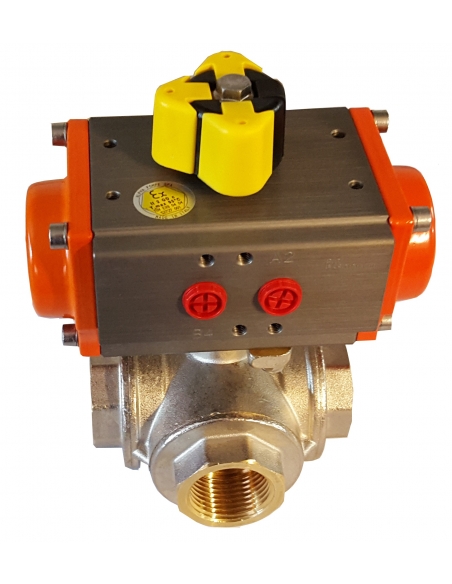

1/4 3/2-way "L" valve with pneumatic rotary actuator

Stainless steel T-valve 3/4 3/2-way with pneumatic rotary actuator - Metal Work

Name: Stainless steel T-valve 3/4 3/2-way with pneumatic rotary actuator - Metal Work
Brand: Metal Work
SKU: W0900300115
Price: 263.18 EUR
Availability: BackOrder

€263.18 Tax included

€217.50 tax excl.

W0900300115

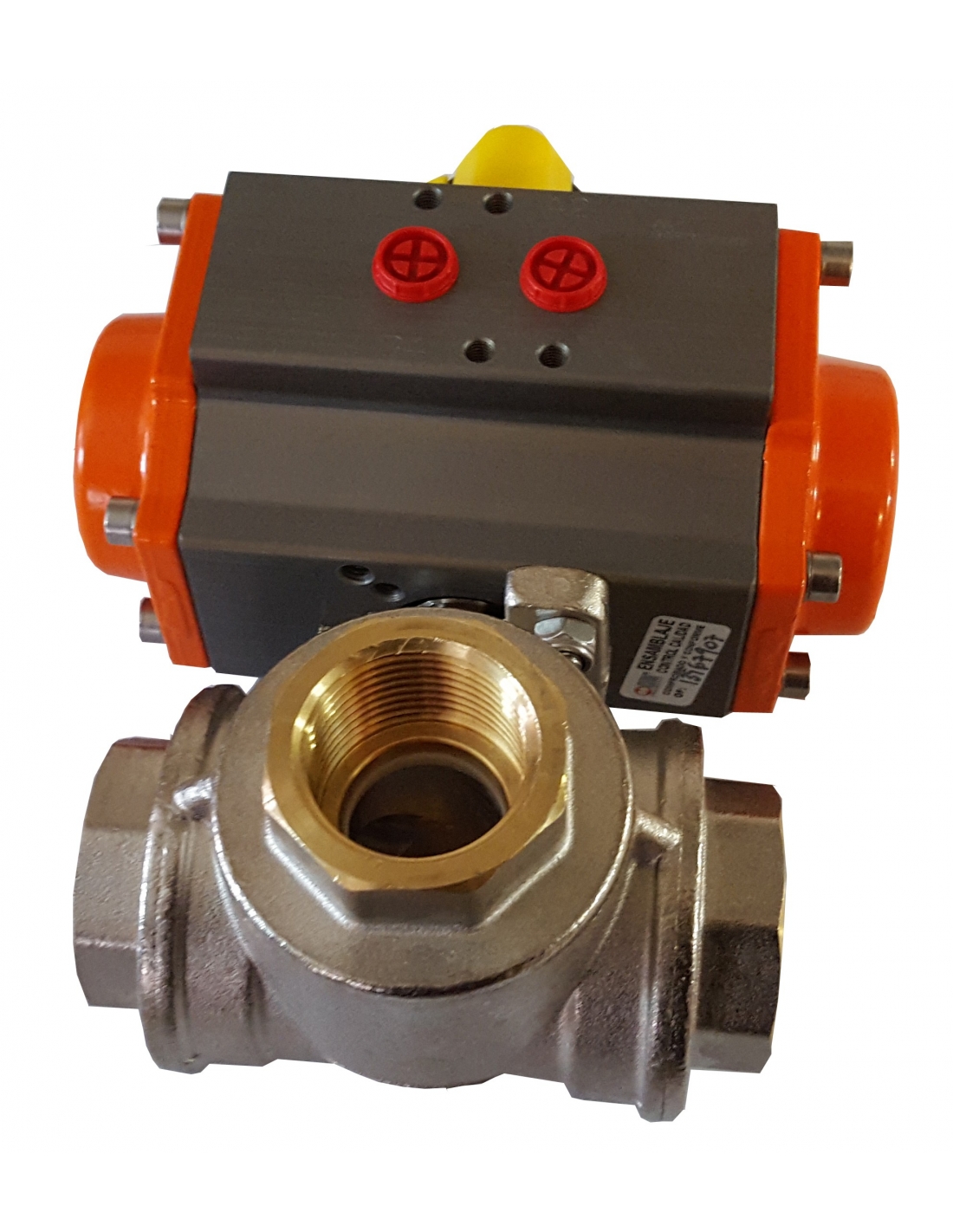

3/4" stainless steel ball valve, 3 way 2 positions, 3/2, "T" configuration, with double acting pneumatic rotary actuator. For control of air, gases or non-corrosive and non-flammable fluids. Valve made of stainless steel.

The valve has a manual activation control.

Valves with ATEX certification.

Part number: W0900300115

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

3/4" ball valve, 3 way 2 positions, 3/2, made of stainless steel, with "T" valve configuration, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a knob to operate the valve manually.

The configuration of the valve is in "T", in one position, the valve allows the passage from 1 to 2 or 1 to 1 remaining the 3 closed; in the other position, the passage is allowed between all the way.

Valves with ATEX certification.

Diagrama válvula en T de 3 Vías

Technical characteristics:

Manufacturer of the assembly: Metal Work
Manufacturer's reference: W0900300115
Type of actuator: Ø50 double acting pneumatic.
Valve type: 3 way 2 positions (3/2).
Valve configuration: "T" configuration.
Thread type: G 3/4" female
Valve body: AISI 316 stainless steel
Ball: Stainless steel AISI 316
Seals: PTFE.
Nominal pressure PN: 40 bar
Standard: ISO 5211 (direct mounting to actuator)
Temperature: -20ºC to +80ºC

Dimensiones valvulas con actuador neumático de 3 vías

Esquema montaje válvula 3 vías en L con actuador

Material for professional use, install in compliance with the regulations in force at the place of installation.
