Valve 1 1/4 2/2 ways stainless steel with pneumatic rotary actuator - Metal Work

€262.45 Tax included

€216.90 tax excl.

W0900300006

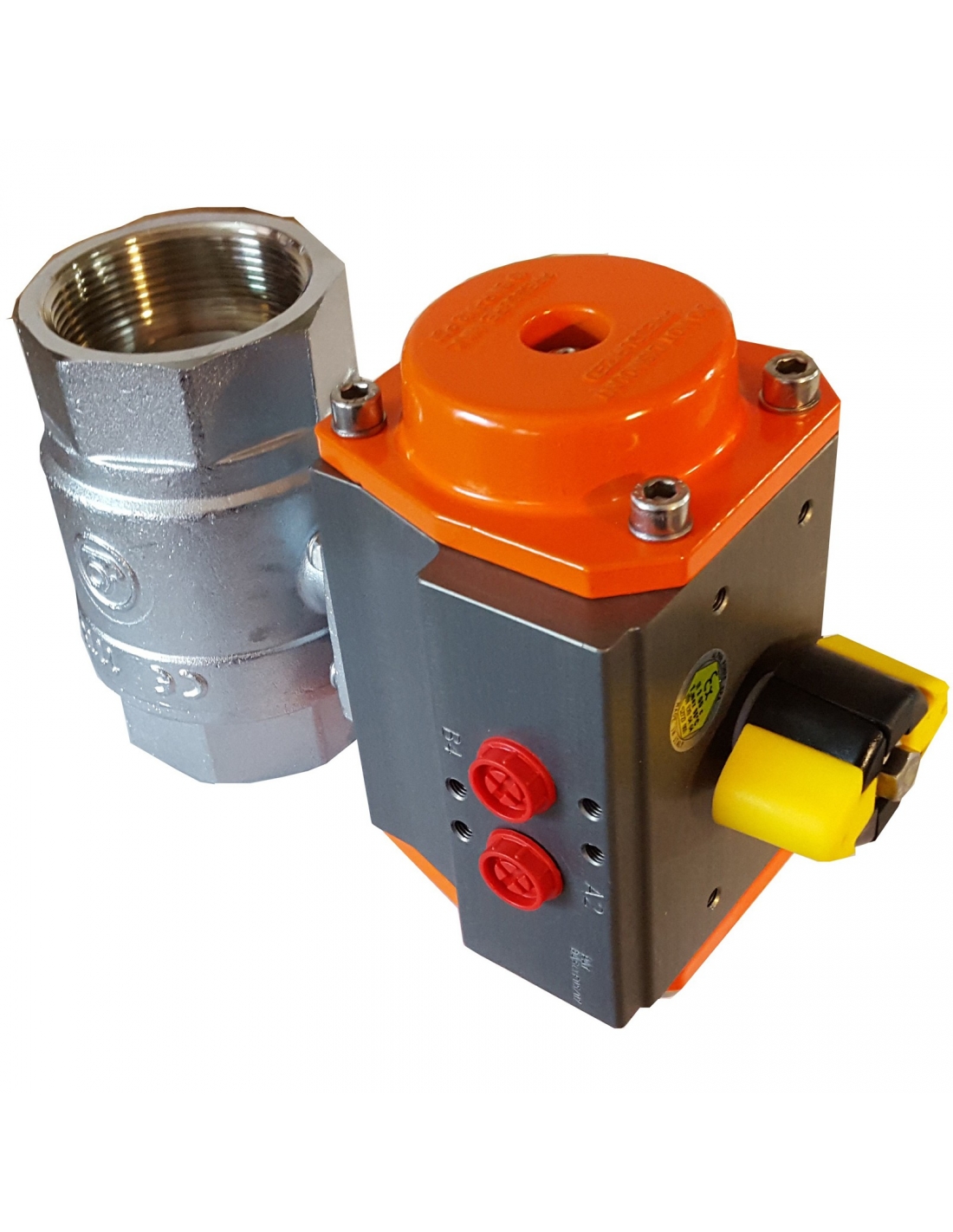

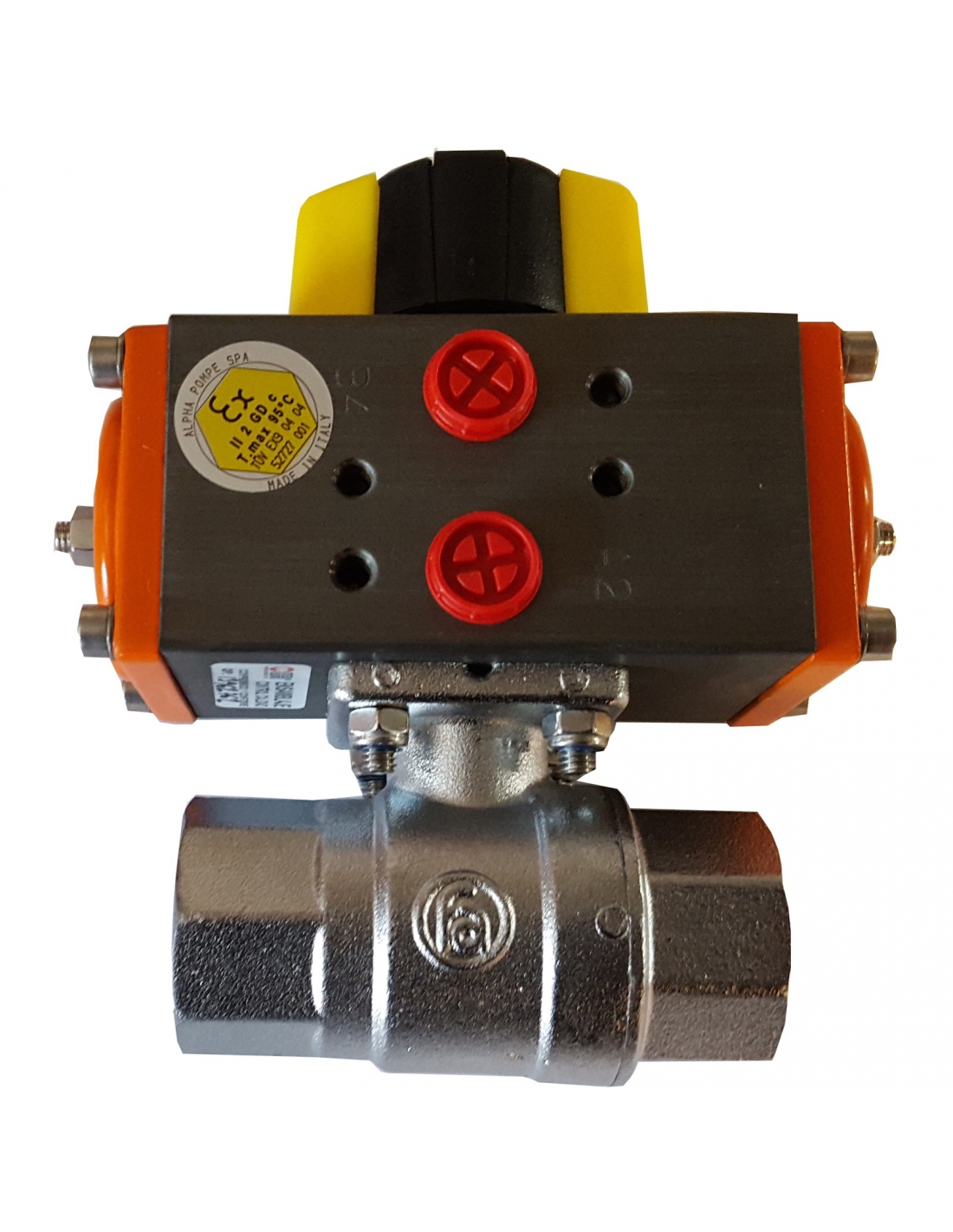

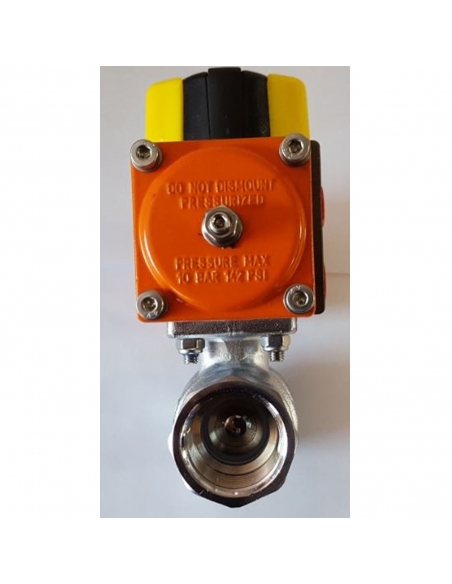

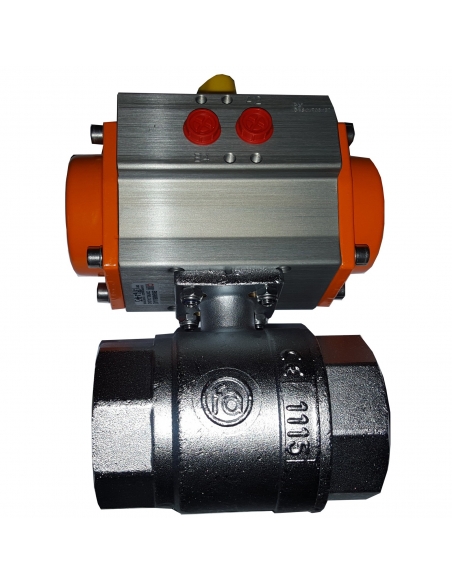

Stainless steel 1 1/4" ball valve, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids. Stainless steel valve body.

The valve has a manual activation control.

Valves with ATEX certification.

Part number: W0900300006

Simbolo neumatico actuador con valvula doble efecto Pictograma ATEX

Logotipo metal work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1 1/4" ball valve, made of stainless steel, 2 way 2 positions, 2/2, with double acting pneumatic rotary actuator. For control of air, water, gases or non-corrosive and non-flammable fluids.

On the pneumatic actuator there is a control to operate the valve manually.

Valves with ATEX certification.

Technical characteristics:

  • Manufacturer of the assembly: Metal Work.
  • Manufacturer's reference: W0900300006

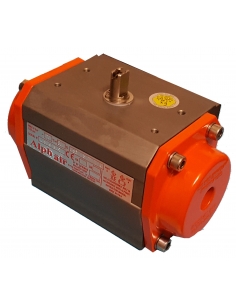

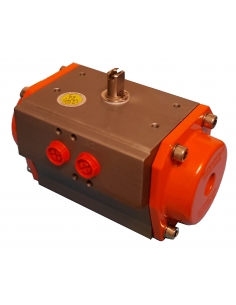

  • Type of actuator: Ø63 double acting pneumatic (AP63).
  • Valve type: 2 way 2 positions (2/2).
  • Thread type: G 1 1/4" female.
  • Valve body: Stainless steel AISI 316
  • Ball: Stainless steel
  • Seals: PTFE.
  • Nominal pressure PN: 40 bar
  • Standard: ISO 5211 (direct mounting to actuator)
  • Temperature: -20ºC to +80ºC

Dimensiones valvulas con actuador 2 vias acero inoxidable

Valvulas rotatorias con actuador neumático 2 vias dimensiones

Material for professional use, install in compliance with the regulations in force at the place of installation.
