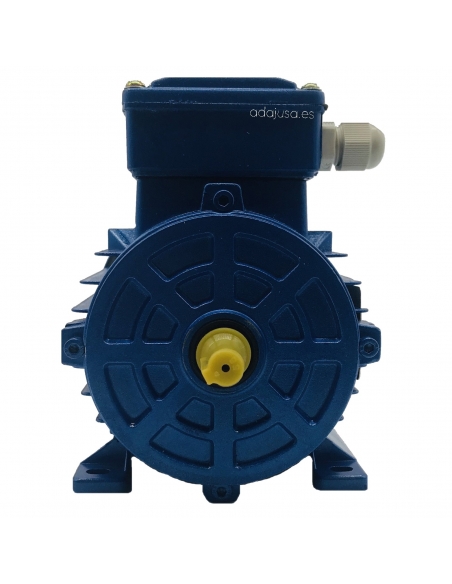

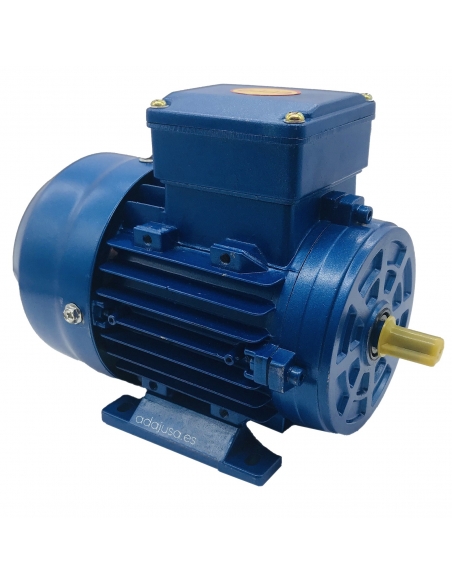

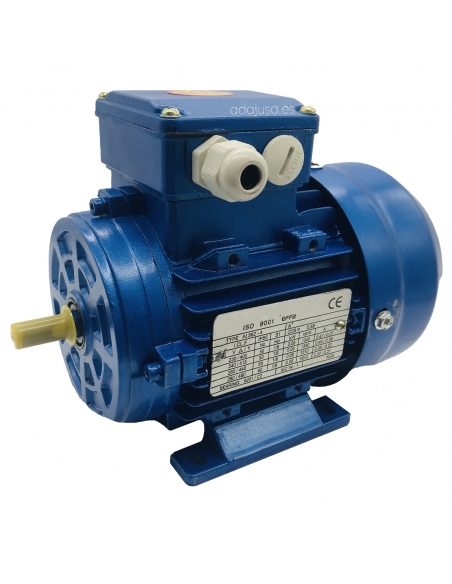

Three-phase motor 0.12Kw/0.16CV 230/400V 3000 rpm B3 foot flange

Three-phase motor 0.12Kw 0.16HP 230/400V 3000 rpm Flange B3 foot

€68.63 Tax included

56.72 tax excl.

SS5622B34E1

Three-phase electric motor 0,12kW (0,16HP) 230/400V 3000 rpm (2 Poles), Flange B3 foot, aluminum housing. Manufactured under European IEC regulations.

Reference: SS-56M2-2 B3
Voltage: 230/400Vac 50/60Hz
Number of poles: 2
Revs: 3000 rpm
Flange: B3 foot
Shaft diameter: 9mm
Power: 0.12Kw - 0.16hp
Size: 56M2
Energy efficiency: IE1

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1 question about the product

Privacy

Shipments

Returns

Three-phase electric motor 0.12kW (0.16hp) 230/400V 3000 rpm Flange B3 (foot). Made of aluminum casting, removable foot .
Standard three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55.

characteristics:

Manufacturer/Importer: ALREN
Reference: SS-56M2-2 B3
Motor Type: Asynchronous squirrel Cage
Efficiency: IE1
Voltage: 230/400 V. III. 50/60 Hz
Number of poles: 2
Revolutions: 2800 rpm
Power: 0.12 Kw (0.16 hp)
Intensity: 0.67/0.38 A
Yield: 67%
Continuous service: S1
Degree of protection: IP55
Fastening type: Flange B3 (foot)
Shaft diameter: Ø9mm
Housing size 56 (562)
Color: Blue
Housing Material: Aluminum
Weight: 4 Kg
CE Marking

For more information, other powers or executions consult.

As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations at the place of installation.

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.

Engine_dimensions

Dimensions of electric motors

Download (700.91KB)

Engine-technical-data-sheet

Technical data sheet three-phase motors

Download (1.82MB)

ES-Engine Annex

Download (253.95KB)

Annex engines-FR

Download (262.97KB)

EN-Engine Annex

Download (631.69KB)

Annex motors-PT

Download (249.5KB)

IT-motor annex

Download (628.21KB)

Annex motors-DE

Download (638.45KB)

Questions

Question

cuales son las medidas de la base del motor en este producto

Answer

Buenos días,

El tamaño del motor es un carcasa 56, le adjunto enlace donde puede descargar la tabla de medidas de los motores.

https://adajusa.es/index.php?controller=attachment&id_attachment=57

Saludos

peña on 06/12/2018 19:26:40

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Three-phase motor 1.5Kw/2CV 230/400V 3000 rpm IE1 Flange B3 foot small housing

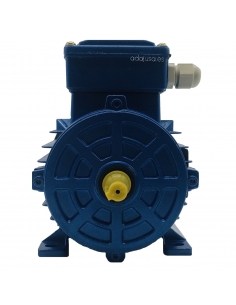

Three-phase motor 1.5Kw/2CV 230/400V 3000 rpm IE1 Flange B3 foot small housing 2
