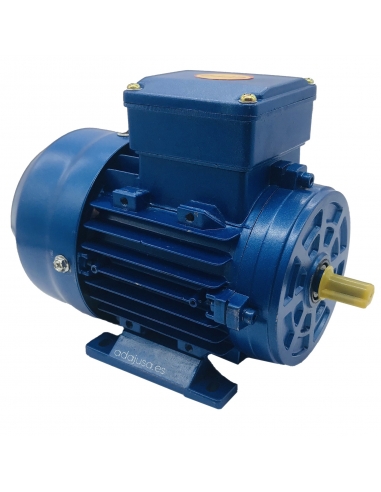

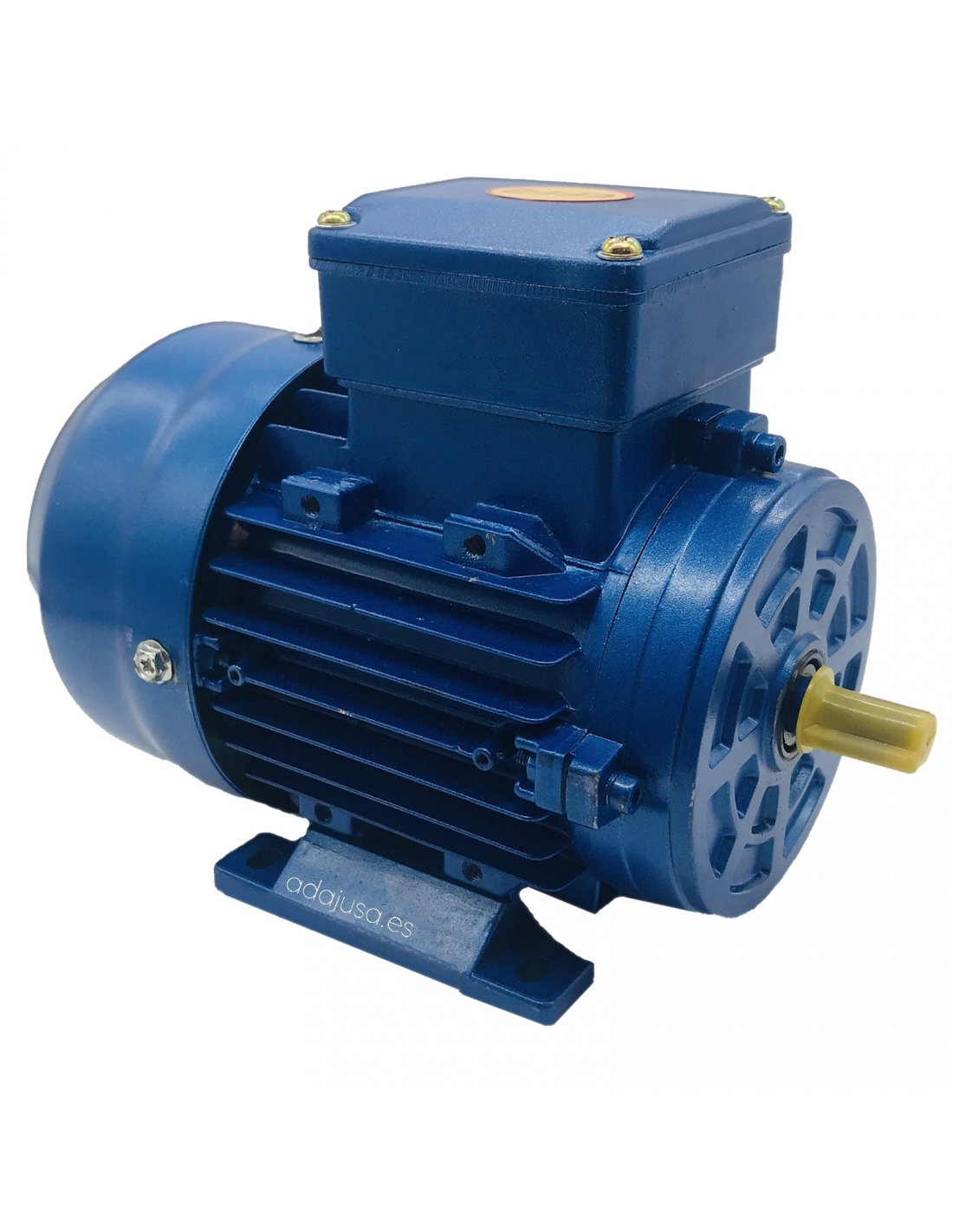

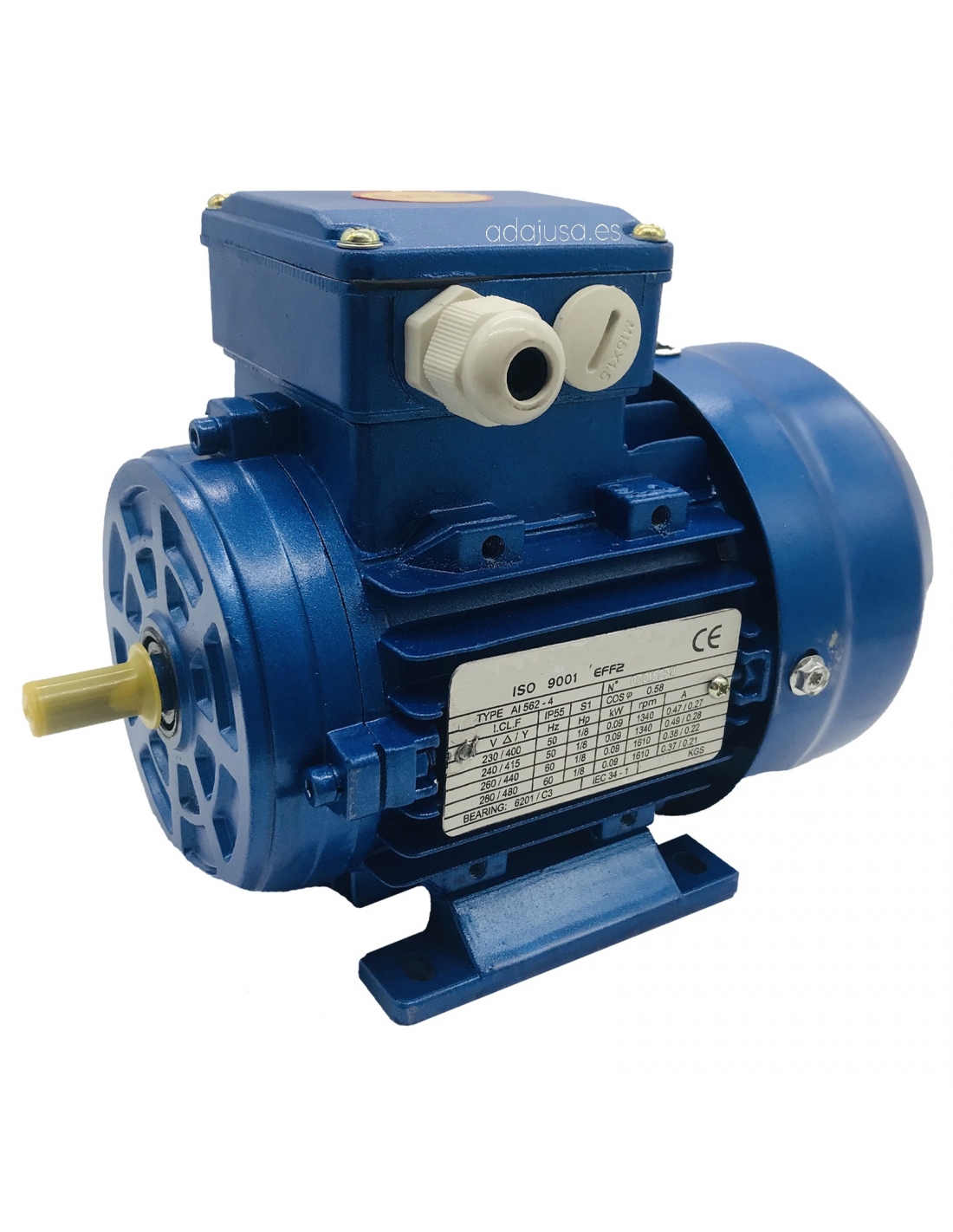

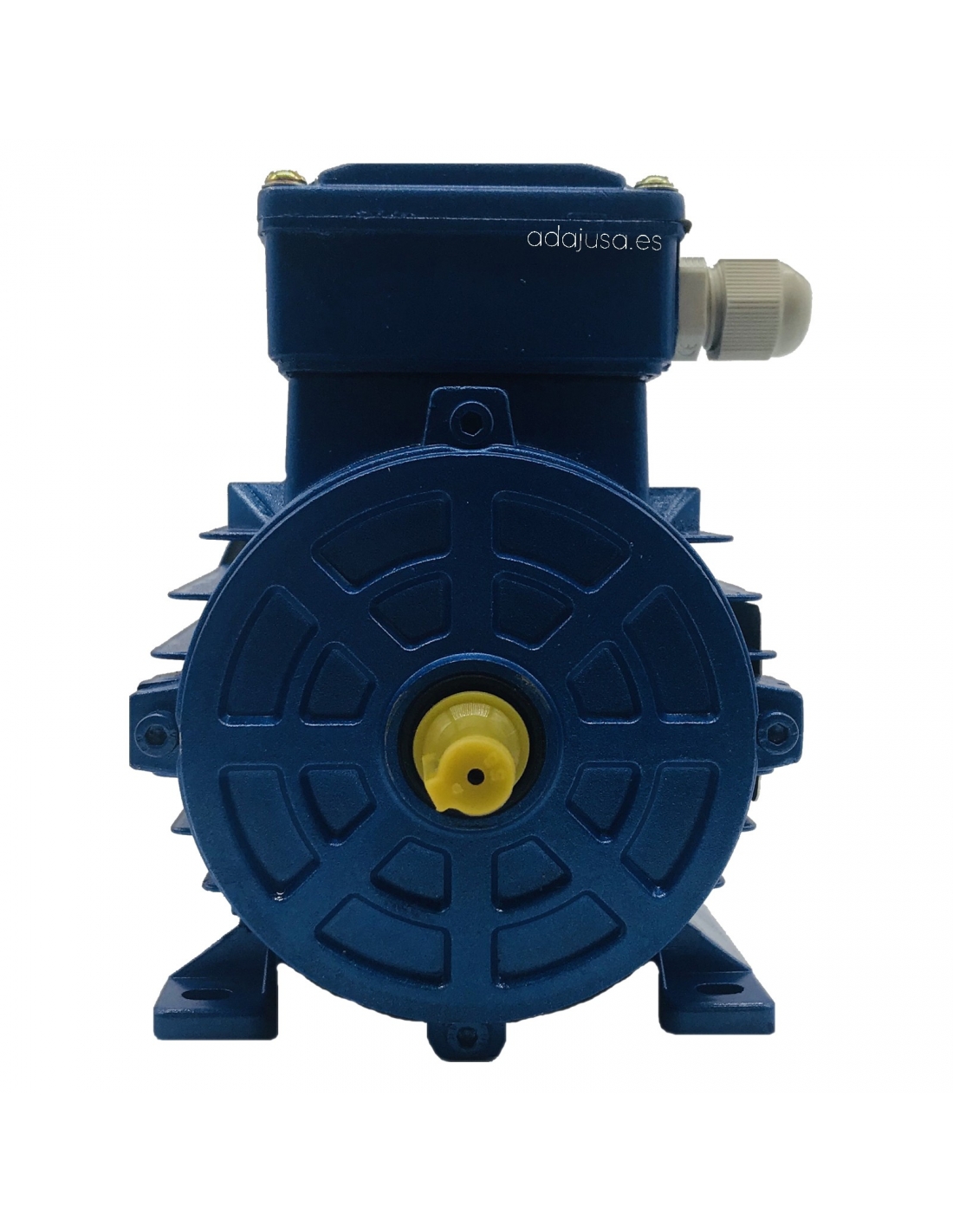

Three-phase motor 0.37Kw 0.5HP 230/400V 3000 rpm IE1 Flange B3 foot

Three-phase electric motor 0.37kW (0.5hp) 230/400Vac 3000 rpm Flange B3 (foot). Made of aluminum casting, removable foot .
Standard three-phase electric motors for general purposes, manufactured under European IEC standard in aluminum with removable foot . Windings in enameled copper with class F insulation. The execution of the housing is closed, it has a retainer on the output shaft that gives it a degree of protection IP55.

Characteristics:

• Manufacturer/Importer: Motorseg
• Reference: SS-71M1-2 B3
• Motor type: asynchronous squirrel cage.
• Efficiency: IE1.
• Voltage: 230/400 Vac., 50/60Hz.
• Number of poles: 2
• Revolutions: 2800 rpm.
• Power: 0.37 Kw (0.5HP).
• Intensity: 1.65/0.95 A.
• Yield: 73.5%.
• Continuous service: S1.
• Degree of protection: IP55.
• Type of fastening: Flange B3 foot.
• Shaft diameter: Ø14mm.
• Housing size 71 (711).
• Color: Blue.
• Housing material: Aluminum.
• Weight: 5,6 Kg.
• CE marking.

For more information, other powers or executions consult.
As in any asynchronous electric motor, the installation of a motor circuit breaker is mandatory to avoid overload damage.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations at the place of installation.

Engine intended to be used exclusively as a spare part for machinery and / or automatic systems.
