1NO+1NC front Contact for TGV2 Series motor...

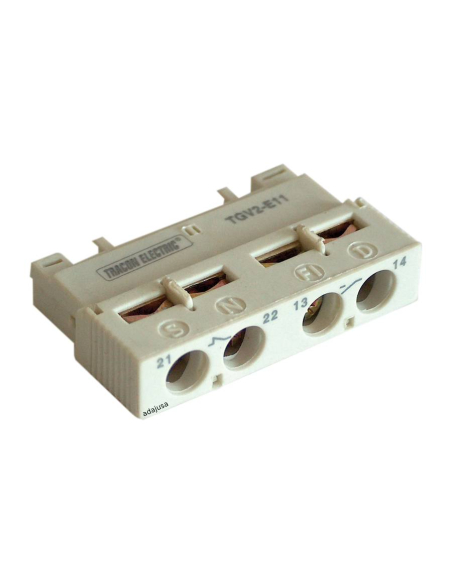

1NO+1NC front Contact for TGV2 Series motor protection circuit breaker

1NO+1NC front Contact for TGV2 Series motor protection circuit breaker

€4.48 Tax included

€3.70 tax excl.

Front mounting camera 1 open contact and 1 closed contact (NO + NC) for TGV2 series circuit breakers.


Reference: TGV2-E11

TGV2-E11DIAGRAM


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Contact Block with 1 open contact (NO) and another closed contact (NC) for front mounting on circuit breakers (motor protectors).

This contact block is valid for TGV2 series circuit breakers.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: TGV2-E11
  • Contacts : 1 open and 1 closed (NO+NC)
  • Mounting mode: Front
  • Eu: 24..230Vac
  • Ith: 2.5A
  • Ie AC-15: 2A 24V / 1.25A 48V / 0.5A 230V
  • Ie DC13: 1A 24V / 0.3A 48V / 0.15A 60V



Dimensions:
TGV2-E11DIMENSIONS









Material for professional use, install in compliance with the regulations in force at the installation site.
