Disconnector Switch 3 - SE Series
Disconnector Switch 3 - SE Series

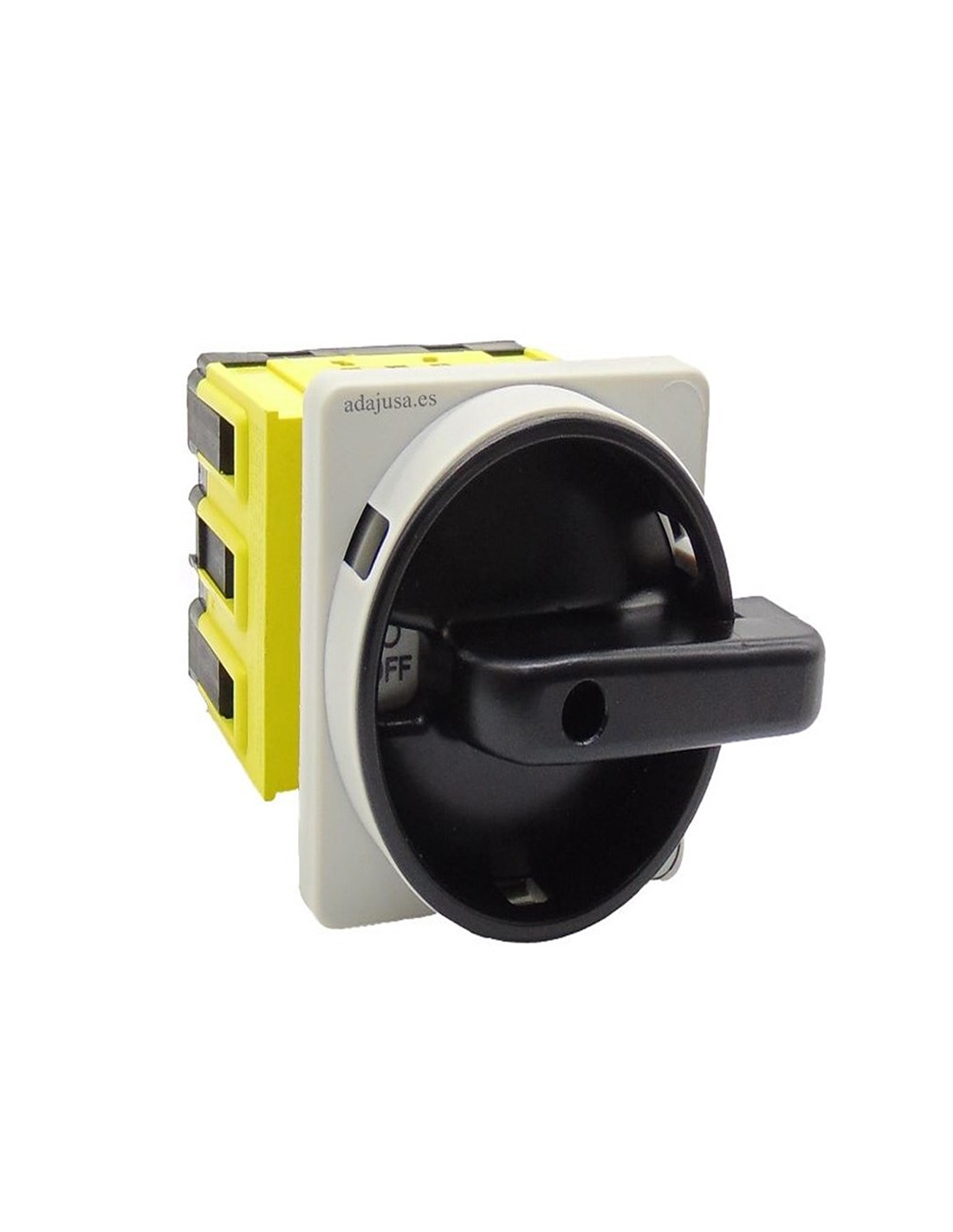

Disconnector switch 3 poles 32A full 67x67 grey lever black se giovenzana series

€18.27 Tax included

€15.10 tax excl.

Three-phase disconnector switch 32A., rotary control 90º 0-1 of 67x67mm in gray color and black lever, made according to the strictest European standards that allow to meet the requirements in terms of safety.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines. Suitable for three-phase motors 400Vac up to 15kw.

Reference: SE326703N

Esquema interruptor seccionador trifásico

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase disconnector switch 32A for inductive loads (Electric motors) and general control. Rotary control 90º with two positions 0-1 67x67mm, gray front control with black lever and possibility of locking by padlock.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by rear-panel fixation (back frame), IP-20 protection grade in terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.

This three-phase switch is suitable for three-phase motors up to 9kw connected to 230Vac or 15kw connected to 400Vac.

The supply includes:
  • Three-phase switch: SE323003R
  • Front controller: 009/0001

Note: Padlock not included in the supply.

characteristics:

  • Brand: Giovenzana.
  • Vendor reference: SE323003R.
  • number of poles: 3.
  • Rated voltage Ue: 690V.
  • Nominal thermal intensity ith: 40a.
  • Nominal intensity Ie (AC21A): 32A.
  • Nominal intensity Ie (AC22A): 32A.
  • Nominal intensity Ie (AC23A):32A.
  • Nominal intensity Ie (AC3):30A.
  • Nominal interrupt capacity: 10kA.
  • Contacts: Slow opening of double interrupt.
  • Number of maneuvers / hours: 120.
  • Mechanical durability: 100,000 maneuvers.
  • Maneuver angle: 90º.
  • Built-in assembly.
  • Degree of protection:
    • Controls type 1-4-4X: IP-65.
    • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No. 14

Table of intensities and powers of employment:

  • Use category AC-21A: 32A.
  • Use category AC-22A: 32A.
  • Use category AC-23A:
    • Standard three-phase motors 230Vac: 32A - 9kW.
    • Standard three-phase motors 400Vac: 32A - 18,5kW.
  • Use category AC-3:
    • Standard three-phase motors 230Vac: 30A - 9kW.
    • Standard three-phase motors 400VAc: 30A - 15kW.

    dimensions:

    Dimensiones interruptor SE1632

    assembly:

    Monaje interruptores serie SE

    As additional elements we can add the following references:

    • Closed auxiliary contact: GIPL004001
    • Open auxiliary contact: GIPL004002
    • Auxiliary contact fastening plate: GI11814021
