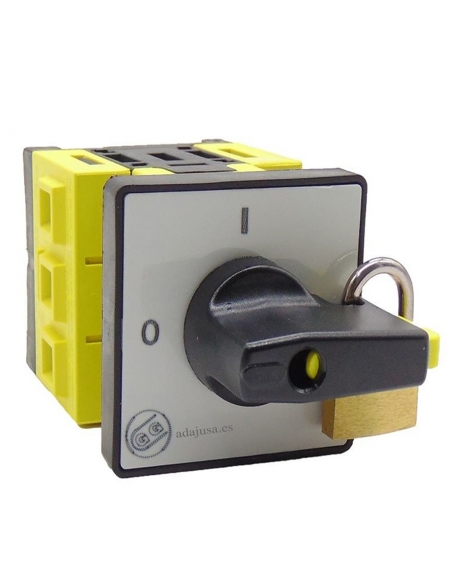

3-pole disconnector switch 32A complete 48x48mm - Giovenzana
3-pole disconnector switch 32A complete 48x48mm - Giovenzana

Disconnector switch 3 poles 32A full 48x48 grey black lever with sq giovenzana series lock

€20.86 Tax included

€17.24 tax excl.

Three-phase disconnector switch 32A., rotary control 90º 0-1 of 48x48mm, plate in gray color and lever in black with lock, made according to the strictest European standards that allow to meet the requirements in terms of safety.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines.

Reference: GISQ3248033NB

Esquema interruptor seccionador trifasico
Giovenzana

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated



Three-phase disconnector switch 32A for inductive loads (Electric motors) and general control. Rotary command 90º with two positions 0-1. Plate in gray and lever in black with possibility of blocking.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by fixing panel (back frame), IP-20 protection grade in terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.

In addition to the panel mounting (back frame) the disconnector switch can be installed on din-rail fixing it by its base. an auxiliary contact can also be added and converted into 4 poles.

Note: The supply does not include padlock.

characteristics:

  • Brand: Giovenzana.
  • Vendor reference: SQ032003R.
  • number of poles: 3.
  • Rated voltage Ue: 690V.
  • Nominal intensity Ie (AC21A): 32A.
  • Nominal thermal intensity ith: 40a.
  • Rated interrupt capacity: 8kA.
  • Contacts: Slow opening of double interrupt.
  • Number of maneuvers / hours: 120.
  • Mechanical durability: 100,000 maneuvers.
  • Maneuver angle: 90º.
  • Built-in assembly.
  • Degree of protection:
    • Controls type 1-4-4X: IP-65.
    • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No. 14

Table of intensities and powers of employment:

  • Use category AC-21A: 40a.
  • Use category AC-22A: 32A.
  • Use category AC-23A:
    • Standard three-phase motors 230Vac: 32A - 10kW.
    • Standard three-phase motors 400Vac: 32A - 18,5kW.
  • Use category AC-3:
    • Standard three-phase motors 230Vac: 27A - 7,5kW.
    • Standard three-phase motors 400VAc: 27A - 15kW.

    dimensions:

    Dimensiones interruptor seccionador 25A Giovenzana

    assembly:

    Montaje interruptor de levas trifásicos

    Material for professional use, has to be installed respecting the regulations in force at the place of installation.
