3-pole disconnector switch 32A complete 48x48mm SE series - Giovenzana
3-pole disconnector switch 32A complete 48x48mm SE series - Giovenzana

Disconnector switch 3 poles 32A full 48x48 grey black lever with lock se giovenzana series

€17.52 Tax included

€14.48 tax excl.

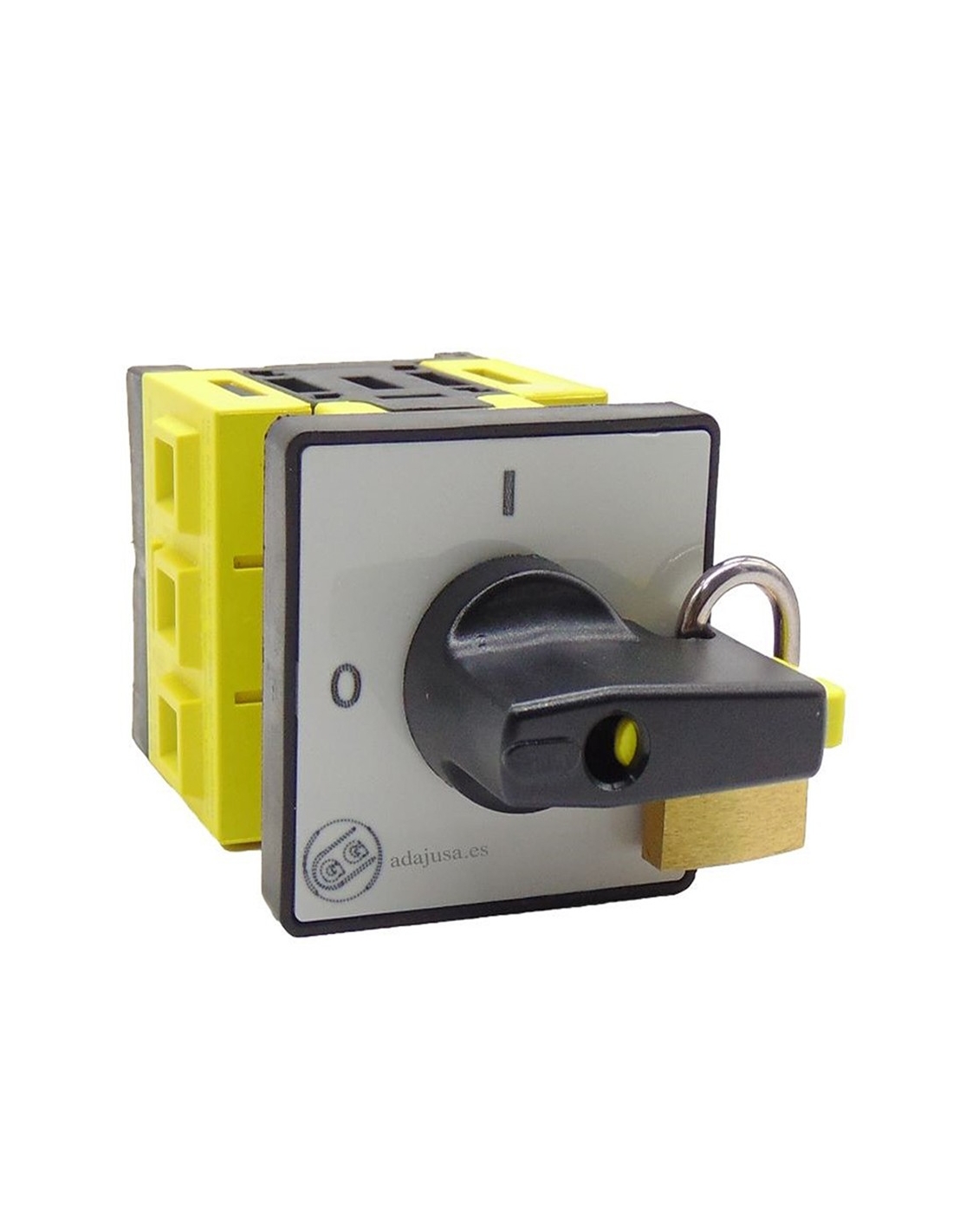

Three-phase disconnector switch 32A., rotary control 90º 0-1, 48x48mm plate in gray with black lever with lock, made according to the strictest European standards that allow to meet the requirements in terms of safety.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines. Suitable for three-phase motors 400Vac up to 15kw.

Reference: SE323033NB

Esquema interruptor seccionador trifásico



Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated

This pack contains

Out of stock

No queries yet, leave the first!


Three-phase disconnector switch 32A for inductive loads (Electric motors) and general control. Rotary control 90º with two positions 0-1, 48x48mm in gray with black lever and possibility of locking by padlock.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by fixing panel (back frame), IP-20 protection grade in terminals, self-cleaning contacts and indelible laser marking. Body made of self-extinguishing material UL94 VO.
The supply includes:

  • Three-phase switch: SE3230003R
  • Front knob: 003/0001
Note: The supply does not include padlock.

characteristics:

  • Brand: Giovenzana.
  • Vendor reference: SE323003R.
  • number of poles: 3.
  • Rated voltage Ue: 690V.
  • Nominal thermal intensity ith: 40a.
  • Nominal intensity Ie (AC21A): 32A.
  • Nominal intensity Ie (AC22A): 32A.
  • Nominal intensity Ie (AC23A):32A.
  • Nominal intensity Ie (AC3):30A.
  • Nominal interrupt capacity: 10kA.
  • Contacts: Slow opening of double interrupt.
  • Number of maneuvers / hours: 120.
  • Mechanical durability: 100,000 maneuvers.
  • Maneuver angle: 90º.
  • Built-in assembly.
  • Degree of protection:
    • Controls type 1-4-4X: IP-65.
    • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No. 14

Table of intensities and powers of employment:

  • Use category AC-21A: 32A.
  • Use category AC-22A: 32A.
  • Use category AC-23A:
    • Standard three-phase motors 230Vac: 32A - 9kW.
    • Standard three-phase motors 400Vac: 32A - 18,5kW.
  • Use category AC-3:
    • Standard three-phase motors 230Vac: 30A - 9kW.
    • Standard three-phase motors 400VAc: 30A - 15kW.

    dimensions:

    Dimensiones interruptor SE1632

    assembly:

    Montaje interruptores serie SE

    As additional elements we can add the following references:

    • Closed auxiliary contact: GIPL004001
    • Open auxiliary contact: GIPL004002
    • Auxiliary contact fastening plate: GI11814021

    Material for professional use, has to be installed respecting the regulations in force at the place of installation.
