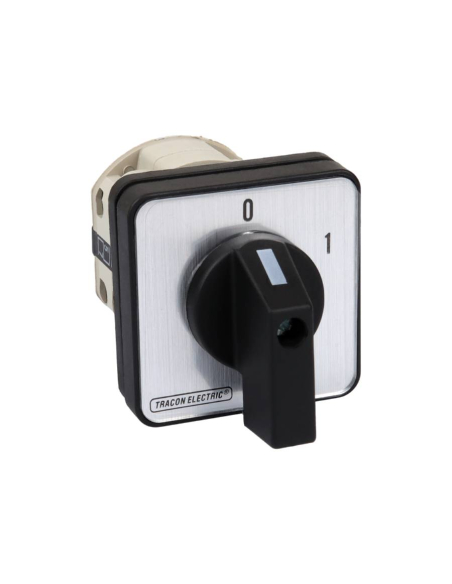

Three-phase cam switch 3 poles 125A ON-OFF black handle (60º)

Three-phase cam switch 3 poles 125A ON-OFF black handle (60º)

€57.23 Tax included

€47.30 tax excl.

Rotary cam switch, 3-pole 125A main switch, 60º rotary control, with two positions 0-1. Front plate size 88x88mm in grey colour and handle in black.

Suitable for interrupting, connecting and switching electrical circuits, as well as direct starting of motors and main switch in machines. Maximum motor power 30kW.


Reference: TK-126/3



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase ON-OFF cam switch, 3 poles 125A for inductive loads (electric motors) and general control. 60º rotary knob, with two positions 0-1. 88x88mm grey plate and black handle. This switch can start motors up to a maximum power of 30kW 400Vac.

This series of rotary switches has been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which enables them to meet all safety requirements. Flush mounting with IP-42 protection degree.







Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: TK-126/3
  • Number of poles: 3
  • Supply voltage: 380-420V
  • Rated insulation voltage: 690V
  • Nominal intensity: 125A
  • Number of maneuvers/hour: 30
  • Mechanical durability: 150,000 maneuvers
  • Electrical durability: 100,000 operations
  • Ambient temperature: -5 to +55ºC
  • Protection class: IP42



Table of intensities and powers of use:

  • AC-21A 400V usage category: 100A
  • AC-22A 400V use category: 100A
  • AC-23A 400V usage category: 90A
  • AC-2 400V usage category: 90A
  • AC3 400V usage category: 75A
  • AC-4 400V usage category: 30A
  • Assigned power category AC-23A 400V: 45kW
  • Assigned power category AC-2A 400V: 45kW
  • Assigned power category AC-3A 400V: 30kW
  • Assigned power category AC-4A 400V: 12kW






L=84mm; A = 84mm; a = 88mm; b = 88mm; d=68mm






Professional use material, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Cam switch 3-pole 40a... Cam switch 3-pole 40a... 2
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 40a 48x48mm black lever with lock - Giovenzana

Giovenzana Internacional B.V.
GI400348NB
€26.04 (€21.52 tax excl.)
Rotary cam switch, three-phase main switch 40a., rotary knob 90º 0-1, aluminum front plate and black lever, with possibility of locking, made according to the strictest European standards, which allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits, as well as direct start of motors and main...
Cam switch 3-pole 25a...
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 25a 48x48mm black lever with lock - Giovenzana

Giovenzana Internacional B.V.
GI250348B
€26.09 (€21.56 tax excl.)
Rotary cam switch, three-phase main switch 25a., rotary knob 90º 0-1, aluminum front plate with black lever, 48x48mm, possibility of lock locking. Carried out in accordance with the strictest European standards, which allow, to meet safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct start of...
3-pole cam switch 125a 88x88mm - Giovenzana
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 125a 88x88mm black lever - Giovenzana

Giovenzana Internacional B.V.
GI1250388N
€120.76 (€99.80 tax excl.)
Rotary cam switch, three-phase main switch 125a., rotary knob 90º 0-1, aluminum front plate and black lever, made to the strictest European standards, which allow to meet the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits, as well as direct start of motors and main switch in machines. reference:...
Giovenzana 20a -black three-phase adajusa
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 63a 92x92mm grey-black - Giovenzana

Giovenzana Internacional B.V.
GI6303E92N
€88.96 (€73.52 tax excl.)
Cam rotary switch, three-phase main switch 63a., rotary knob 90º 0-1. Grey front plate with black knob, 92x92mm front plate dimensions, locking possibility. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct...
Giovenzana 20a -black three-phase adajusa
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 32A full 67x67mm grey-black lever - Giovenzana

Giovenzana Internacional B.V.
GI3203E67N
€26.47 (€21.88 tax excl.)
Cam rotary switch, 32A three-phase main switch, 0-1 90º knob. Grey front plate with black knob, 67x67mm front plate dimensions, locking possibility. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct start of...
Cam switch 3-pole 20a...
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 20a 67x67mm yellow-red - Giovenzana

Giovenzana Internacional B.V.
GI2003E67R
€16.94 (€14.00 tax excl.)
Cam rotary switch, three-phase main switch 20a., rotary knob 90º 0-1. Yellow front plate with red knob, 67x67mm front plate dimensions, possibility of locking. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as...
View
Three-phase cam switch 3...
Three-phase 3-poles cam switches

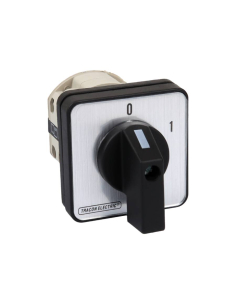

Three-phase cam switch 3 poles 32A ON-OFF black handle (60º)

TRACON
TK-326/3
€18.82 (€15.55 tax excl.)
Rotary cam switch, 3-pole 32A main switch, 60º rotary control, with two positions 0-1. Front plate size 64x64mm in grey colour and handle in black.Suitable for interrupting, connecting and switching electrical circuits, as well as direct starting of motors and main switch in machines. Maximum motor power 11kW. Reference: TK-326/3 Representative image...
3-pole cam switch 32A full 64x64mm red - Giovenzana adajusa 3-pole cam switch 32A full 64x64mm red - Giovenzana adajusa 2
  • Pack
Three-phase 3-poles cam switches

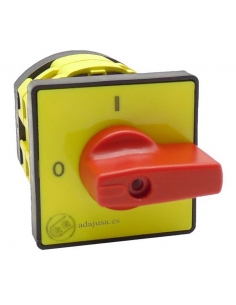

Cam switch 3-pole 32A full 64x64mm red lever - Giovenzana

Giovenzana Internacional B.V.
GI320364R
€26.23 (€21.68 tax excl.)
Rotary cam switch, 32A three-phase main switch, 90º 0-1 rotary knob, red lever yellow front plate, made to the strictest European standards, which allow to meet safety requirements.Suitable for interruption, connection and switching of electrical circuits, as well as direct start of motors and main switch in machines. reference: GI320364RRepresentative...
3-pole cam switch 20a 67x67mm black grey - Giovenzana
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 20a 67x67mm grey-black - Giovenzana

Giovenzana Internacional B.V.
GI2003E67N
€16.99 (€14.04 tax excl.)
Cam rotary switch, three-phase main switch 20a., rotary knob 90º 0-1. Grey front plate with black knob, 67x67mm front plate dimensions, locking possibility. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct...
View
Cam switch 3-pole 40a...
  • Pack
Three-phase 3-poles cam switches

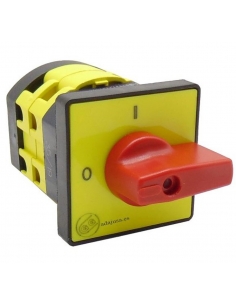

Cam switch 3-pole 40a 48x48mm red lever with lock - Giovenzana
