Cam switch 3-pole  25a 48x48mm red lever with...

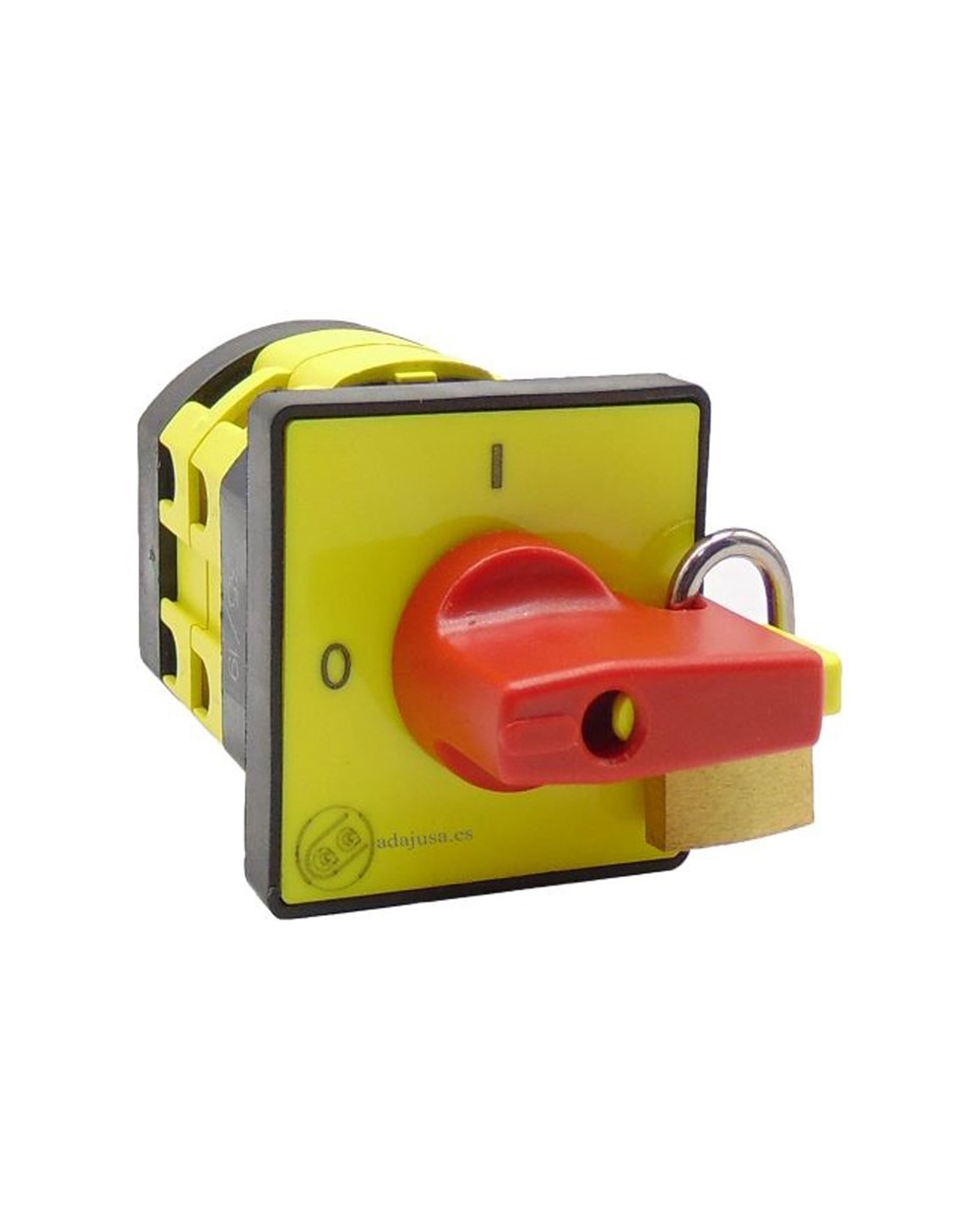

Cam switch 3-pole  25a 48x48mm red lever with lock - Giovenzana

Cam switch 3-pole 25a 48x48mm red lever with lock - Giovenzana

€23.91 Tax included

€19.76 tax excl.

Rotary cam switch, three-phase main switch 25a., rotary knob 90º 0-1, yellow front plate with red lever, 48x48mm, lock locking possibility. Carried out in accordance with the strictest European standards, which allow, to meet safety requirements.
Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines.

reference: GI250348RB
Esquema interruptor seccionador trifasico
GiovenzanaRepresentative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!


Three-phase cam 25a for inductive loads (Electric motors) and general control. Rotary control 90º two positions 0-1. Yellow colour with red lever, front plate dimensions of 48x48mm. Possibility of lock locking.

This series of rotary switches have been made according to the strictest European and international standards (IEC/EN 60947-3, UL508), which allows them to meet all safety requirements.

Mounting by transpanel fixation (rear-frame), degree of protection IP-20 in terminals, self-cleaning contacts and indelible laser marking. Body made of UL94 VO self-extinguishing material.
Supply includes:

  • Switch: C025003R
  • Front plate: 004/0001

characteristics:

  • Brand: Giovenzana
  • Switch reference: C0250003R
  • Front plate reference: 004/0001
  • number of poles: 3.
  • Rated voltage Ue: 690V.
  • Nominal current Ie (AC21A): 25a.
  • Nominal interrupt capacity: 10kA.
  • Number of manoeuvres / hours: 120.
  • Mechanical durability: 1,000,000 maneuvers.
  • Built-in mounting.
  • Degree of protection:
  • Type 1-4-4X controls: IP-65.
  • Lever-only controls: IP-40.
  • Bornes: IP-20.
  • Standards: EC; IEC60947; IEC60204; UL508 CSA 22.2 No14

Table of intensities and powers of use:

  • AC-21A Usage Category: 25a.
  • AC-22A Usage Category: 25a.
  • AC-23A Usage Category:
  • Standard single-phase motors 230Vac: 25a - 4kW.
  • 230Vac three-phase standard motors: 25a - 7.5kW.
  • Standard three-phase motors 400Vac: 22A - 11kW.
  • AC-3 Usage Category:
  • Standard single-phase motors 230Vac: 22A - 3.7kW.
  • Standard three-phase motors 230Vac: 18A - 5.5kW.
  • Standard three-phase motors 400VAc: 18A - 7.5kW.
  • Use category DC-21A (dc current):
  • Small overload 50V (1 phase): 20a.
  • Use category DC-22A (dc current):
  • 30V mixed load (1 phase): 16a.
