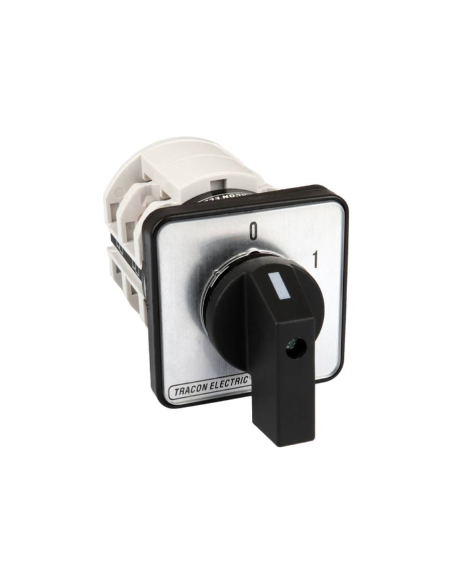

Switch for 25A motor (7.5kW - 10HP)
Switch for 25A motor (7.5kW - 10HP)

Switch for 25A motor (7.5kW - 10HP)

€12.68 Tax included

€10.48 tax excl.

25A changeover switch for electric motors, 60º rotary control with two positions 0-1. Allows starting and stopping a three-phase electric motor. Front plate size 48x48mm in grey colour and handle in black colour.

Engine power 10HP (7.5kW) with 400Vac voltage.


Reference: TKM-25/Q



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Three-phase 3-pole 25A cam switch for 10HP (7.5kW) electric motors. 60º rotary control with two positions 0-1, allows starting and stopping a three-phase electric motor. 48x48mm plate in grey and black handle.

This series of rotary switches has been manufactured in accordance with EN 60947-1, EN 60947-3, EN 62321 standards, which enables them to meet all safety requirements. Flush mounting with IP-42 protection degree.







Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: TKM-25/Q
  • Number of poles: 3
  • Supply voltage: 380-420V
  • Rated insulation voltage: 690V
  • Nominal intensity: 25A
  • Number of maneuvers / hours: 150
  • Mechanical durability: 500,000 maneuvers
  • Electrical durability: 300,000 operations
  • Ambient temperature: -5 to +55ºC
  • Protection class: IP42



Table of intensities and powers of use:

  • AC-21A 400V usage category: 25A
  • AC-22A 400V usage category: 25A
  • AC-23A 400V usage category: 22A
  • AC-2 400V usage category: 22A
  • AC3 400V usage category: 15A
  • AC-4 400V usage category: 6.5A
  • AC-15 400V usage category: 5A
  • DC-13 240V DC usage category: 1.5A
  • Assigned power category AC-23A 400V: 11kW
  • Assigned power category AC-2A 400V: 11kW
  • Assigned power category AC-3A 400V: 7.5kW
  • Assigned power category AC-4A 400V: 3kW







L = 48.6mm; A = 45.2mm; a = 48mm; b = 48mm; d=36mm






Professional use material, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

3-pole cam switch 32A full 67x67mm yellow-red - Giovenzana adajusa
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 32A full 67x67mm yellow-red lever - Giovenzana

Giovenzana Internacional B.V.
GI3203E67R
€28.01 (€23.15 tax excl.)
Cam rotary switch, 32A three-phase main switch, 0-1 90º knob. Yellow front plate with red knob, 67x67mm front plate dimensions, possibility of locking. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct start...
3-pole cam switch 20a 48x48mm black lever - Giovenzana
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 20a 48x48mm black lever - Giovenzana

Giovenzana Internacional B.V.
GI200348N
€16.95 (€14.01 tax excl.)
Rotary cam switch, three-phase main switch 20a., rotary knob 90º 0-1, aluminum front plate and black lever, made to the strictest European standards, which allow to meet the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits, as well as direct start of motors and main switch in machines. reference:...
View
Cam switch 3-pole 200a...
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 200a 95x95mm yellow-red - Giovenzana

Giovenzana Internacional B.V.
GI20003E95R
€173.83 (€143.66 tax excl.)
Cam rotary switch, three-phase main switch 200a., rotary knob 90º 0-1. Yellow front plate with red knob, 95x95mm front plate dimensions, locking possibility. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct...
View
Cam switch 3-pole 25a...
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 25a 48x48mm black lever with lock - Giovenzana

Giovenzana Internacional B.V.
GI250348B
€27.65 (€22.85 tax excl.)
Rotary cam switch, three-phase main switch 25a., rotary knob 90º 0-1, aluminum front plate with black lever, 48x48mm, possibility of lock locking. Carried out in accordance with the strictest European standards, which allow, to meet safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct start of...
Giovenzana 20a -black three-phase adajusa
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 125a 95x95mm grey-black - Giovenzana

Giovenzana Internacional B.V.
GI12503E95N
€126.13 (€104.24 tax excl.)
Cam rotary switch, three-phase main switch 125a., rotary knob 90º 0-1. Grey front plate with black knob, 95x95mm front plate dimensions, locking possibility. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct...
Three-phase cam switch 20A Yellow-red control Three-phase cam switch 20A Yellow-red control 2
  • -€5.88
  • Pack
Three-phase 3-poles cam switches

Three-phase cam switch 63A Yellow-red control

Generico-DE
LW26GS-63A 3P
€22.65 (€18.72 tax excl.) €28.53
Time left
Rotary cam switch, three-phase main switch 63 A. 0-I, with yellow-red drive, lockable in position O. Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines. Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Cam switch 3-pole 80A full...
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 80A full 92x92mm yellow-red - Giovenzana

Giovenzana Internacional B.V.
GI8003E92R
€94.57 (€78.16 tax excl.)
Cam rotary switch, 80A three-phase main switch, 0-1 90º knob. Yellow front plate with red knob, 92x92mm front plate dimensions, locking possibility. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct start of...
View
Cam switch 3-pole 40a... Cam switch 3-pole 40a... 2
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 40a 48x48mm black lever with lock - Giovenzana

Giovenzana Internacional B.V.
GI400348NB
€27.59 (€22.80 tax excl.)
Rotary cam switch, three-phase main switch 40a., rotary knob 90º 0-1, aluminum front plate and black lever, with possibility of locking, made according to the strictest European standards, which allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits, as well as direct start of motors and main...
Front control plate 0-1 48x48mm black with lock - Giovenzana adajusa Front control plate 0-1 48x48mm black with lock - Giovenzana adajusa 2
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 32A full 48x48mm black lever with lock - Giovenzana

Giovenzana Internacional B.V.
GI320348NB
€27.65 (€22.85 tax excl.)
Rotary cam switch, 32A three-phase main switch, 90º 0-1 rotary knob, aluminum front plate and black lever, with the possibility of lock locking, made to the strictest European standards, which allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits, as well as direct start of motors and main switch...
Giovenzana 20a -black three-phase adajusa
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 32A full 67x67mm grey-black lever - Giovenzana

Giovenzana Internacional B.V.
GI3203E67N
€28.06 (€23.19 tax excl.)
Cam rotary switch, 32A three-phase main switch, 0-1 90º knob. Grey front plate with black knob, 67x67mm front plate dimensions, locking possibility. Carried out in accordance with the strictest European standards that allow to meet the safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct start of...
3-pole cam switch 125a 88x88mm - Giovenzana
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 125a 88x88mm black lever - Giovenzana

Giovenzana Internacional B.V.
GI1250388N
€127.96 (€105.75 tax excl.)
Rotary cam switch, three-phase main switch 125a., rotary knob 90º 0-1, aluminum front plate and black lever, made to the strictest European standards, which allow to meet the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits, as well as direct start of motors and main switch in machines. reference:...
3-pole cam switch 20a 48x48mm black lever - Giovenzana adajusa 3-pole cam switch 20a 48x48mm black lever - Giovenzana adajusa 2
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 20a 48x48mm red lever - Giovenzana

Giovenzana Internacional B.V.
GI200348R
€17.11 (€14.14 tax excl.)
Rotary cam switch, three-phase main switch 20a., rotary knob 90º 0-1, front plate in yellow and lever in red, made according to the strictest European standards, which allow to meet the requirements in terms of safety.Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in machines....
View
Full 3-pole 25a cam switch 64x64mm - Giovenzana adajusa
  • Pack
Three-phase 3-poles cam switches

Cam switch 3-pole 25a 64x64mm black lever - Giovenzana

Giovenzana Internacional B.V.
GI250364N
€28.25 (€23.35 tax excl.)
Rotary cam switch, three-phase main switch 25a., 90º 0-1 rotary knob, aluminum front plate with black lever, 64x64mm. Carried out in accordance with the strictest European standards, which allow, to meet safety requirements.Suitable for interruption, connection and switching of electrical circuits as well as direct start of motors and main switch in...

Customers who bought this product also bought:

Three-phase mini contactor...
Mini-connectors and accessories

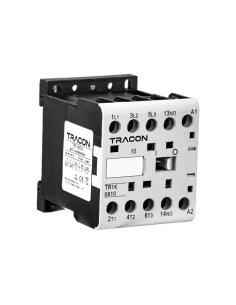

Three-phase mini contactor 9A 230Vac closed auxiliary contact NC TR1K Series
