1/8 male adjustable straight fitting with 6/4 spring Series 1000 - Aignep

1/8 male adjustable straight fitting with 6/4 spring Series 1000 - Aignep

€2.93 Tax included

€2.42 tax excl.

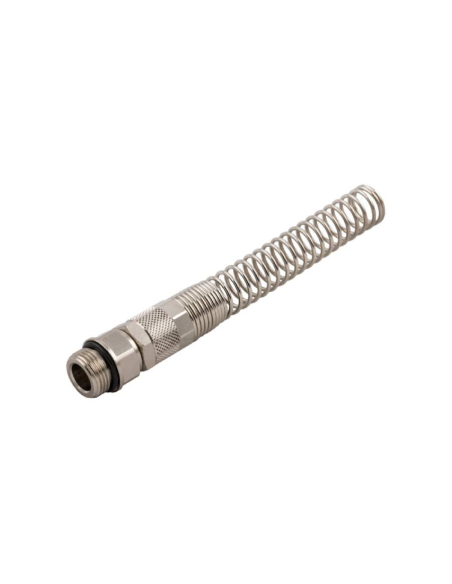

Adjustable straight fitting with 1/8 cylindrical male thread with spring for 6x4mm diameter tube. Spring made of AISI 304 stainless steel, NBR gasket, thread and nut in nickel-plated brass. These fittings allow quick and extremely safe connection in pneumatic and fluid applications.


Series: 1000
Reference: 1027 6/4 1/8

aignep
NORMATIVE

 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Adjustable straight fitting with 1/8 cylindrical male thread with spring for 6x4mm diameter tube. Spring made of AISI 304 stainless steel, NBR gasket, thread and nut in nickel-plated brass. These fittings have a wedge system that allows thermoplastic tubes to be connected with extreme security for pneumatic and fluidic applications. Its spike -type design allows for a better connection with the tube, while the hexagon of the locking nut at the top significantly simplifies manual or key locking, without elastomeric sealing elements.

 These types of fittings are very useful in a multitude of applications such as compressed air, pneumatic automation, industrial water circuits, inert gases, vapors, fluids, vacuum, etc. The pressure and temperature are determined based on the tube used, therefore these values are defined based on the characteristics of the tube itself. For the “swivel” version fittings the values are: - 20C / + 80C.

In no case should the “swivel” fittings be used as rotary.


1015materials
Mounting:


1015ASSEMBLY

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 1027 6/4 1/8
  • Cylindrical thread: 1/8
  • Tube diameter: 6x4mm
  • Fluid and liquids: Compatible with the connection type
  • Temperature (swivel fittings): - 20C to +80C
  • Thread and nut material: Nickel-plated brass
  • Spring material: AISI 304 stainless steel - EN 1.4301
  • Connection tubes: Material PA6, PA11, PA 12, Polyethylene, Polyurethane (*) , PTFE and FEP
  • Specific measurements for polyurethane tube: 8/5 - 8/5.5, 12/9
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • Metric according to ISO R/262.

(*) use 90 to 98 Shore, for maximum performance 98 Shore A is recommended.


Dimensions:

1027DIMENSIONS1027TD



(**) Specific measurements for polyurethane tube


For more information you can download the technical sheet by clicking on the "Attachments" tab .

Material for professional use, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Straight automatic straight...
Straight fittings

Straight automatic straight fitting M6x1 pipe 4mm Series 55000 - Aignep

Aignep
50020N4M6X1
€1.37 (€1.13 tax excl.)
Straight male cylindricalfitting with M6x1 thread for 4mm tube with O-ring, made of chrome-plated brass and the tube extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 50020N 4 M6x1 Representative...
3/8" male conical...
Straight fittings

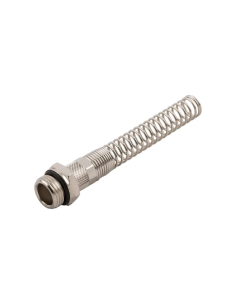

3/8" male conical orientable straight fitting with 12/10 spring 1000 Series - Aignep
