Straight male fitting M5 tube 6/4 Series C - Metal Work

Name: Straight male fitting M5 tube 6/4 Series C - Metal Work
Brand: Metal Work
SKU: 2351002
Price: 0.7865 EUR
Availability: PreOrder

€0.79 Tax included

€0.65 tax excl.

Straight quick coupling with M5 cylindrical male thread for tube diameter 6/4, made of OT 58 brass with NBR seal. These couplings allow fast and extremely safe connection in pneumatic and fluid applications.

Series: C
Reference: 2351002

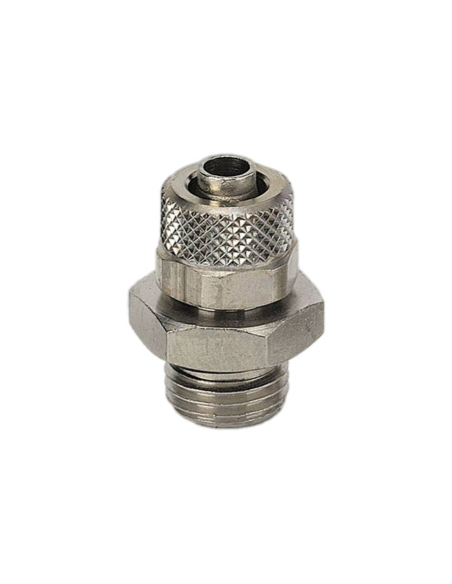

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Straight quick coupling with M5 cylindrical male thread for 6/4 diameter tube, made of OT 58 brass with NBR seal. These couplings allow a fast and extremely safe connection in pneumatic and fluid applications. These couplings have a wedging system that allows the extremely safe connection of thermoplastic tubes for pneumatic and fluidic applications.

The temperature is determined based on the tube used, therefore these values are defined based on the characteristics of the tube itself.

Technical characteristics:

Manufacturer: Metal Work
Reference: 2351002
Thread: M5
Tube outer diameter: 6/4
Material: Brass OT 58
Board: NBR
Max temperature: Depends on the tube used
Min. temperature: Depends on the tube used
Max pressure: 18 bar
Min. pressure: -0.99 bar

2351DIMENSIONS

For further information you can download the technical sheet by clicking on the "Attached Files" tab .

Professional use material, install in compliance with the regulations in force at the installation site.
