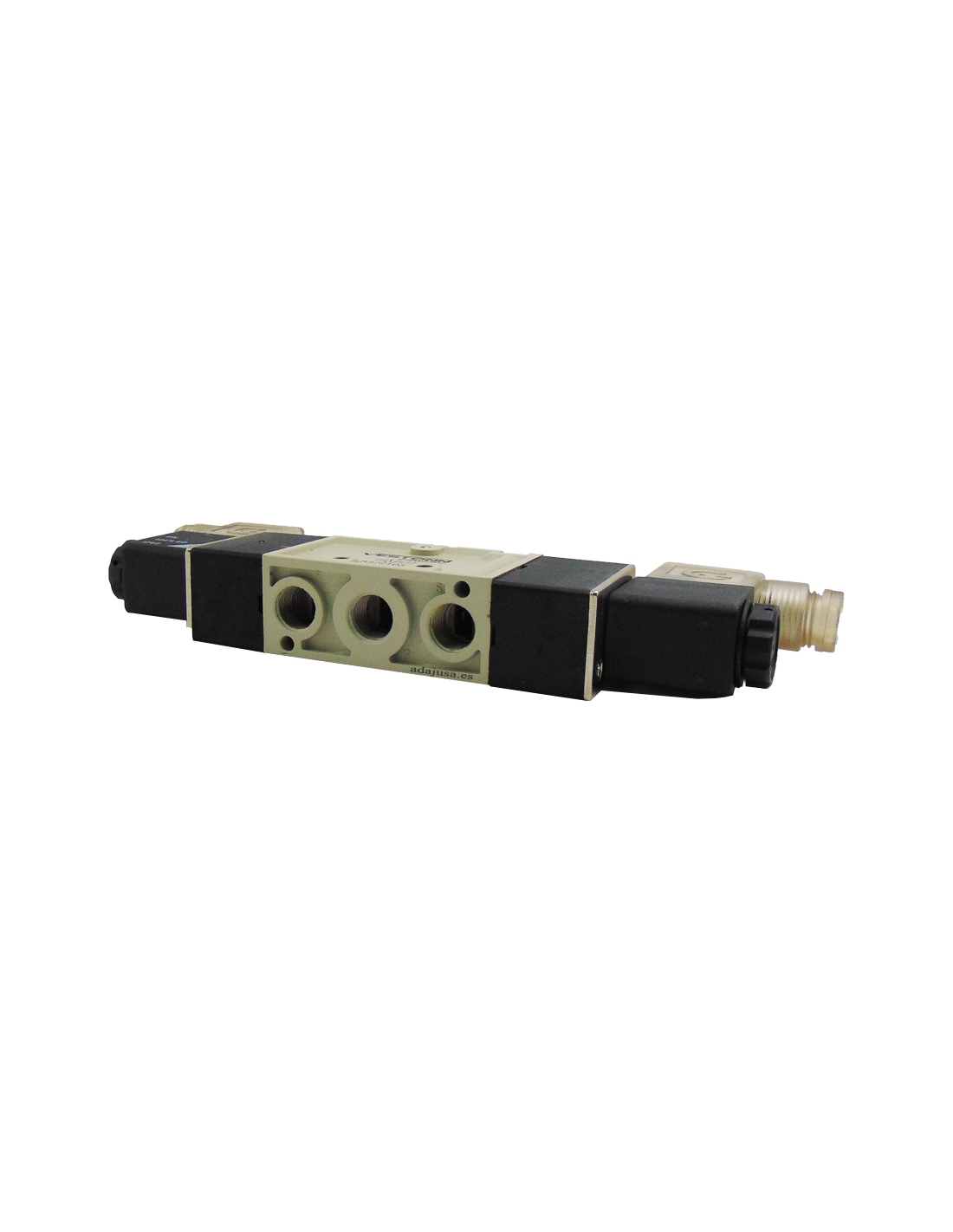

Solenoid valve 1/4 5 bistable vias T3 24Vcc

€68.09 Tax included

€56.27 tax excl.

1/4" 5-way bistable pneumatic valve, 24Vcc operating voltage.

Large flow of passage, exhausts are threaded to 1/4 ", aluminum body, coil size 22 and luminous connector by led. Works with air without lubrication.

Esquema neumático electroválvula 5 vías biestable

Reference: 8322105200
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/4 5-way bistable pneumatic solenoid valve, with 24Vdc coils. For double-effect cylinder control in general and industrial applications. This solenoid valve provides a large airflow and exhaust flow of the same, all the threaded tracks are located at 1/4". Equipped with 22mm coils with 9mm core and luminous connector.

The solenoid valve has manual actuation, push control or interlocking.

The solenoid valve has 2 stable positions, with 2 coils, if one of the coils is activated the cylinder acts, and you remain actuated even if the coil tension disappears, so that the cylinder goes into the resting position, the other coil must be activated, it will remain in the resting position even if the tension in the coil disappears.

The supply of the solenoid valve includes:

  • 1 Bistable 1/4-5/2 solenoid valve.
  • 2 Coils 24Vcc 4W.
  • 2 22mm light connector.

Technical details:

  • Electrovalve reference: 8322105200
  • Supplier: Vestonn
  • Thread type: G 1/4".
  • Exhaust thread type: G 1/4".
  • Configuration: 5 Bistable Ways.
  • Coil voltage: 24Vdc ±10%.
  • Coil power: 4W.
  • Degree of protection: IP65 (DIN40050).
  • Coil temperature rating: Class B.
  • Fluid type: Pressure air, minimum filtration 40om.
  • Lubrication: Not necessary.
  • Working pressure of the solenoid valve: 1.5 to 8 bar.
  • Maximum pressure: 15 bar.
  • Minimum working pressure: 2 bar.
  • Working temperature: -20oC to 70oC.
  • Effective surface: 25mm2.
  • Cauda Coefficient: HP-1.4; Kv-1,211
  • Flow rate at 6 bars p 1 bar: 1350 Nl/min.
  • Activation time: 0.05s.
  • Number of cycles per second: 4.
  • Manual drive: Yes.
  • Weight: 400g.

Dimensiones electroválvulas 1/4 AirTac

Curvas de caudal electroválvulas 4V308

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"
